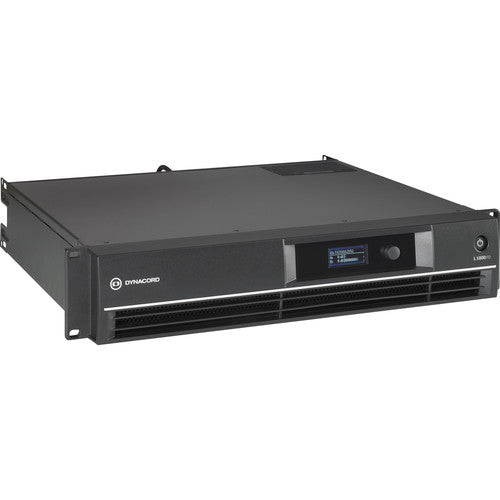

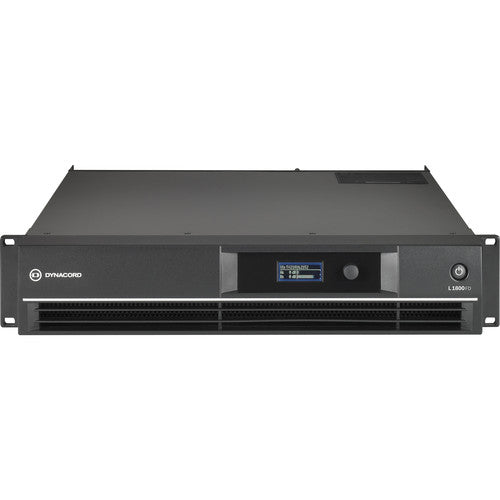

Dynacord L1800FD Digital Forstærker (2x950W, DSP)

(1)Anmeldelser
Kundeservice online
Support 1 Support 2 Support 3
6.599 kr.
Gratis fragt
Forventet levering 2–6 hverdage.
6.599 kr.

Beskrivelse

  • 1800W DSP forstærker
  • Kompakt og ideel til live/studie lyd på farten
  • True 2 Ohm stabilitet
  • FIR Driver teknologi
  • 'Et-knaps' DSP indstilling

Dynacord L1800FD Forstærker 2x650W og DSP

  • Proffesionel DSP forstærker ideel til live-, studie og på farten.
  • Kæmpe 1800W effekt med fantastisk lydperformance.
  • Fuldt integegreret Speaker rocessing med FIR driver teknologi.
  • Gennemført og stabil performance selv ved 2 ohm.
  • Nem og intuitivt 'et-knaps' DSP indstilling.

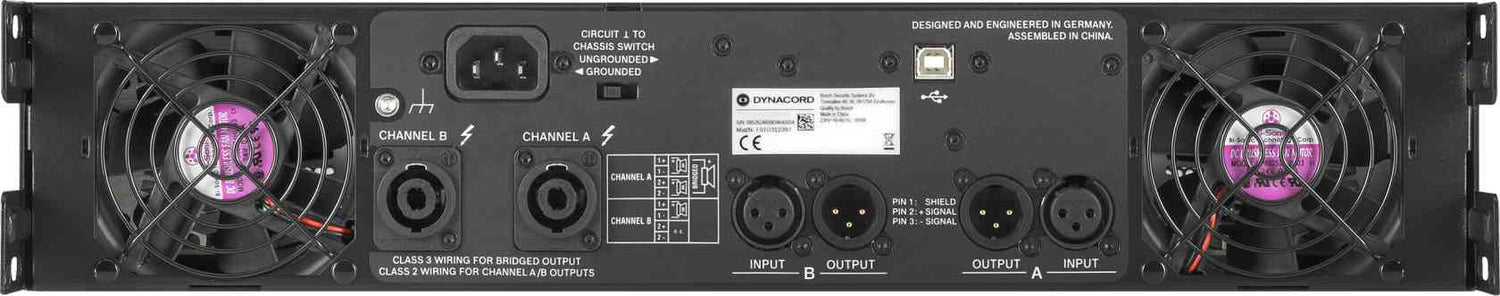

  • Med både balanceret XLR- ind og ud.
  • Måler: 483 x 88 x 462.4 mm
  • Vejer: 15.2 kg

Tekniske specifikationer

Load Impedance 2 Ω 2.6 Ω 4 Ω 8 Ω
Maximum Output Power, Single Channel 1600 W 1300 W 950 W 480 W
Maximum Output Power, Dual Channel 1400 W 1200 W 850 W 450 W
Maximum Output Power, Bridged 2800 W 1700 W



Maximum RMS Voltage Swing THD = 1%, 1 kHz 65.1 V
Voltage Gain Ref.1 kHz 32.0 dB
THD at 600 W/4 Ω MBW = 80 kHz, 1 kHz < 0.05%
IMD-SMPTE, 60 Hz, 7 kHz < 0.1%
DIM30, 3.15 kHz, 15 kHz < 0.05%
Maximum Input Level +21 dBu
Crosstalk ref. 1 kHz, at 100 W/4 Ω < -80 dB
Frequency Response, ref. 1 kHz 10 Hz to 21 kHz (±1 dB)
Input Impedance, Active Balanced 20 k Ω
Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power @ 8 Ω >105 dB
Output Noise, A-weighted < -68 dBu
Output Stage Topology Class AB
Power Requirements 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
Power Consumption 1/8 Maximum Output Power @ 4 Ω 700 W
Mains Fuse 240 V/230 V: T12AH; 120 V/100 V: T25AH
Protection Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay
Cooling Front-to-rear, 3-stage-fans
Ambient Temperature Limits +5°C to +40°C (40°F to +105°F)
Safety Class I
Color Black
Dimensions (W x H x D), mm 483 x 88 x 462.4
Weight 15.2 kg (33.5 lb)
Signal Processing FIR filters, audio limiters, output and array** delay, 10-band** user PEQ, 5-band array PEQ** per channel, load impedance
Remote Control SONICUE sound system software **
Accessories RMK15 (rear rack mount kit)

Brand: Dynacord
SKU: DYNL1800FD
EAN: 8717332986729
Vægt: 15.0 kg
