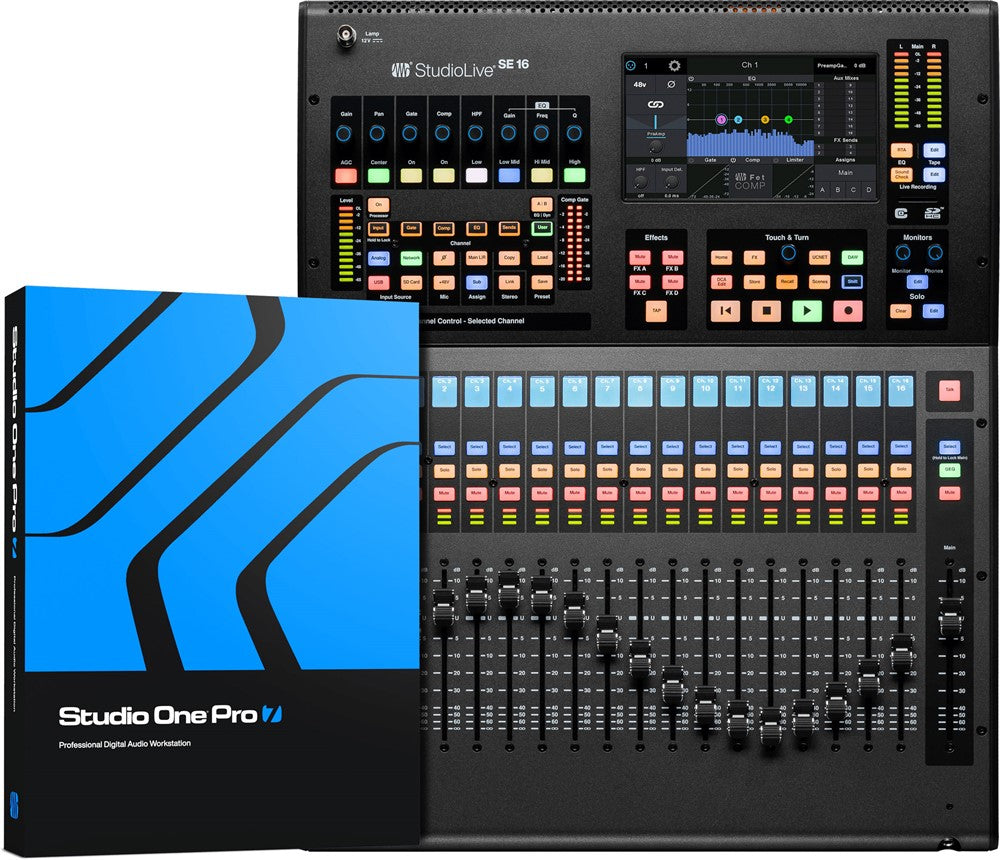

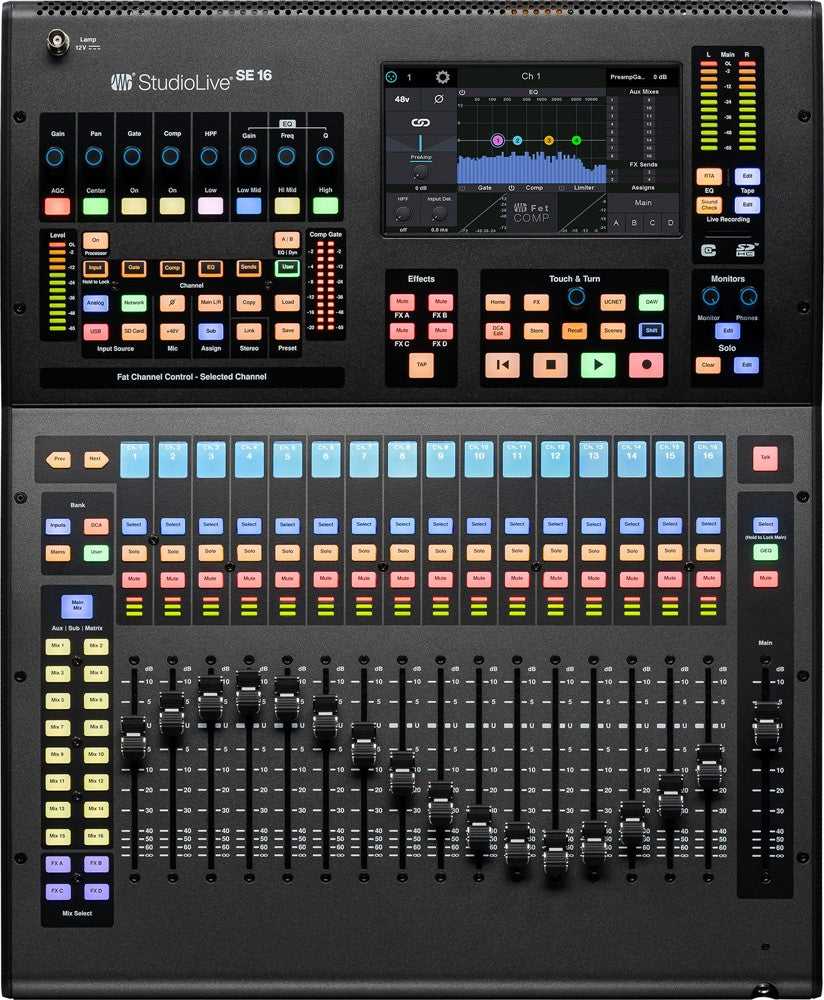

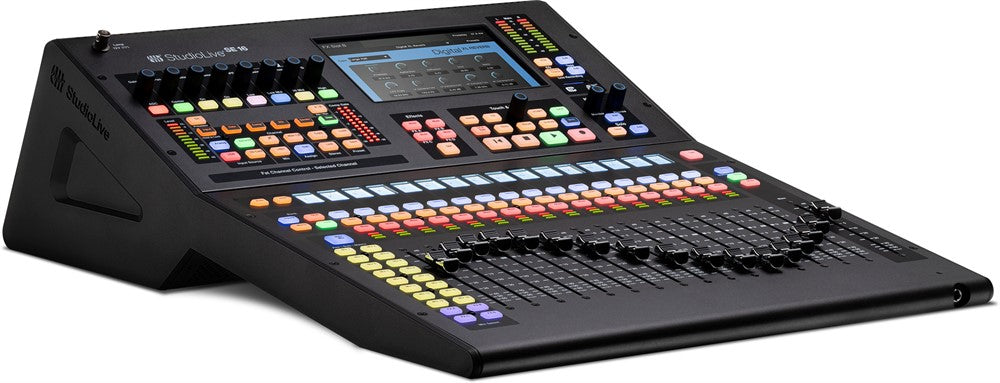

PreSonus StudioLive Series III SE 16

KEY FEATURES

• Portable, rack-mountable, and flexible 40-channel digital console available with 26 mix buses, integrated recording, advanced audio networking, and a complete professional software suite.
• Flexible onboard 16 mic/line inputs with recallable XMAX preamps, 10 mix outputs, and dedicated Main LR outputs plus a Mono sum output.
• Take charge of your mix with 16 FlexMixes (aux mixes, subgroups, or matrix mixes), 4 dedicated FX mixes, 4 dedicated subgroups, and 24 DCA Groups.
• Milan-certified AVB audio networking ecosystem makes it easy to connect PreSonus NSB stage boxes, EarMix 16M personal monitor mixers, other Studiolive Series III mixers, and AVB-D16 Dante bridge.
• Continuously bidirectional 64x64 USB 2.0 interface with deep integration and included PreSonus Capture multitracking software with automated Virtual Soundcheck.
• 7 State-Space modeled EQ and 8 vintage-inspired compressors options available on every input and bus

APPLICATIONS

• Live Performance
• Installed Sound
• House of Worship
• Studio Recording
• Touring
• Corporate
• Broadcast
• Theater

40-channel digital console mixer with Quad-core FLEX DSP engine. 17 touch-sensitive motorized faders. 16 XMAX mic preamps, 16 FlexMixes, 4 Subgroups and Fixed fat channel. 7 EQs and 8 compressors. 64x64 Milan-certified AVB audio networking. 64x64 USB 2.0 audio interface. 34x34 SD recorder. Studio One Pro and Capture Multitrack software included.

Small digital mixer. Big power.

A 40-channel powerhouse packed inside a portable, rack-mountable frame, the StudioLive SE 16 is a compact digital mixer that can easily be expanded from 16- to 36-input applications with the click of an Ethernet cable. Featuring 16 studio-grade, fully recallable, XMAX-R preamps and vintage-style EQ and compression options on every channel and bus, the StudioLive SE 16 makes your mixes sound better, faster. Managing large channel counts has never been easier thanks to 16 FlexMixes that can be configured as subgroups, auxes, or matrix mixes on a per mix basis. Matrix mixes include all 40 input channels and every bus making it easy to create the perfect front- and side-fill mixes for large venues or producer mixes for broadcast applications. You also get 24 DCA groups, 4 dedicated subgroup mixes, and 4 FX mixes, each with a stereo return and dedicated processing with lush reverbs and delays.

When you’re ready to integrate backing tracks, record your show, or mix your next album, the StudioLive SE 16 has you covered with an integrated, continuously bidirectional 64x64 USB 2.0 audio interface and onboard 34x34 SD recorder plus a complete suite of integrated software that features both Capture multitracking and virtual soundcheck software as well as a perpetual license of Studio One Pro. Each channel can easily switch between analog, USB, SD, and AVB sources, making integrating your analog and digital gear easier than ever before.

More than a mixer, StudioLive SE 16 is part of a complete ecosystem of hardware and software. Remotely control your mixer or dial in

an Offline mix with Universal Control from your computer or tablet. Launch PreSonus Metro and you can control your mixer over the internet from anywhere in the world with real-time audio monitoring. Built-in, Milan-certified AVB audio networking, makes it easy to integrate with stage boxes, personal monitor mixers, switches,

and powerful accessories like the AVB-D16 AVB-to-Dante bridge that lets you add 16x16 Dante networking when you need it.

Fat Channel plug-ins bring your mix to life for stage or studio.

The dynamic Fat Channel on the StudioLive SE 16 digital mixer puts critical EQ and dynamics processing beneath your fingertips while giving you fast access to every parameter. The 21 included vintage EQ and classic compressor Fat Channel plug-in models can be inserted on every input and bus.
