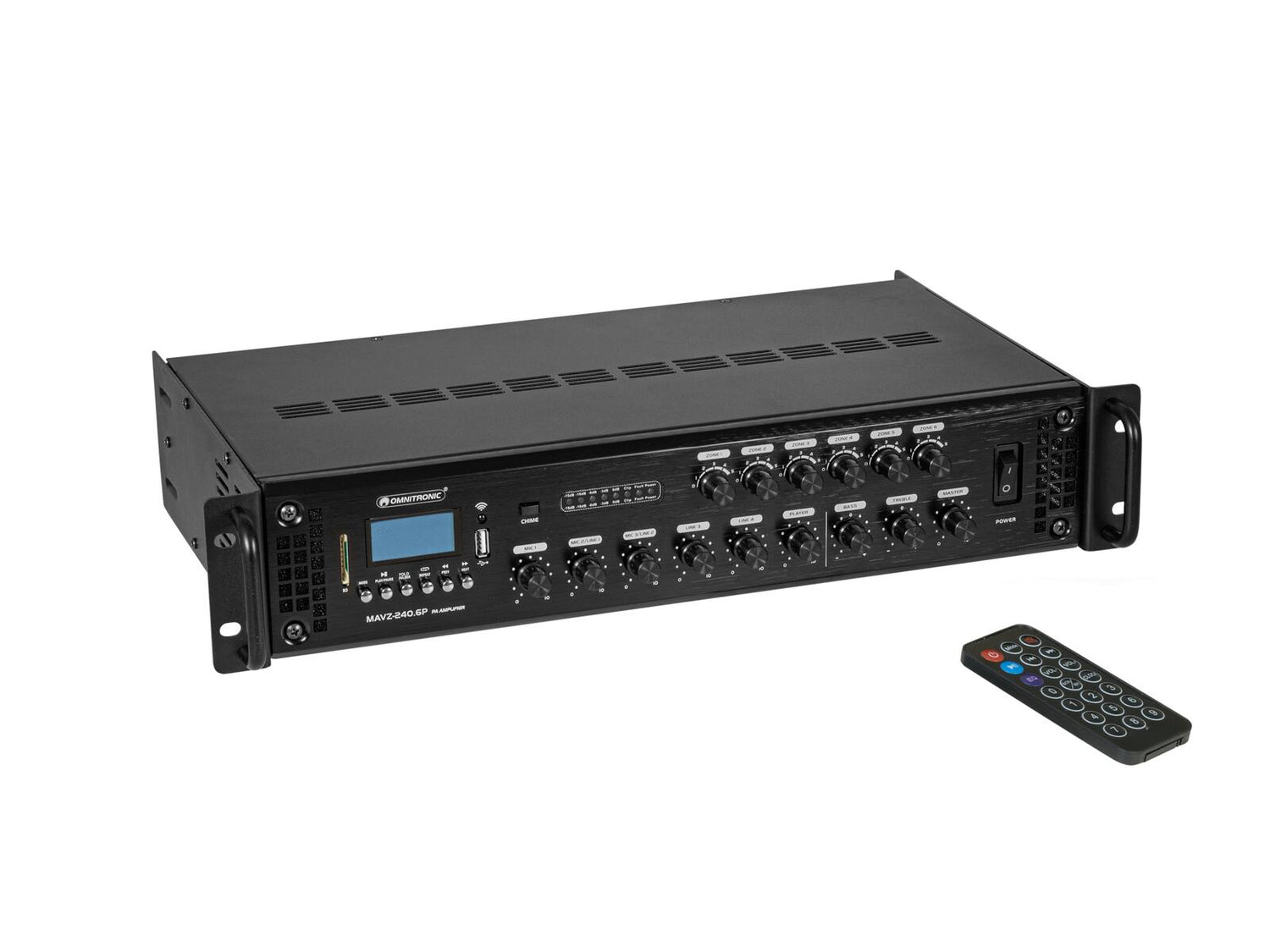

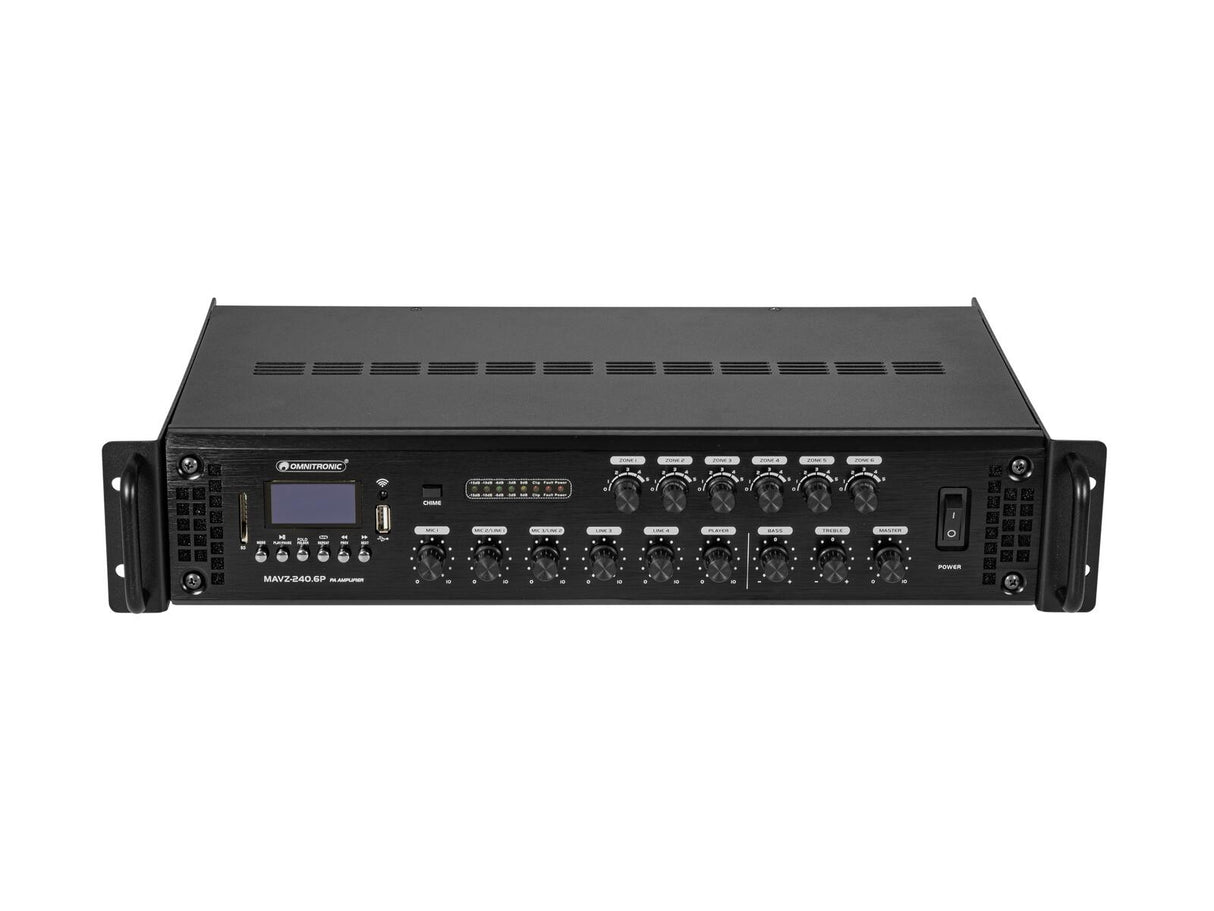

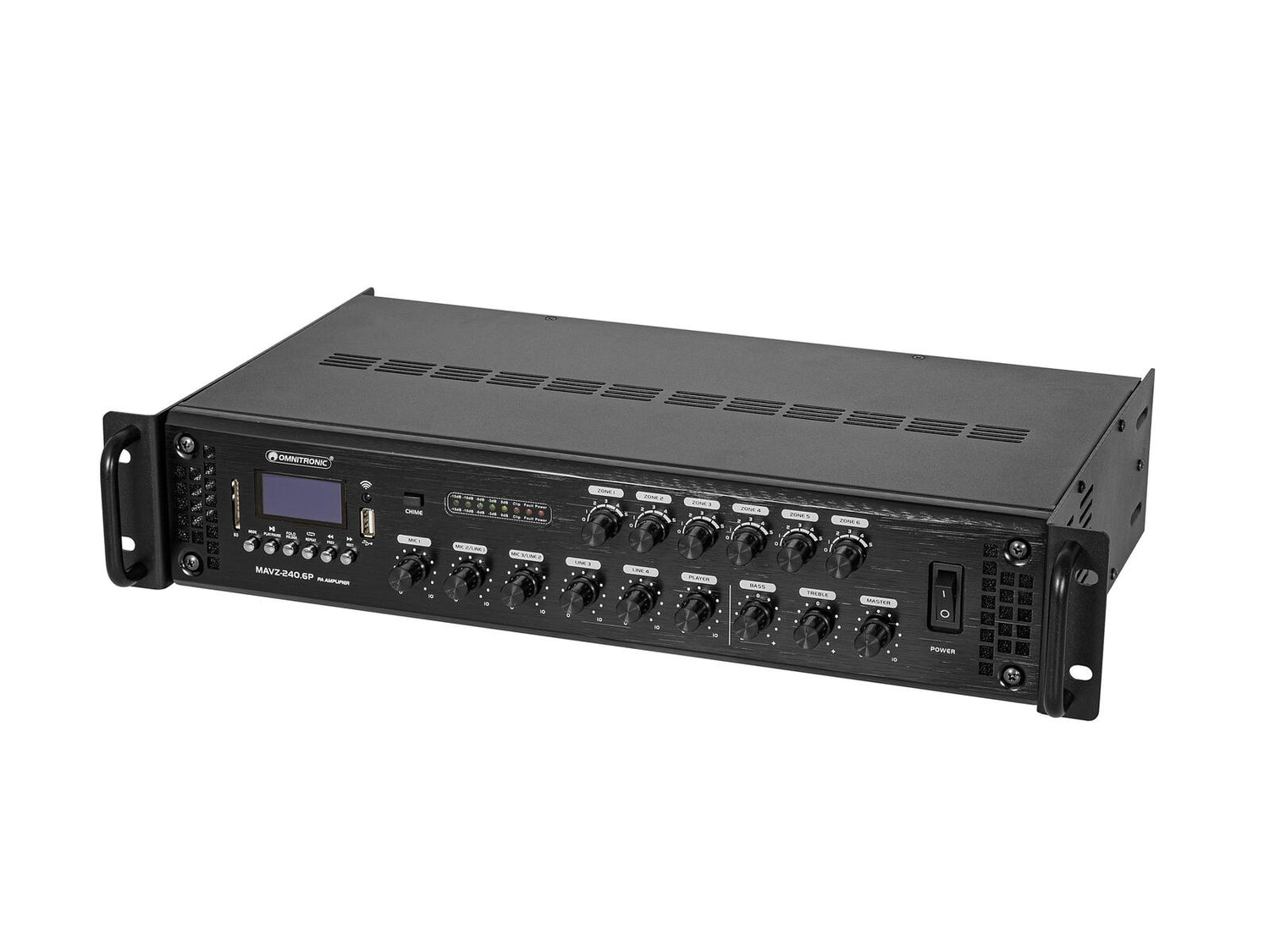

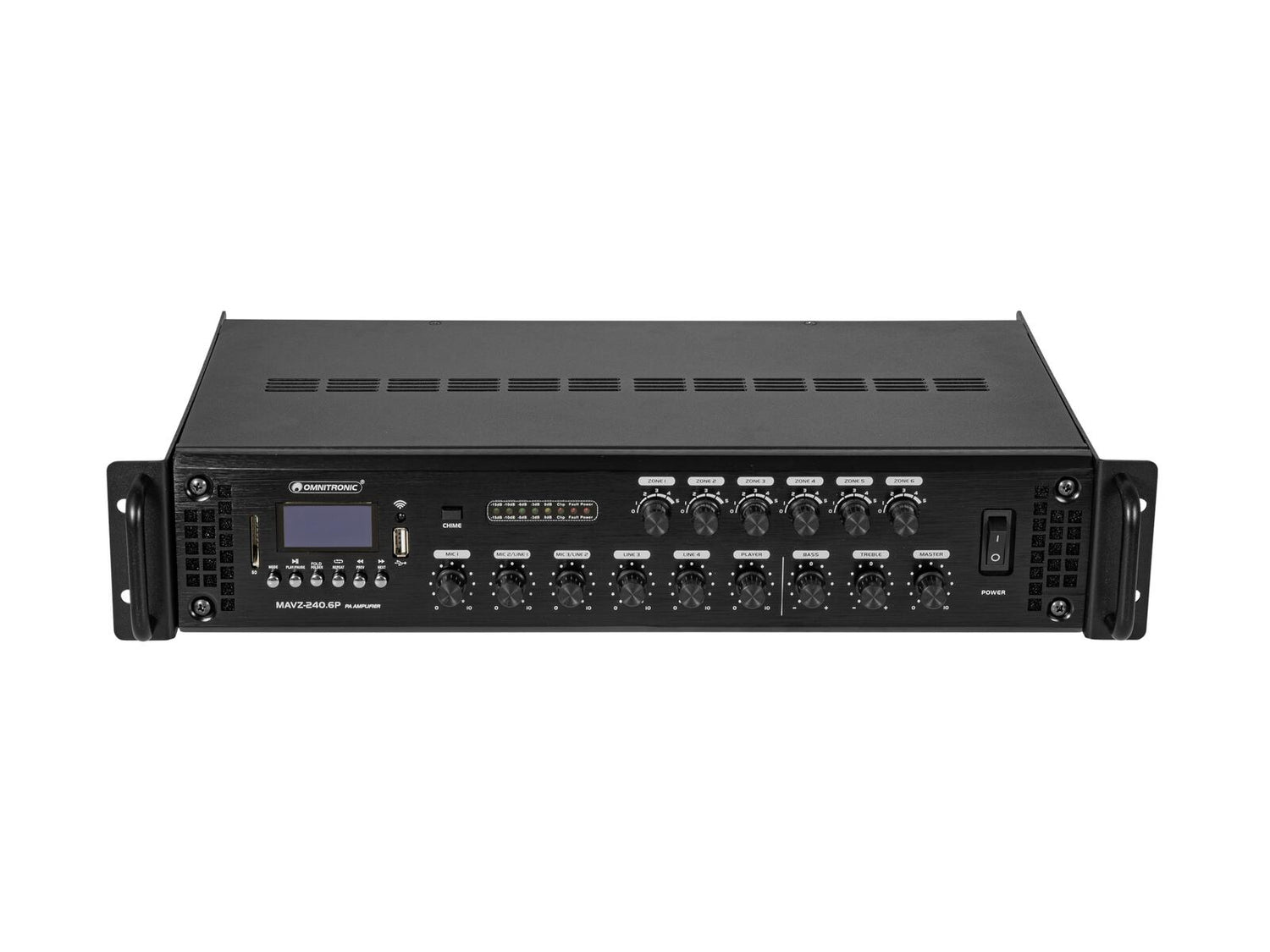

OMNITRONIC MAVZ-240.6P er en PA-mixerforstærker med en samlet udgangseffekt på 240 W RMS og seks 100 V-zoneudgange. Hver zone har individuel lydstyrkeregulering i fem trin, så samme musik og tale kan fordeles med forskellig styrke i eksempelvis restaurant, reception og fællesarealer.
Den indbyggede afspiller understøtter MP3-filer fra USB og SD-kort samt trådløs musikafspilning via Bluetooth. Afspilleren kan betjenes fra frontpanelet eller med den medfølgende IR-fjernbetjening.
Tre mikrofonindgange og to separate RCA-lineindgange giver fleksible tilslutningsmuligheder. Mikrofonkanal 1 har omskiftelig 48 V phantom power og prioritetsfunktion, som automatisk sænker de øvrige lydkilder under annonceringer. Mikrofonkanal 2 og 3 kan skiftes til lineniveau.
En indbygget gong, bas- og diskantregulering samt LED-niveaumåler gør den daglige betjening enkel. Forstærkeren har desuden direkte udgange til 70 V-, 100 V- og lavimpedante højttalere og passer i et 19" rack med 2U.
Funktioner og fordele:
- Samlet udgangseffekt på 240 W RMS.
- Seks 100 V-zoner med individuel lydstyrkeregulering i fem trin.
- Indbygget MP3-afspiller med USB- og SD-korttilslutning.
- Bluetooth til trådløs musikafspilning.
- Mappevalg, gentagelsesfunktioner og tilfældig afspilning.
- Tre mikrofonindgange med separate lydstyrkeregulatorer.
- Mikrofonkanal 1 med 48 V phantom power og prioritetsfunktion.
- Mikrofonkanal 2 og 3 kan skiftes mellem mikrofon- og lineniveau.
- To RCA-lineindgange med separate lydstyrkeregulatorer.
- Indbygget gong samt fælles bas-, diskant- og masterregulering.
- RCA-lineudgang til videreføring af det samlede mix.
- IR-fjernbetjening til afspilleren medfølger.
- 19" rackmontering i 2U.
Features
- 6-zone mono PA mixing amplifier
- 240 W RMS total output power
- 6 dedicated 100 V zone outputs with individual 5-step volume controls
- Common audio mix distributed across all zones
- Integrated USB/SD MP3 player and Bluetooth audio streaming
- Folder navigation, repeat functions and random playback
- 3 microphone channels with individual level controls
- Microphone channel 1 with switchable phantom power and priority function
- Microphone channels 2 and 3 switchable to line level
- 2 dedicated RCA line inputs with individual level controls
- Switchable announcement chime
- Master volume, bass and treble controls
- 5-segment LED level meter
- IR remote control for the audio player included
- 19-inch rack mounting, 2U

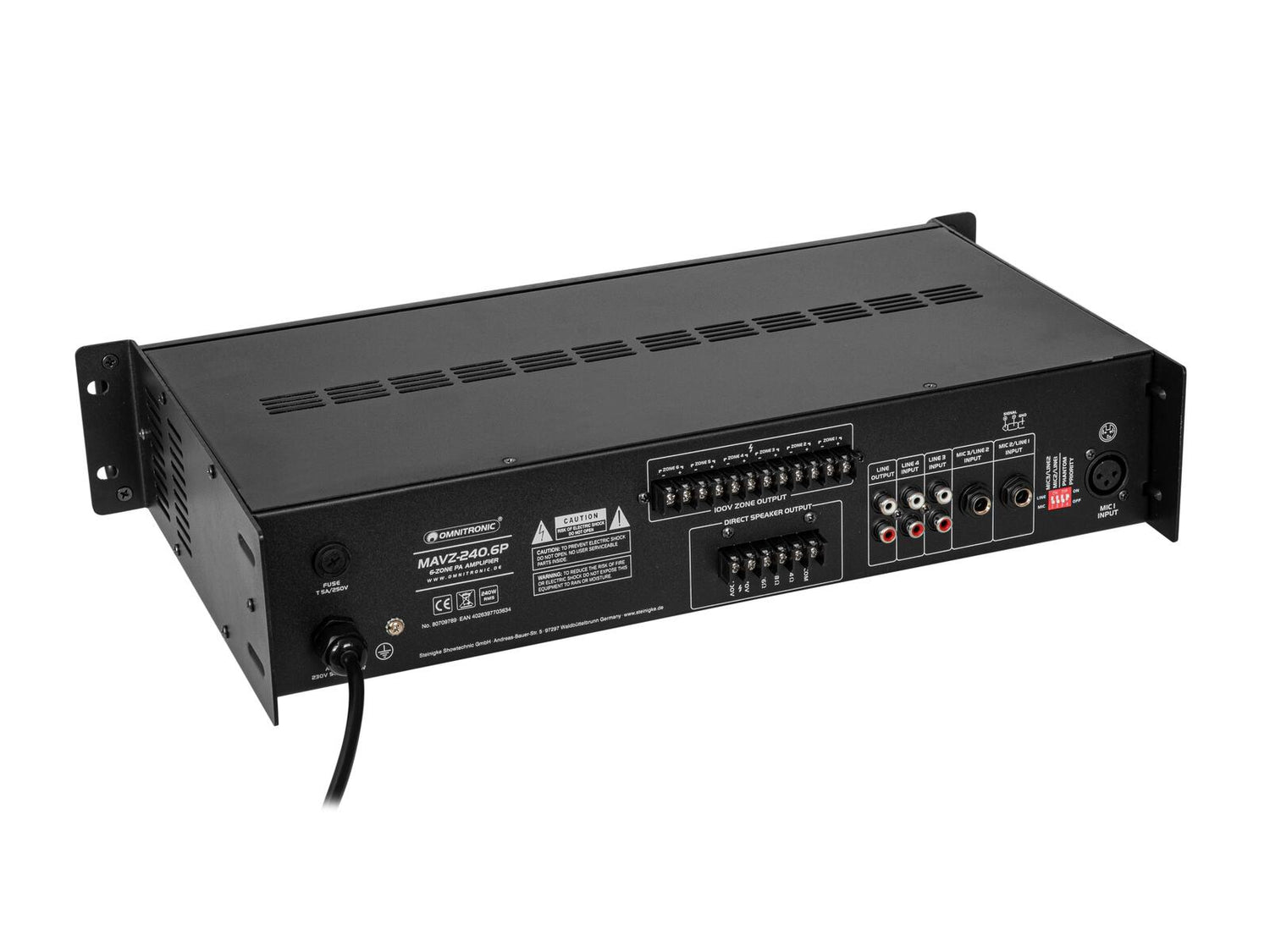

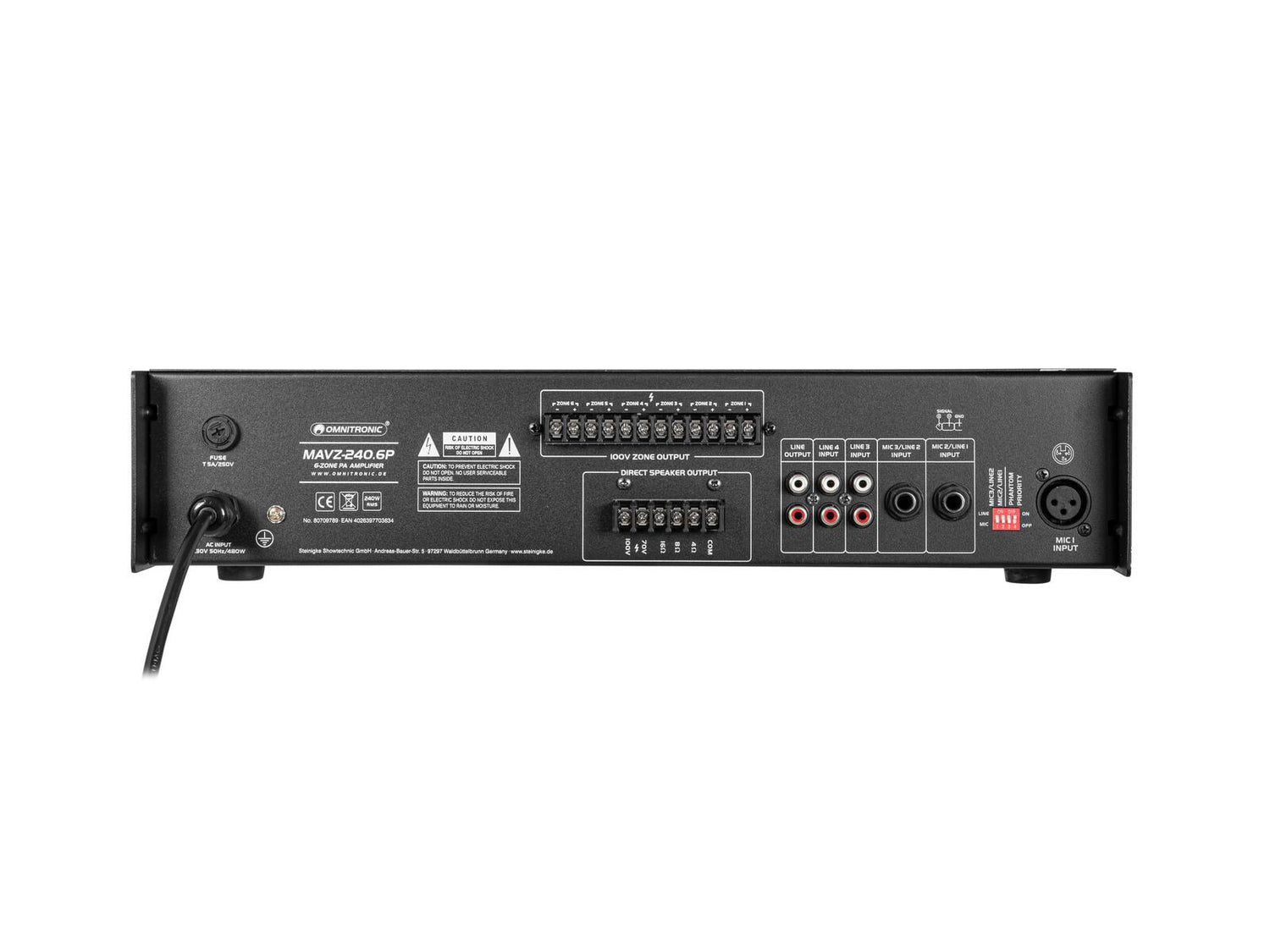

Audio and Connection Specifications
- Amplifier circuitry: Class AB
- Total rated output power: 240 W RMS, shared across the connected speaker outputs
- Zone outputs: 6 x 100 V with individual 5-step volume controls
- Direct speaker output options: 70 V, 100 V, 4 ohms, 8 ohms and 16 ohms
- Speaker connections: Screw terminals
- Microphone channel 1: Balanced XLR input
- Phantom power: 48 V DC, switchable on microphone channel 1
- Microphone priority: Switchable on microphone channel 1
- Microphone/line channels 2 and 3: 2 x unbalanced 6.3 mm jack inputs with mic/line selection
- Dedicated line inputs: 2 x stereo RCA pairs, LINE 3 and LINE 4
- Line output: 1 x RCA pair carrying the mixed signal
- Frequency range: 50 Hz–18 kHz
- Microphone signal-to-noise ratio: Greater than 75 dB
- Line signal-to-noise ratio: Greater than 85 dB
- Total harmonic distortion: Less than 0.5% at 1 kHz
- Tone controls: Master bass and treble
Audio Player Specifications
- Playback sources: USB, SD card and Bluetooth
- Supported file format: MP3
- Maximum storage capacity: 32 GB
- Supported file system: FAT32
- Maximum number of files: 999
- Playback functions: Folder navigation, repeat and random playback
- Player control: Front-panel buttons and included IR remote control
- Remote control battery: 1 x 3 V CR2025, included
General Specifications
- Power supply: 230 V AC, 50 Hz
- Power consumption: 480 W
- Protection class: Class I
- Power connection: Fixed mains cable with earthed plug
- Fuse: T 5 A, 5 x 20 mm, replaceable
- Cooling: Fan cooling
- Protection: Power-on delay, overvoltage and short-circuit protection
- Status indicators: Power, fault, clip and output level
- Color: Black
- Rack format: 19-inch, 2U
- Dimensions (W x D x H): 483 x 320 x 92 mm
- Weight: 6.9 kg
- Manufacturer item number: 80709789
- EAN: 4026397703634
