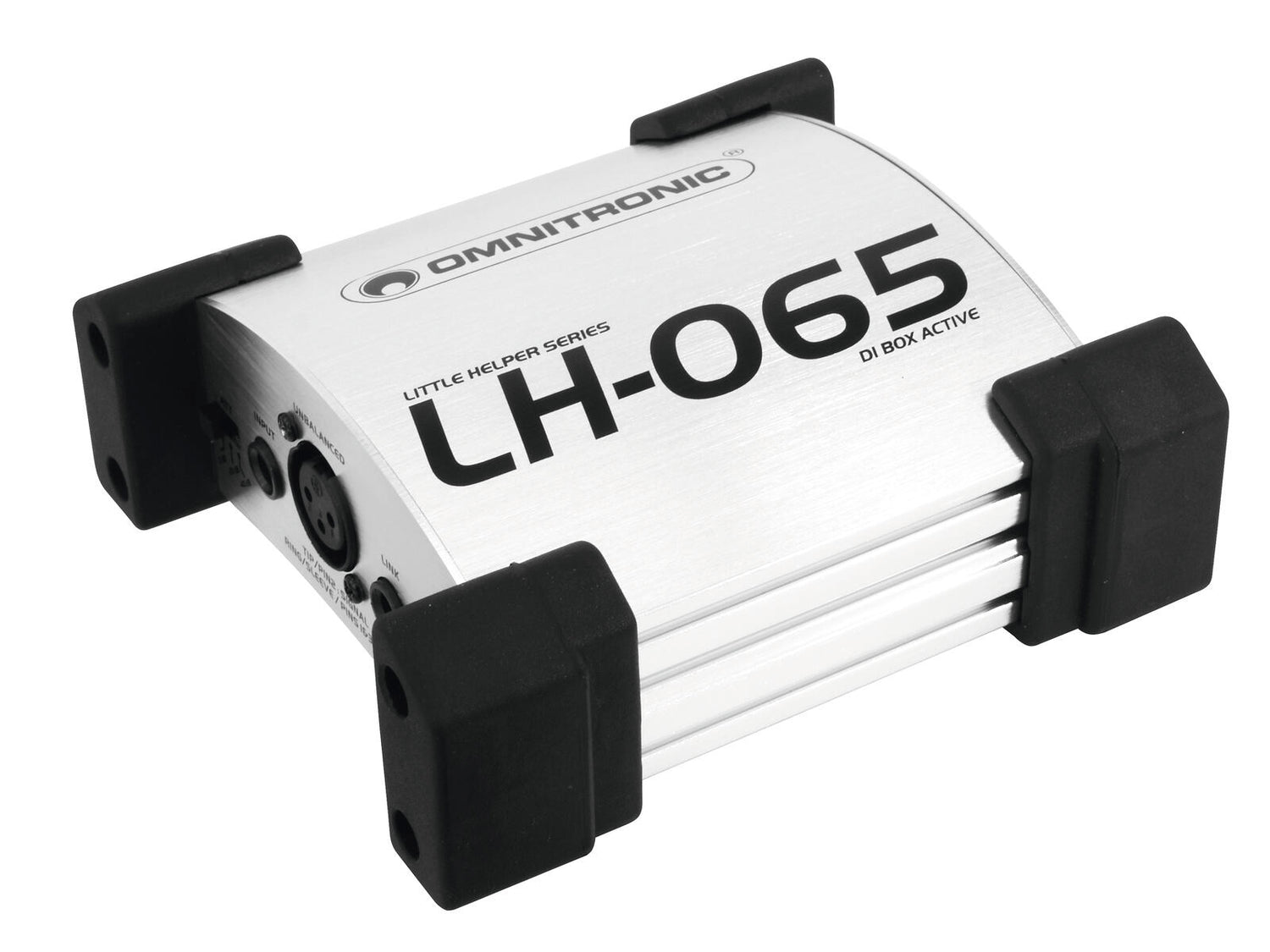

OMNITRONIC LH-065 DI Box active
1
af
4
Indlæser...
579 kr.
Stk. pris
/
Ikke tilgængelig
Inkl. moms
Fragt 39 kr.
Betalingsmetoder accepteret
Beskrivelse
Beskrivelse
1-channel DI box, active
- 1 high-impedance signal input via XLR or 6.3 mm jack connectors
- 1 low-impedance XLR output
- 6.35 mm jack input, and output
- Converts an unbalanced line input (e.g. instruments) into a balanced XLR output for connecting a mixer
- Switchable input attenuation: 0 dB, -20 dB, -40 dB
- Cables can be routed under the housing
- For application areas such as: Installation; mobile use; mobile djs / entertainer
Scope of delivery
- 1 x device
- 1 x user manual
- 1 x battery
| Protection class: | Protection class III |
| Battery: | 1 x 9.0 V E block 6F22 zinc carbon included |
| Frequency range: | 10 - 30000 Hz |
| THD: | <0.5 % at 1 kHz |
| Impedance: | Input: 470 kOhm Output: 600 Ohm |
| Input attenuation: | 0 dB, -20 dB, -40 dB; switchable |
| Housing color: | Silver |

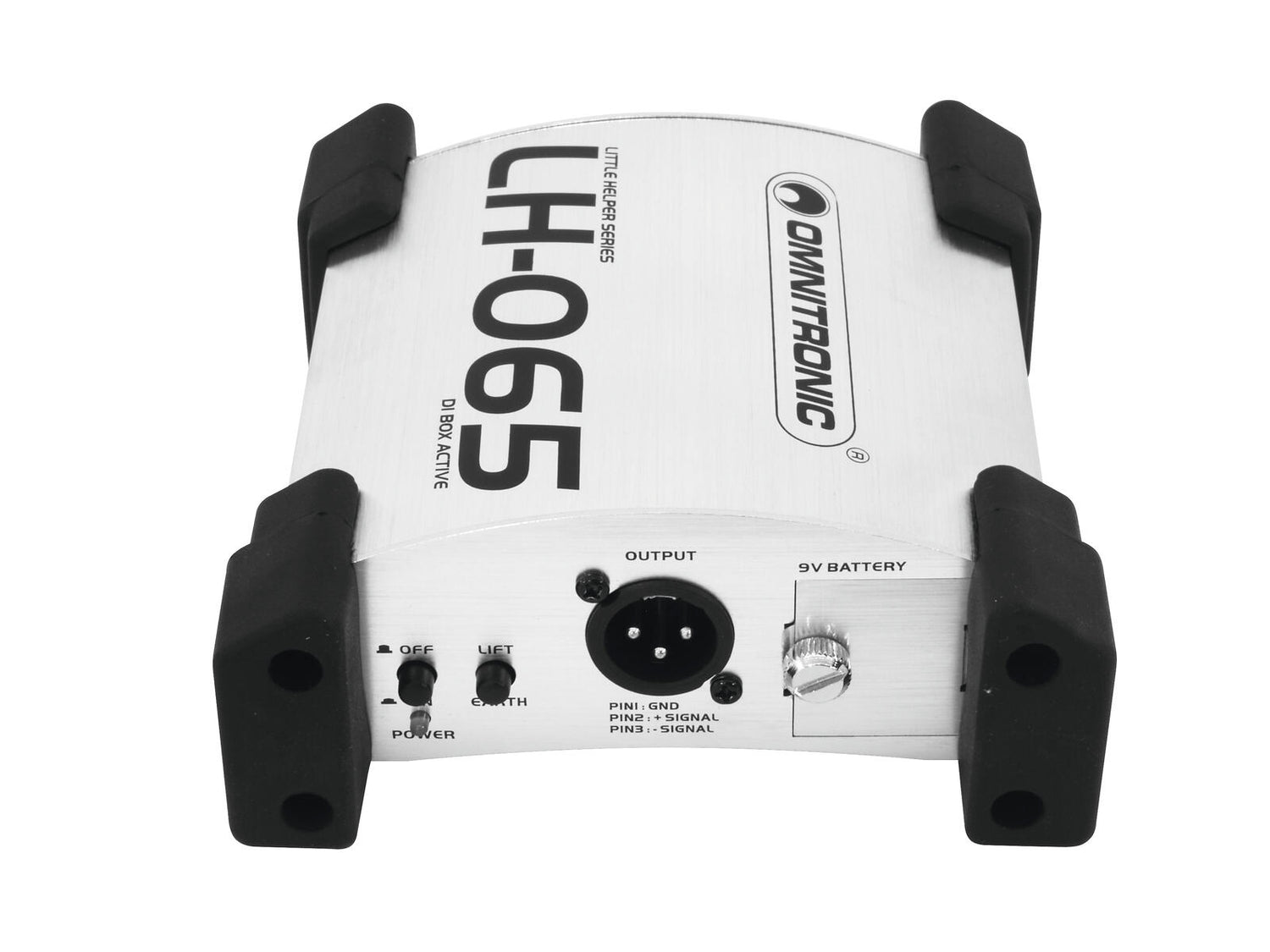

| Control elements: | Power switch, groundlift selector, Input sensitivity switch |

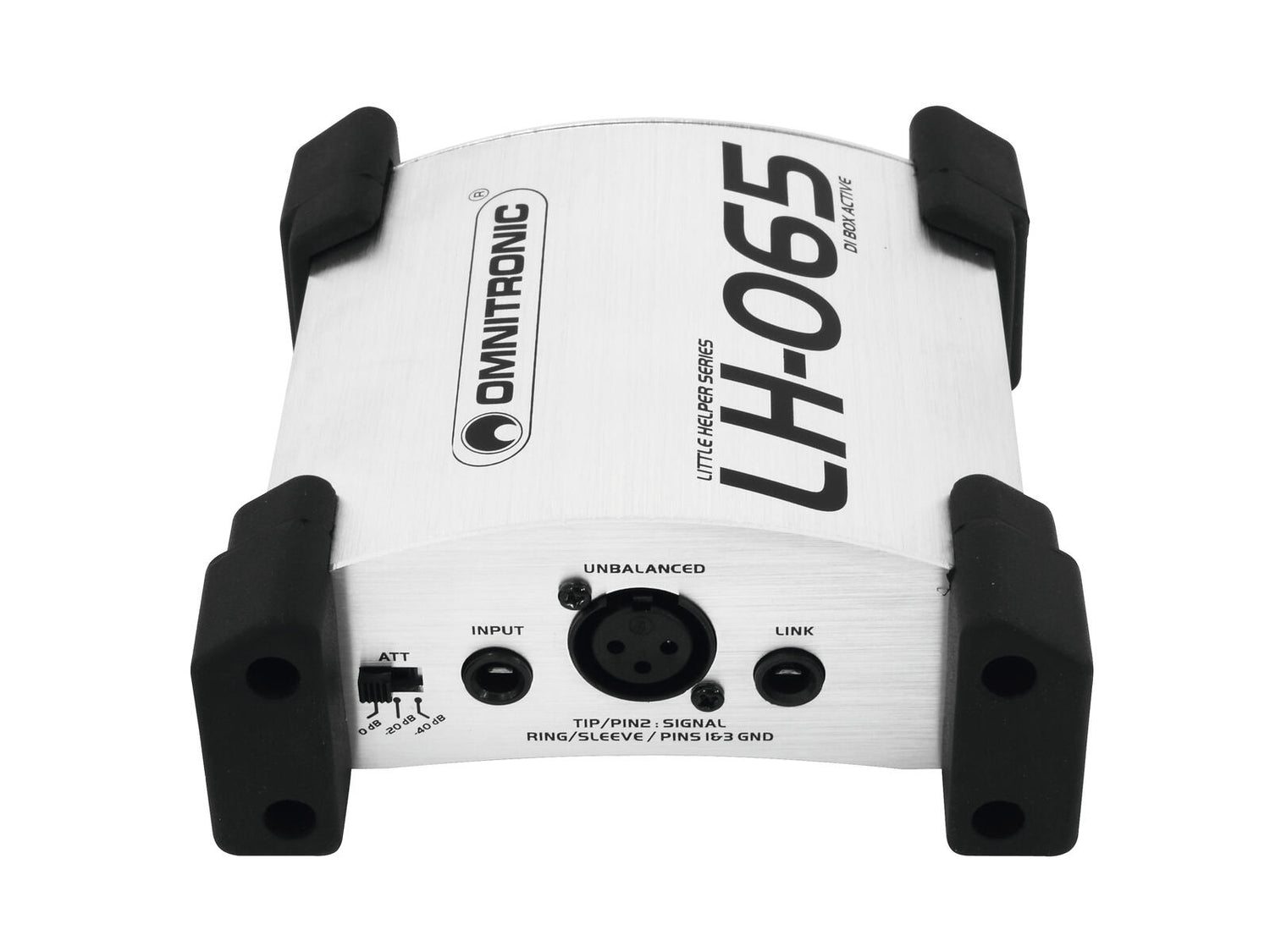

| Connections: | Input: 1 x 3-pin XLR Input: 1 x 6.3 mm plug (unbal.) Link: 1 x 6.3 mm plug (unbal.) Output: line via 1 x 3-pin XLR |
| Max. level: | Output: +6 dBu |
| Dimensions: | Width: 15 cm Depth: 13 cm Height: 6 cm |
| Weight: | 0.54 kg |
