Beskrivelse
Beskrivelse
- DI boks udført i aluminium og stål med hjørnebeskyttere i gummi.
- Internt 9 Volt batteri der automatisk slår fra når 48V Phantom power benyttes.
- Ekstremt lavt strømforbrug.

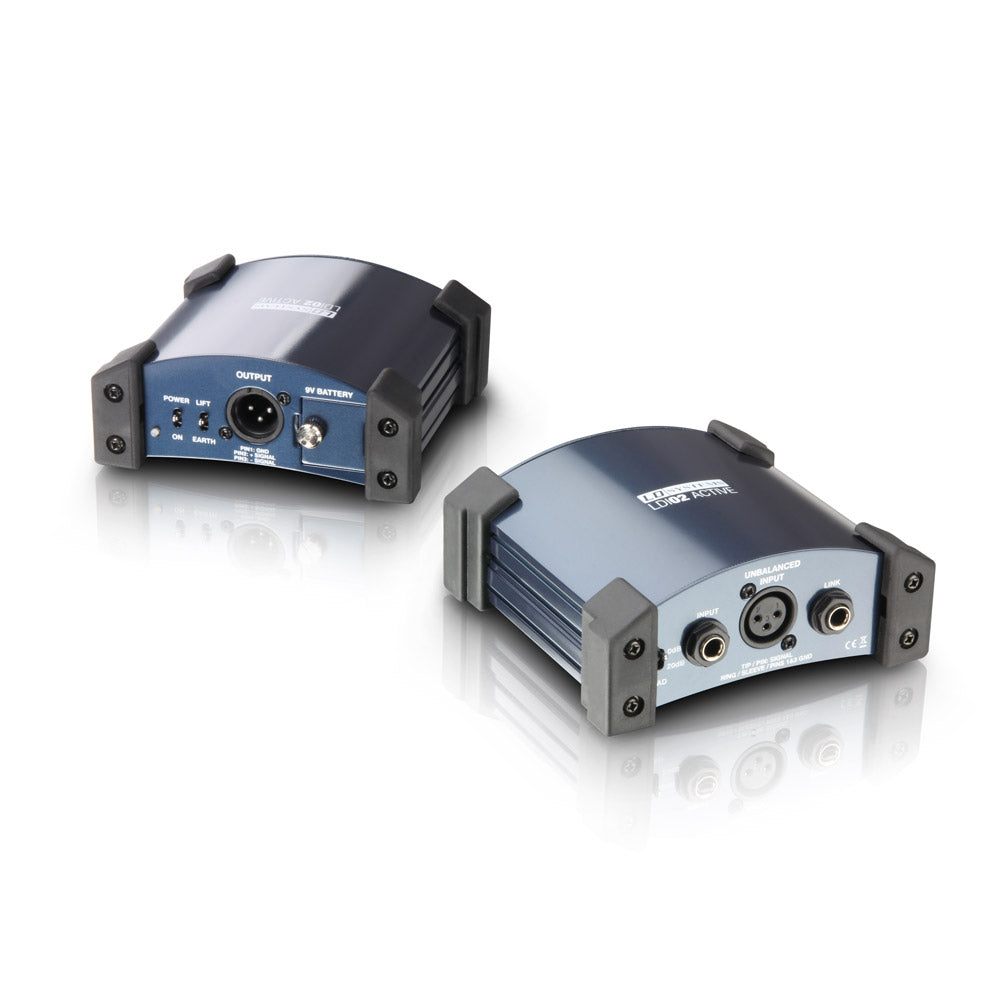

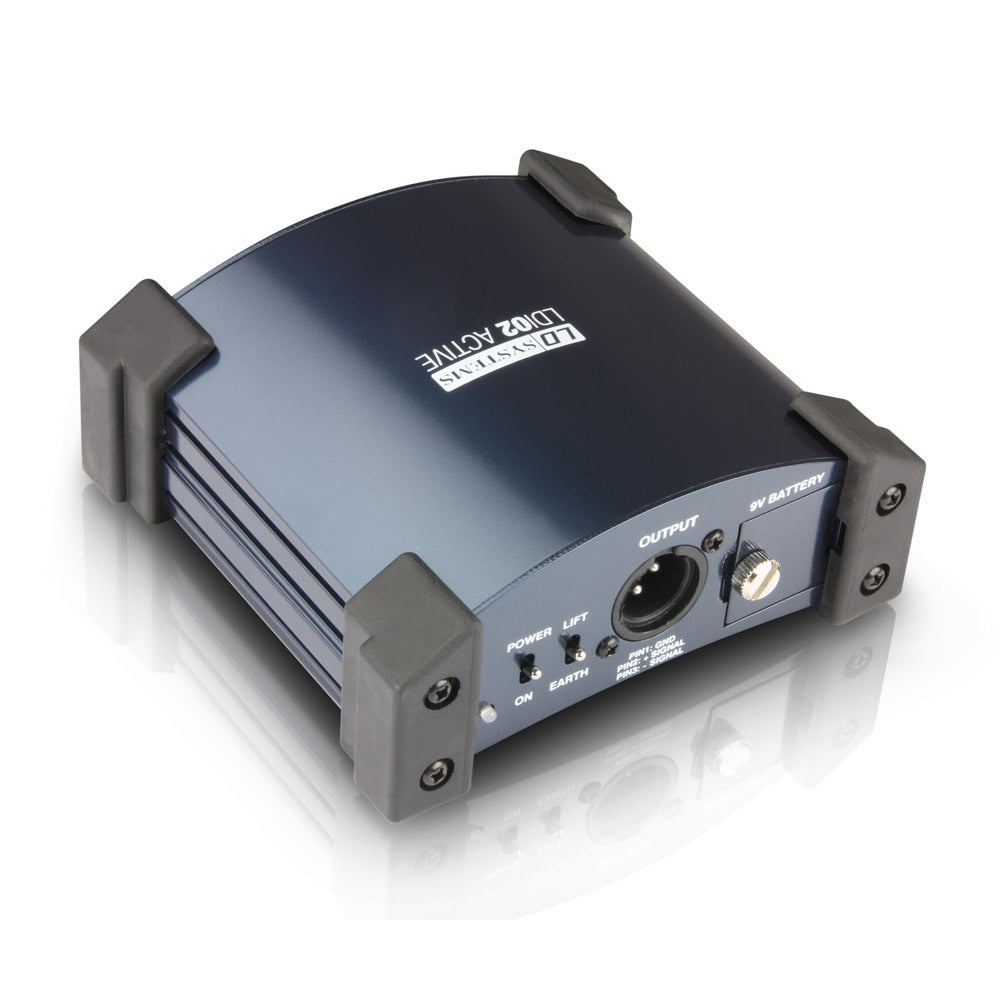

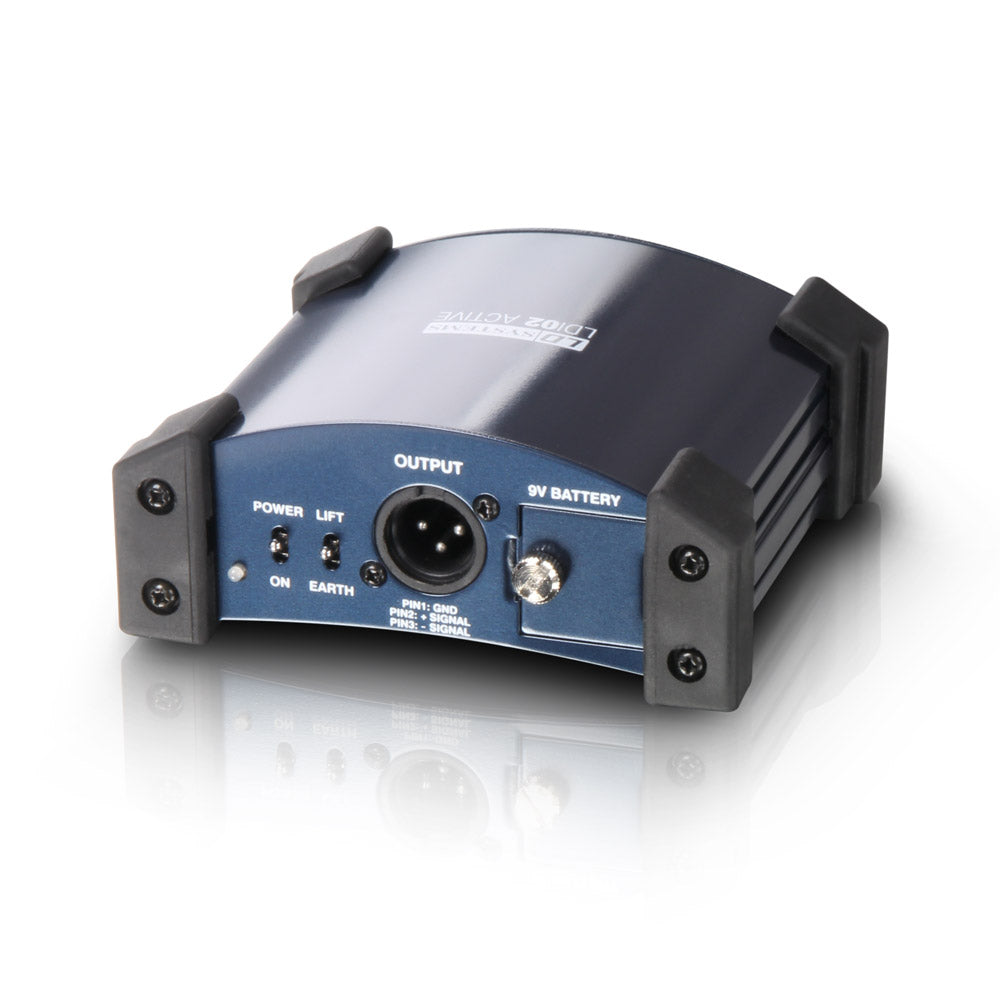

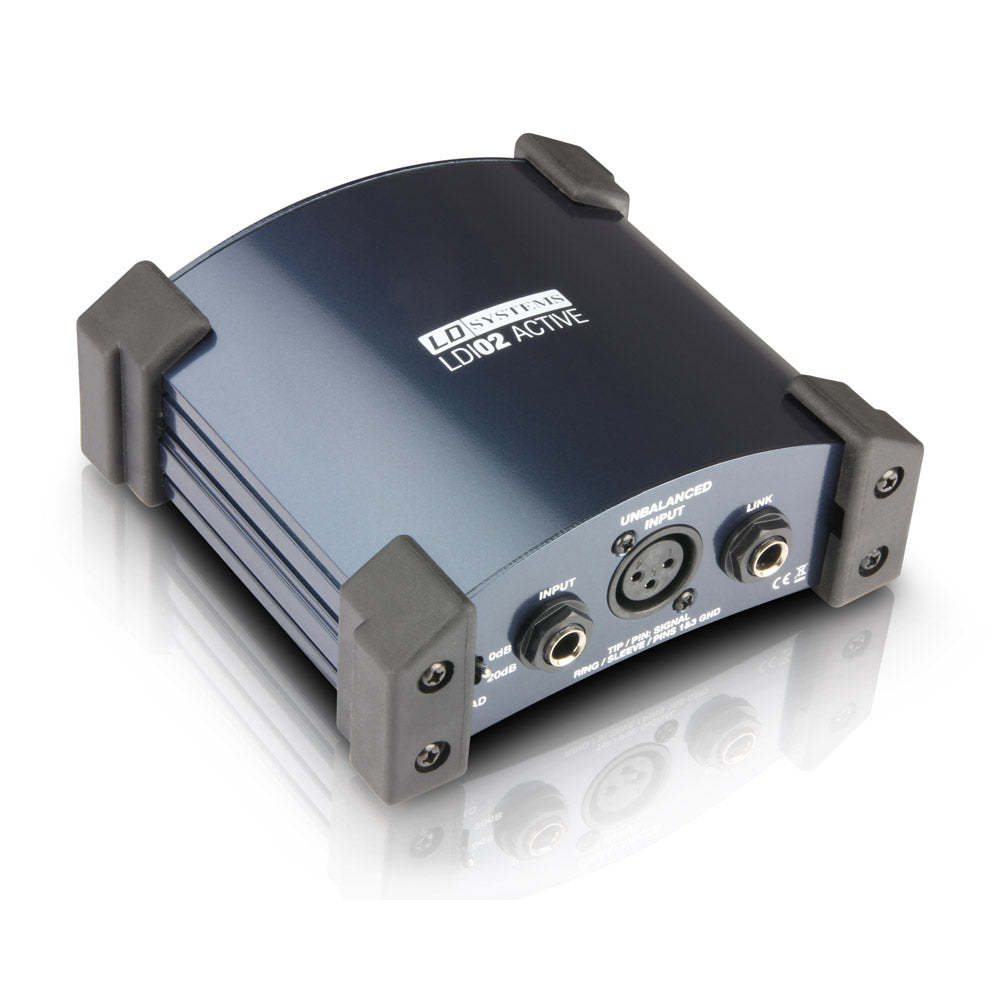

LD Systems LDI02 Aktiv DI Boks
Active DI box in sturdy metal housing (aluminium/steel) with corner protectors, silver-blue/ metallic, internal 9 V battery (indicator blinks during operation) which is automatically switched off when phantom power is used (LED indicator is on continuously).
Extremely low battery usage. Battery: 9 V block (not included).
Also known as: LDI02, LDI-02
Tekniske specifikationer
Tekniske specifikationer
| Product number: | LDI02 |
|---|---|
| Product type: | DI box |
| Type: | active |
| Channels: | 1 |
| Inputs: | 2 |
| Input connectors: | 6.3 mm Jack, XLR |
| Max. input level: | + 10 / + 30 dBu |
| Input impedance: | 1 MOhm(s) |
| Outputs: | 1 |
| THRU outputs/channel: | 1 |
| Output connectors: | XLR |
| Frequency response: | 20 - 20,000Hz |
| THD: | < 0,0015 % @ 1 kHz |
| Display: | Power |
| Controls: | Power, ground lift |
| Operating voltage: | +48 V phantom power, 9 V block |
| Cabinet material: | metal |
| Cabinet / Housing surface: | painted |
| Width: | 135mm |
| Depth: | 128mm |
| Height: | 53mm |
| Weight: | 0,7kg |
