• Den ultimative analoge delay fra Boss
• Klassisk varm og mættet lyd kombineret med moderne features
• Køres af 8 BBDs (Bucket Brigade Devices) via digital CPU kontrol
• 100 % analogt signal hele vejen
• 12 unikke modes, 4 indbyggede hukommelser, 127 via MIDI
• Tap tempo, carryover funktion

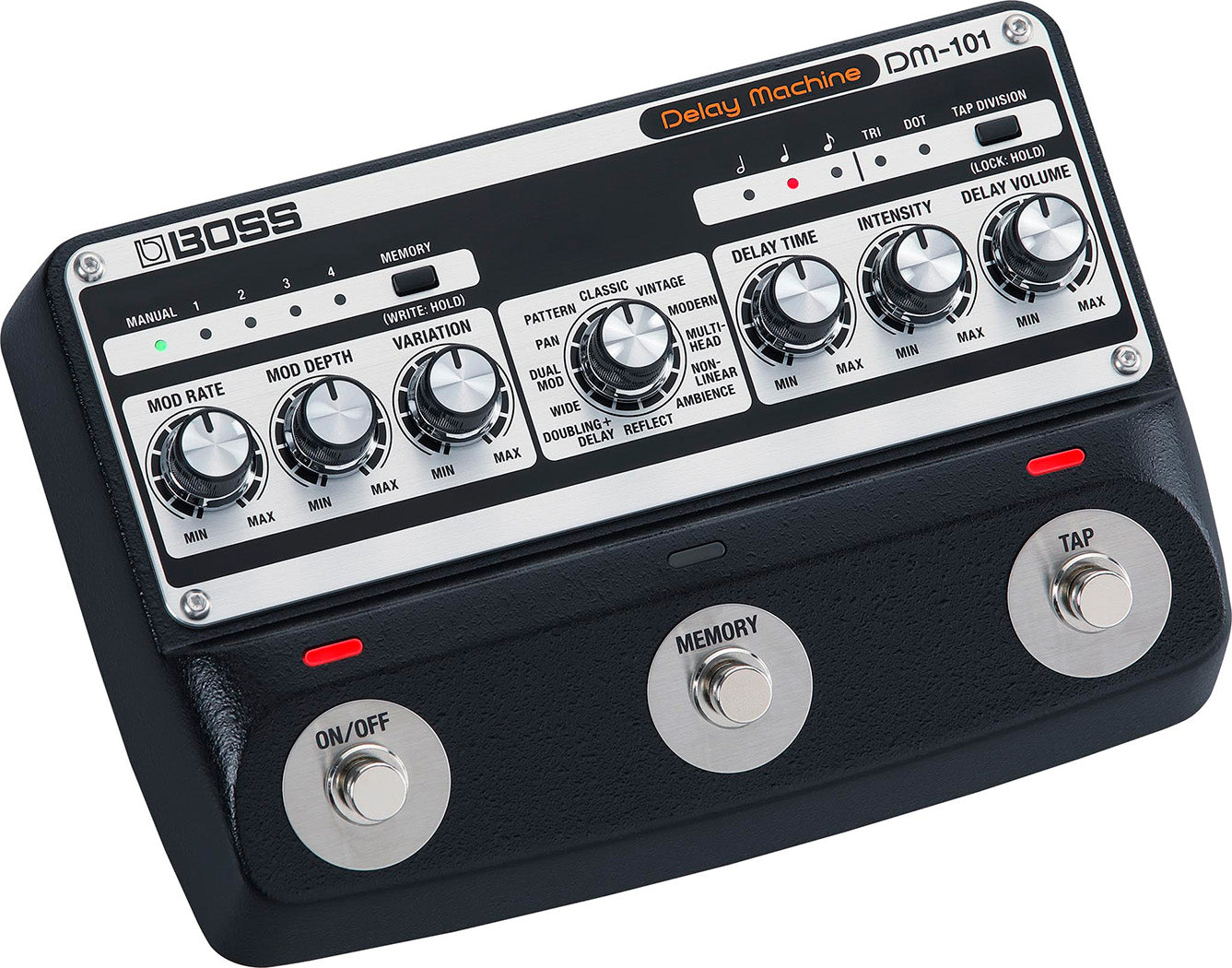

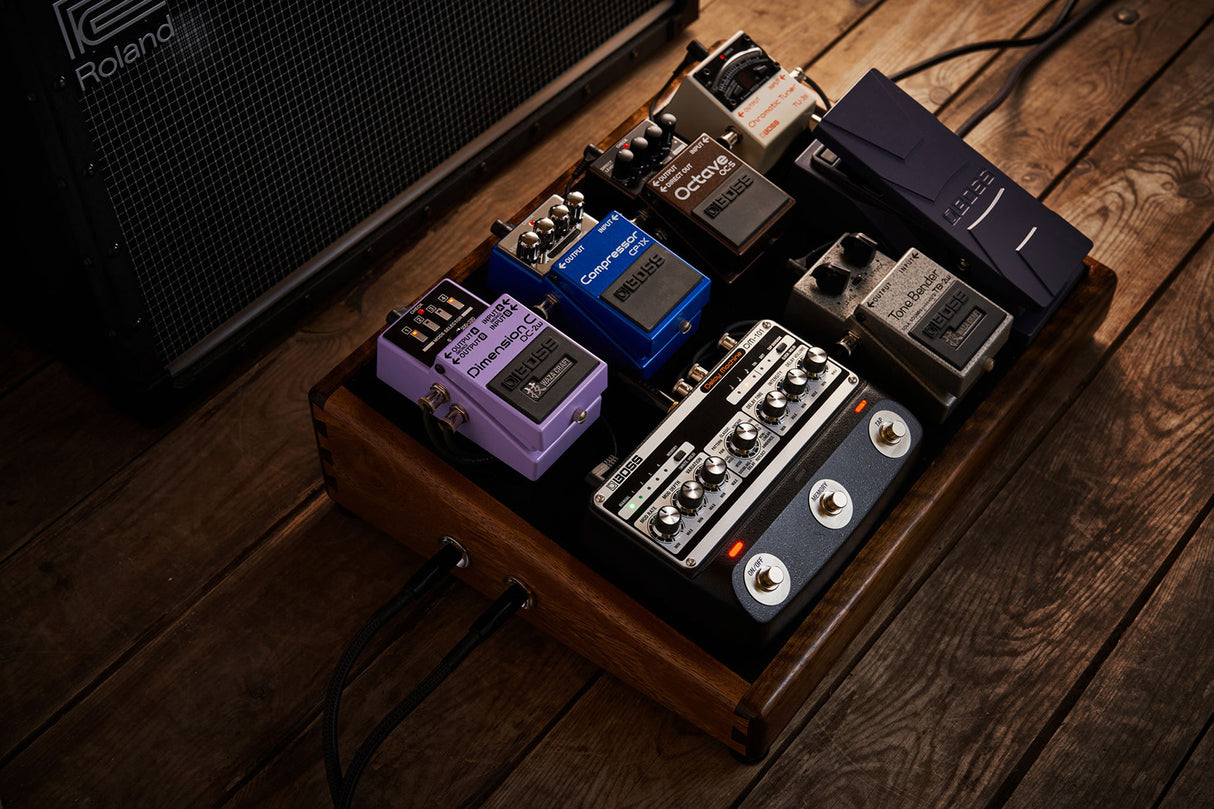

Boss DM-101 Delay Machine

• Boss giver dig her deres bud på den ultimative analoge delay.
• Klassisk varm og mættet lyd kombineret med moderne features.
• Køres af 8 BBDs (Bucket Brigade Devices) via digital CPU kontrol.
• 100 % analogt signal hele vejen.
• 12 unikke modes, stereo/mono, mange indstillingsmuligheder.
• 4 indbyggede hukommelser plus de aktuelle panel indstillinger.
• 127 user memories via MIDI program change.
• MIDI I/O via mini TRS stik.
• Tap tempo, tap division knap.
• Carryover on/off funktion - delayet ringer ud, når du slukker for pedalen eller skifter patch.
• Masser af routing muligheder.
• Knapper til justering af modulation.
• Variationsknap - unikke parametre til hver mode.
• Udvidet kontrol via eksterne footswitches, expression pedal eller MIDI (kan tilkøbes).

Memory 127 + Manual
Nominal Input Level INPUT: -10 dBu
Input Impedance INPUT: 1 MΩ
Nominal Output Level OUTPUT A/MONO, OUTPUT B: -10 dBu
Output Impedance OUTPUT A/MONO, OUTPUT B: 1 kΩ
Recommended Load
Impedance:
OUTPUT A/MONO, OUTPUT B: 10 kΩ or greater
Delay Mode:
CLASSIC
VINTAGE
MODERN
MULTI-HEAD
NON-LINEAR
AMBIENCE
REFLECT [STEREO]
DOUBLING+DELAY [STEREO]
WIDE [STEREO]
DUAL MOD [STEREO]
PAN [STEREO]
PATTERN [STEREO]
Bypass Buffered bypass

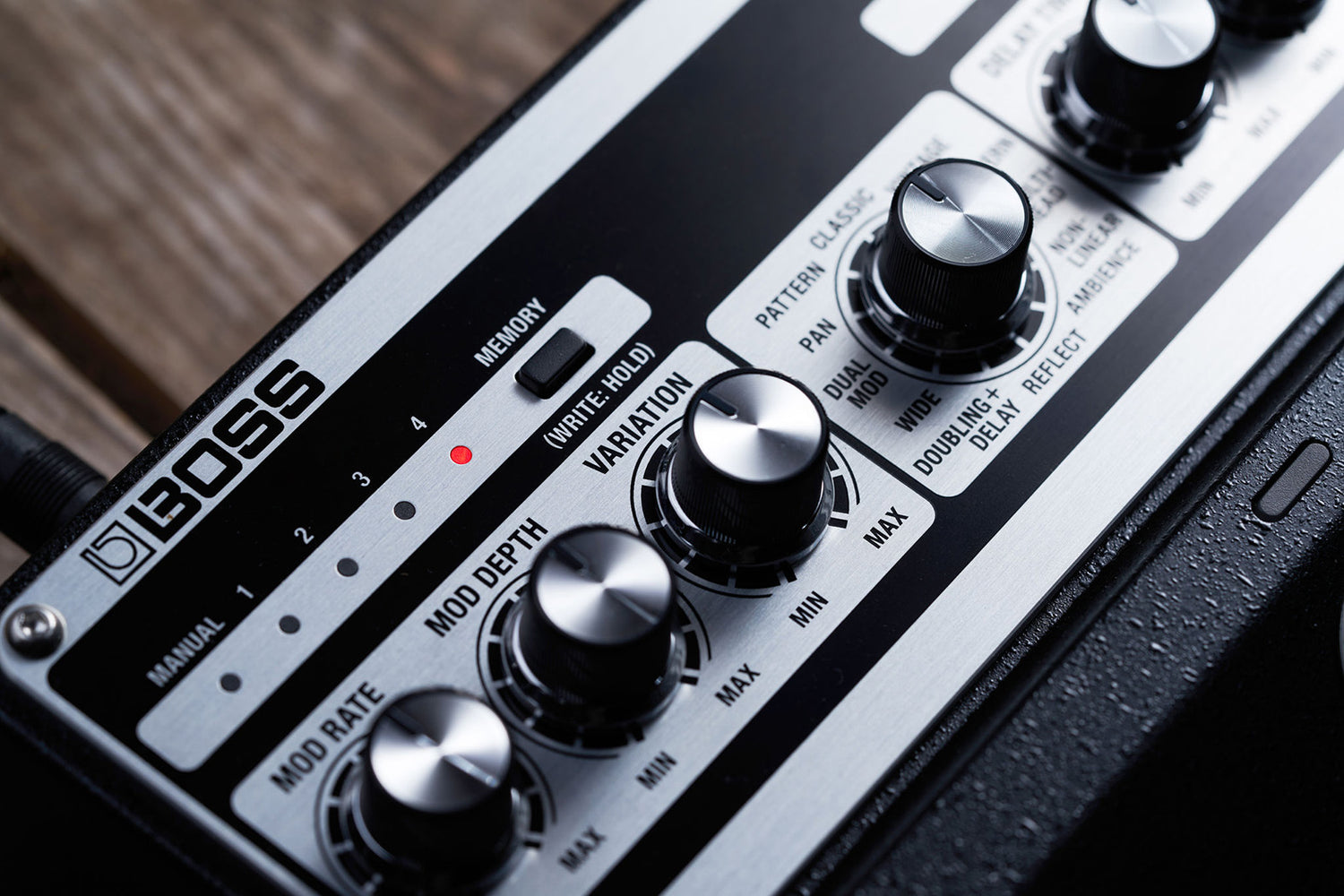

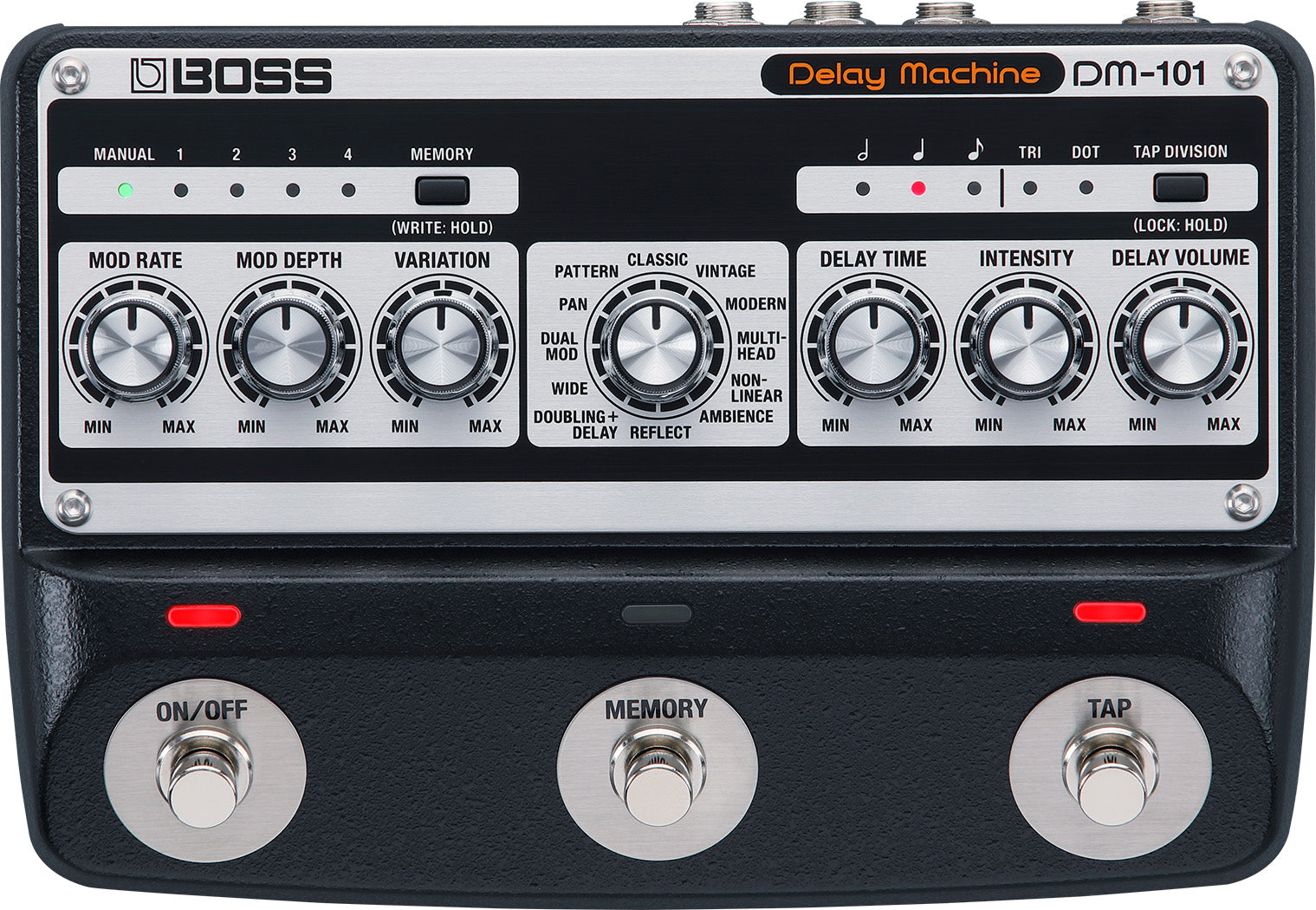

Controls:
[ON/OFF] switch, [MEMORY] switch, [TAP] switch
[MOD RATE] knob, [MOD DEPTH] knob, [VARIATION] knob, Mode knob, [DELAY TIME] knob,
[INTENSITY] knob, [DELAY VOLUME] knob
[MEMORY] button, [TAP DIVISION] button

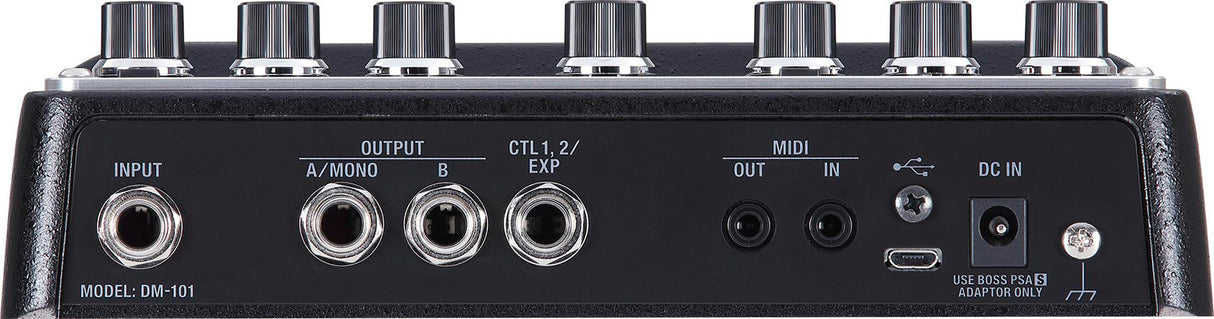

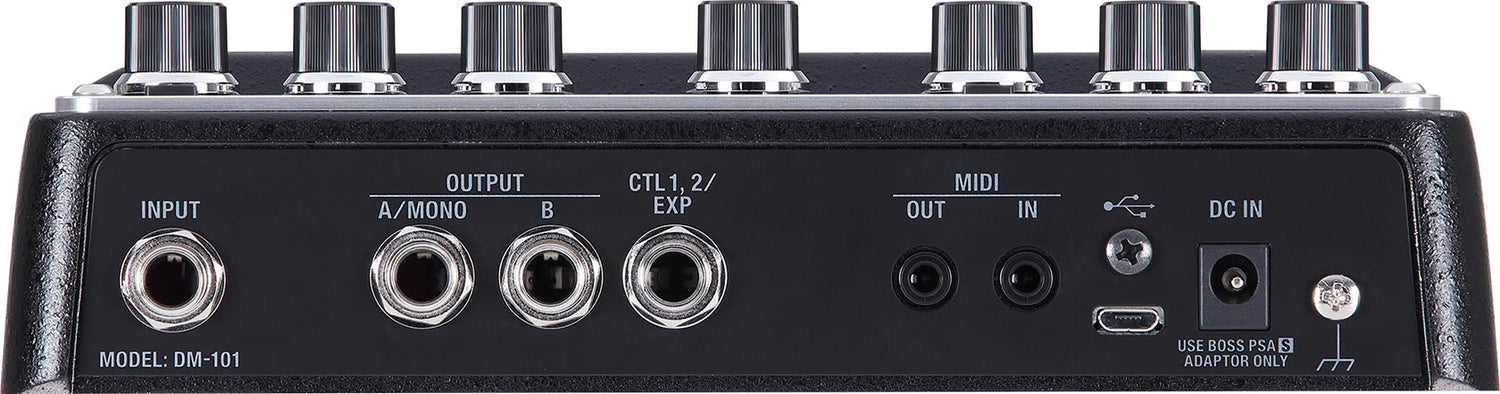

Connectors:
INPUT jack, OUTPUT A/MONO jack, OUTPUT B jack: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type
MIDI (IN, OUT) jacks: Stereo miniature phone type
DC IN jack
USB port: USB micro B-type (program update only)
Power Supply AC adaptor
Current Draw 260 mA
Dimensions:
192 (W) x 133 (D) x 52 (H) mm / 7-9/16 (W) x 5-15/64 (D) x 2-3/64 (H) inches
192 (W) x 133 (D) x 53 (H) mm / 7-9/16 (W) x 5-15/64 (D) x 2-3/32 (H) inches (including rubber foot)
Weight:
830 g
1 lb 14 oz
Accessories:
AC adaptor
Startup Guide
Leaflet (“USING THE UNIT SAFELY”, “IMPORTANT NOTES”, and “Information”)
Rubber foot x 4
Options
(sold separately):
Footswitch: FS-5U

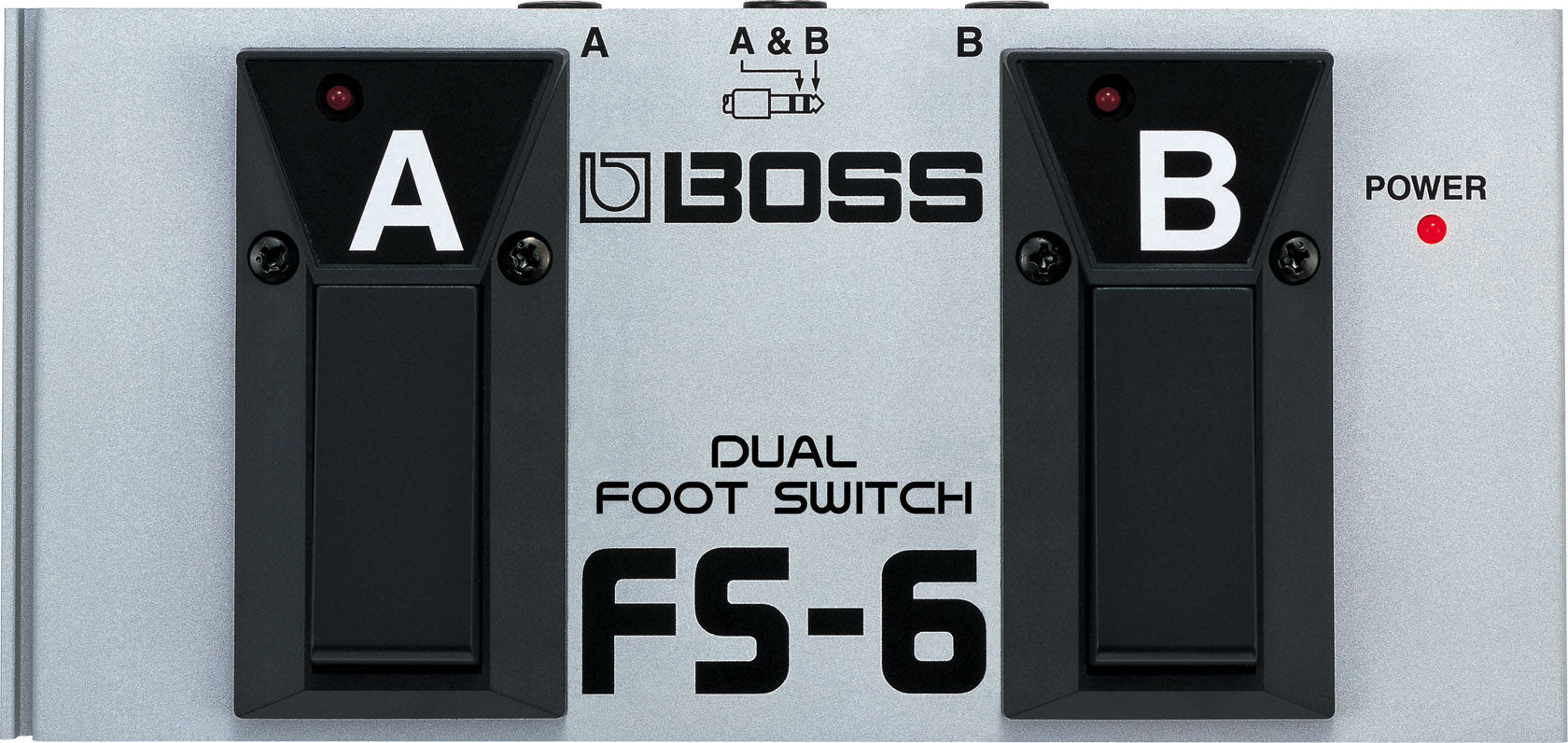

Dual footswitch: FS-6, FS-7

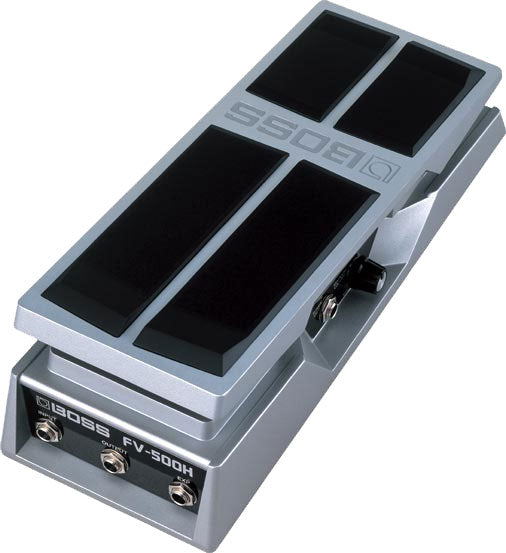

Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
MIDI/TRS connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
