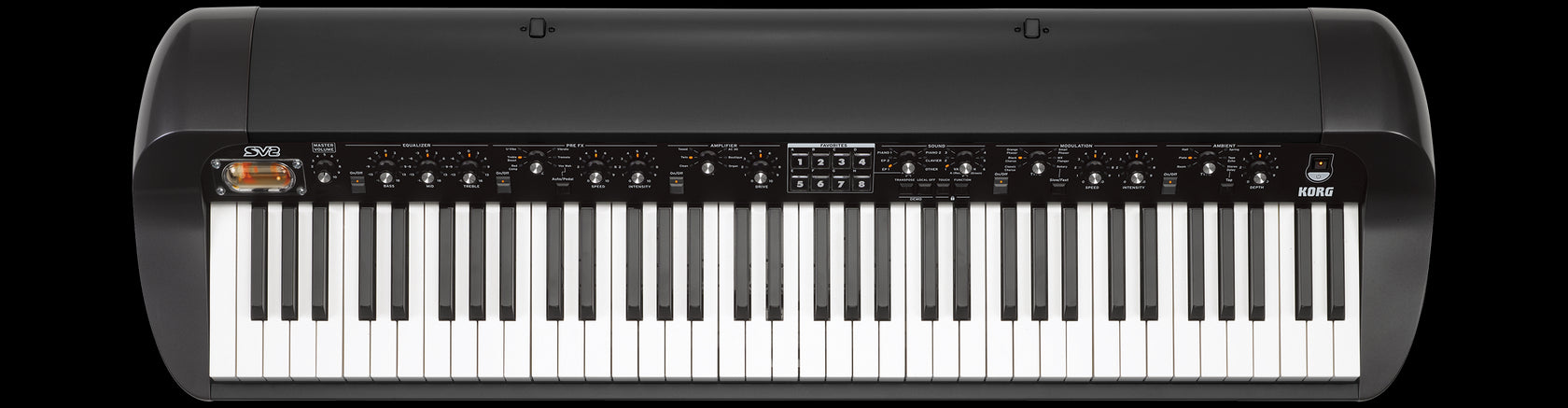

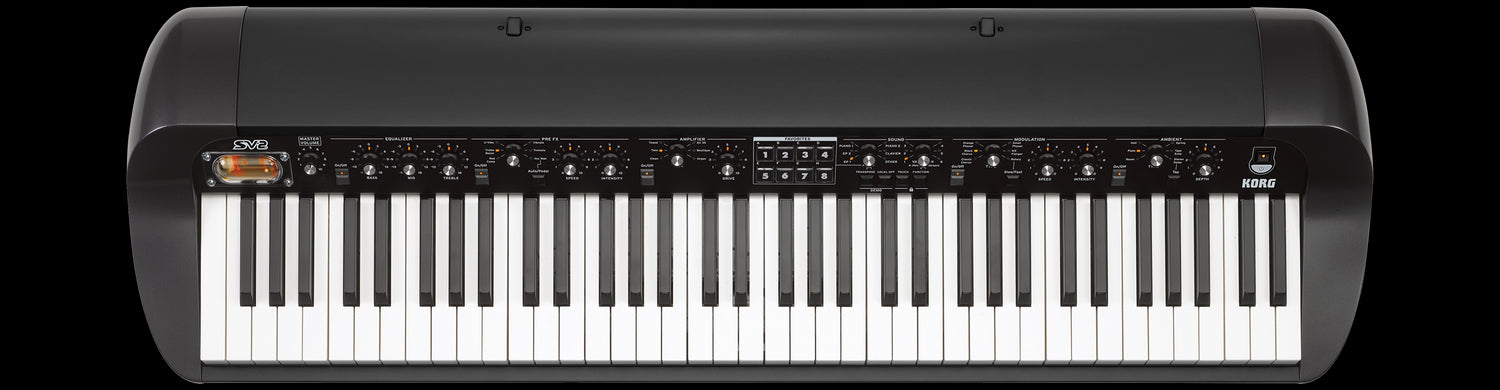

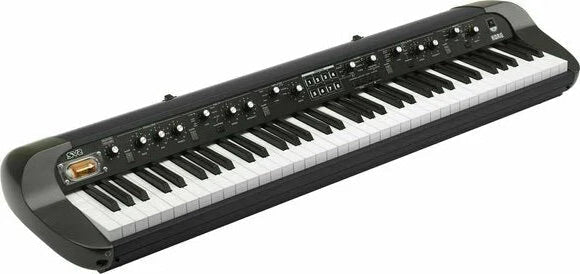

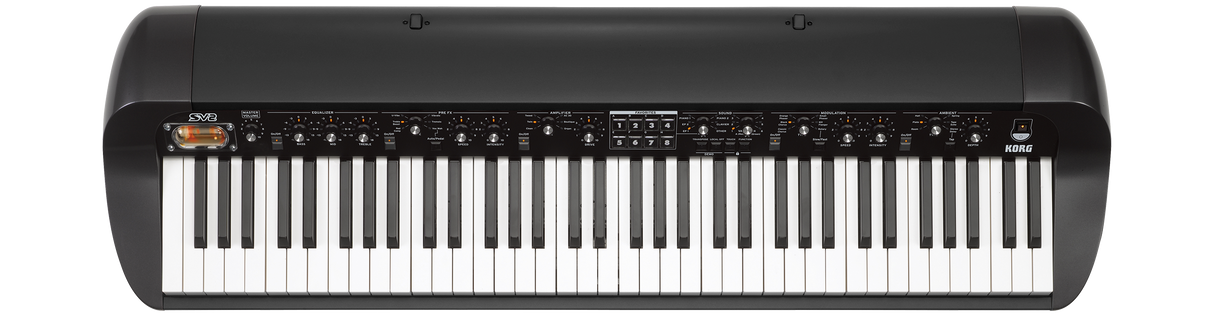

Korg SV-2 73 El Klaver

Keyboard

SV-2 /SV-2S (73key)

73 keys (E1 to E7), Velocity-sensitive KORG RH3 (Real Weighted Hammer Action 3)

SV-2 /SV-2S (88key)

88 keys (A0 to C8), Velocity-sensitive KORG RH3 (Real Weighted Hammer Action 3)

Keyboard

Touch selection

Eight curves

Tuning

Master Transpose, Master Tune, Tuning curves

Sounds

Sound generation

EDS-X (Enhanced Definition Synthesis - eXpanded)

Maximum Polyphony

128 notes

Multi Sound

Layer, Split

Factory Sounds

72 (6 Basic sounds x 2 sets, 6 variations)

EP1 (Vintage)

MK I Suitcase, MK I Stage, MK II Suitcase, MK II Stage, MK V Stage, MK V Bright, Dyno EP, Dyno EP Bright, Wurly, Wurly Classic, Wurly Dark, Wurly Bright

EP2 (Various)

FM Piano 1, FM Piano 2, FM Piano 3, FM Piano & Pad, Pianet T, Pianet N, Hybrid Piano, Hybrid Tine, Wurly & Strings, FM & Strings, MK II & Pad, FM & Pad

Piano 1 (Acoustic)

German Grand, German Classic, Italian Grand, Italian Bright, Japanese Grand, Japanese Bright, Austrian Grand, Austrian Classic, Japanese Upright, Upright Bright, German Upright, Rock Piano

Piano 2 (Various)

Electric Grand, German Mono, KORG M1 Piano, KORG SG-1D, Digital Piano, Electra Piano, Tack Piano, Honky-Tonk, Piano & Strings, Piano & Pad, Piano & Synth, Piano & Brass

Clavier

Clav AC, Clav AD, Clav BC, Clav BD, Harpsichord, Harpsichord Oct, Perc. Organ, Rock Organ, Jazz Organ, VOX Organ, Church Organ, Pipe Organ

Other

Full Strings, Classic Strings, Tape Strings, Strings & Voices, Warm Pad, Bright Pad, Orchestra, Pizzicato & Glock, Brass, Synth Brass, Pad/Mini Lead, Pad/SynthLead

Favorite sounds

64 (8 banks x 8 variations) for saving of customized settings

Effects

Structure

6 effects (5 effects + 1 total effect)

Equalizer

Bass, Mid, Treble

Pre FX

Red Comp, Treble Boost, U-Vibe, Vibrato, Tremolo, VOX Wah (Auto or Pedal control)

Amplifier models

Clean, Twin, Tweed, AC30, Boutique, Organ Amp + Cabinet Models, Valve Reactor Technology – 12AX7 (ECC83) valve

Modulation

Classic Chorus, Black Chorus, Orange Phaser, Small Phaser, MX Flanger, Rotary (Slow/Fast control)

Ambient

Room, Plate, Hall, Spring, Tape Echo, Stereo Delay (Tap tempo)

Total FX (only editable with SV-2 Editor)

Stereo Mastering Limiter, Stereo Limiter

Panel controls

Sound Select

TYPE knob, VARIATION knob, FAVORITES 1–8 switches

Favorite Sound select

1–8 switches, SOUND TYPE knob

Effect Control

Equalizer: On/Off switch, BASS knob, MID knob, TREBLE knob

Pre FX

On/Off switch, TYPE knob, SPEED knob, INTENSITY knob, AUTO/PEDAL switch (available when the TYPE = Vox Wah)

Amplifier

On/Off switch, TYPE knob, DRIVE knob

Modulation

On/Off switch, TYPE knob, SPEED knob, INTENSITY knob, Slow/Fast switch (available when the TYPE = Rotary.)

Ambient

On/Off switch, TYPE knob, DEPTH knob, Tap (available when TYPE = Stereo Delay)

Volume

Master Volume

Switches

Transpose, Local Off, Touch, Function

Demo Songs

72 songs (one song for each preset sound)

Input/Output connections

Audio Output

L, R connector (XLR balanced), L/MONO jack, R/MONO jack (6.3 mm [1/4"] unbalanced)

Headphone

Headphone jack（6.3 mm [1/4”] stereo jack)

Audio Input

L/MONO jack, R/MONO jack (6.3 mm [1/4"] unbalanced)

MIDI

IN, OUT

USB

USB: 2.0 Type B connector (doubles the MIDI Interface)

Damper Pedal

KORG DS-2H (included), DS-1H(sold separately)

Pedal 1

PS-1 foot switch, PS-3 foot switch (sold separately)

Pedal 2

Volume/Expression, XVP-20, EXP-2, PS-1 foot switch, PS-3 foot switch (sold separately)

Amplification (SV-2S)

Speakers

2 x 2.5" with 2 x 3" passive radiator

Amplification power

2 x 15 W

Main specifications

Power Supply

Internal switching adapter, AC 100~240 V, 50/60 Hz

SV-2

16 W

SV-2S

25 W

Power Consumption

SV-2／SV-2S (73key)

1143 mm x 347 mm x 157 mm/45.0" x 13.66" x 6.18"

SV-2／2V-2S (88key)

1356 mm x 347 mm x 157 mm/53.39" x 13.66" x 6.18"

Dimensions (W x D x H, excluding music stand):

SV-2 73key

17.2 kg/37.92 lbs

SV-2 88key

20.35 kg/44.86 lbs

SV-2S 73key

18.3 kg/40.34 lbs

SV-2S 88key

21.45 kg/47.29 lbs

Weight (excluding music stand)

Others

Included Items

Power cable, Music stand, DS-2H damper pedal, Quick Guide.

Stand

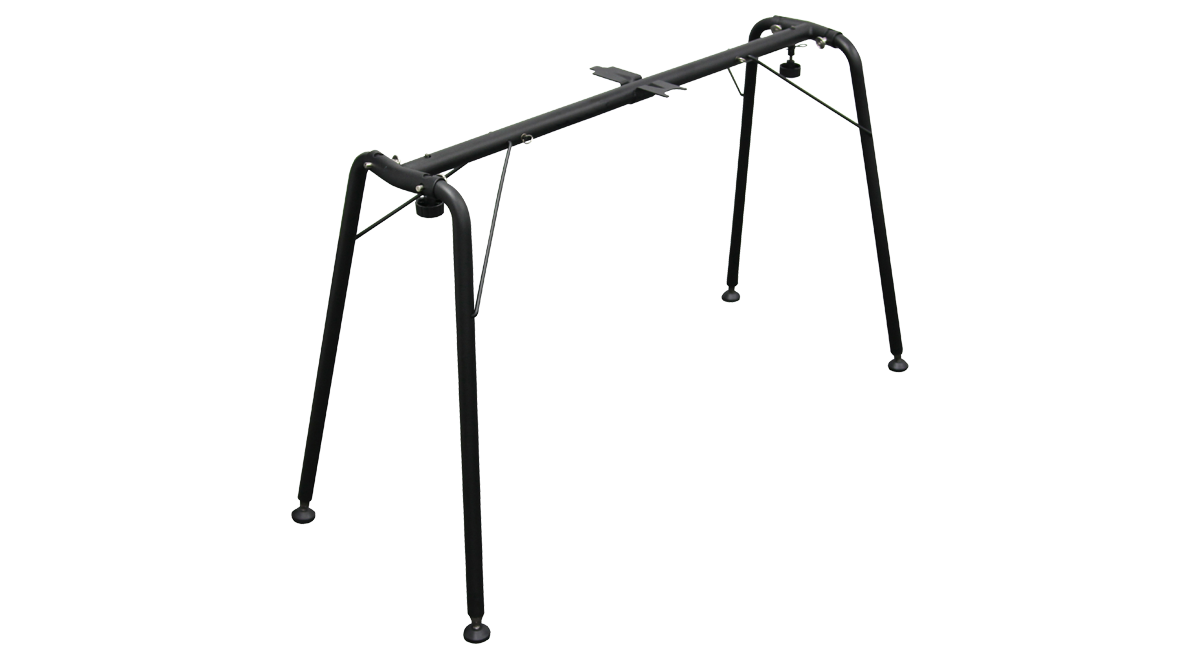

ST-SV1 piano stand

Carrying bag

CB-SV1 73
CB-SV1 88

Damper pedal

DS-1H

EXP/VOL pedal

XVP-20

Foot controller

EXP-2

Pedal switch

PS-3
PS-1

Accessories (sold separately)
