4 EQ modes

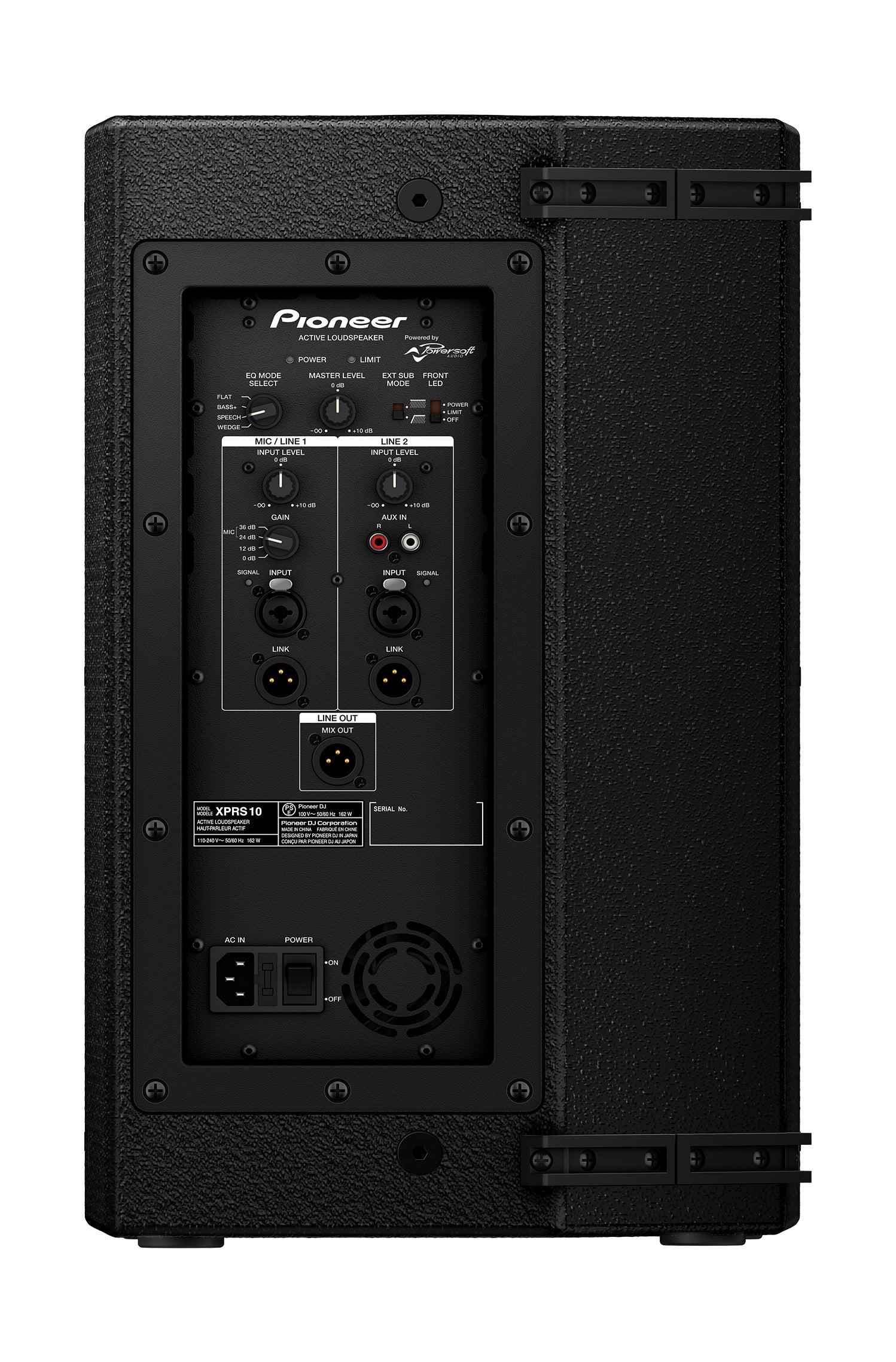

Adapt to a variety of genres and environments using the rotary selector switch on the back of the speaker to give you instant access to 4 EQ modes: Flat, Bass +, Speech and Wedge.

• Flat: neutral production of the source audio.
• Bass +: amplifies the bass for dance music events.
• Speech: produces clear vocal sounds for seminars and speeches.
• Wedge: reduces the low frequencies to give a more balanced sound if you’re using the speaker as a floor monitor.

Advanced protection

The XPRS10 speaker is packed with features to protect the drivers, amp and power supply in to Amplifier module – giving you peace of mind, consistent high-quality sound, and extending the life of your sound system.

1. Amplifier protection

• Thermal limiting: cuts off to prevent overheating.
• Output overcurrent: reduces the speaker’s output to safe levels in the event of output overcurrent.

2. Speaker protection

• DC offset removal: shuts down to prevent further damage if the speaker blows.
• Stationary high frequency protection: protects the speaker from loud bursts such as feedback.
• Input voltage limiter: Peak and RMS.
• Output voltage limiter: cuts the LF and compression drivers separately when either reaches their peak.

3. Power protection

• AC mains over-voltage protection: protects against power surges.

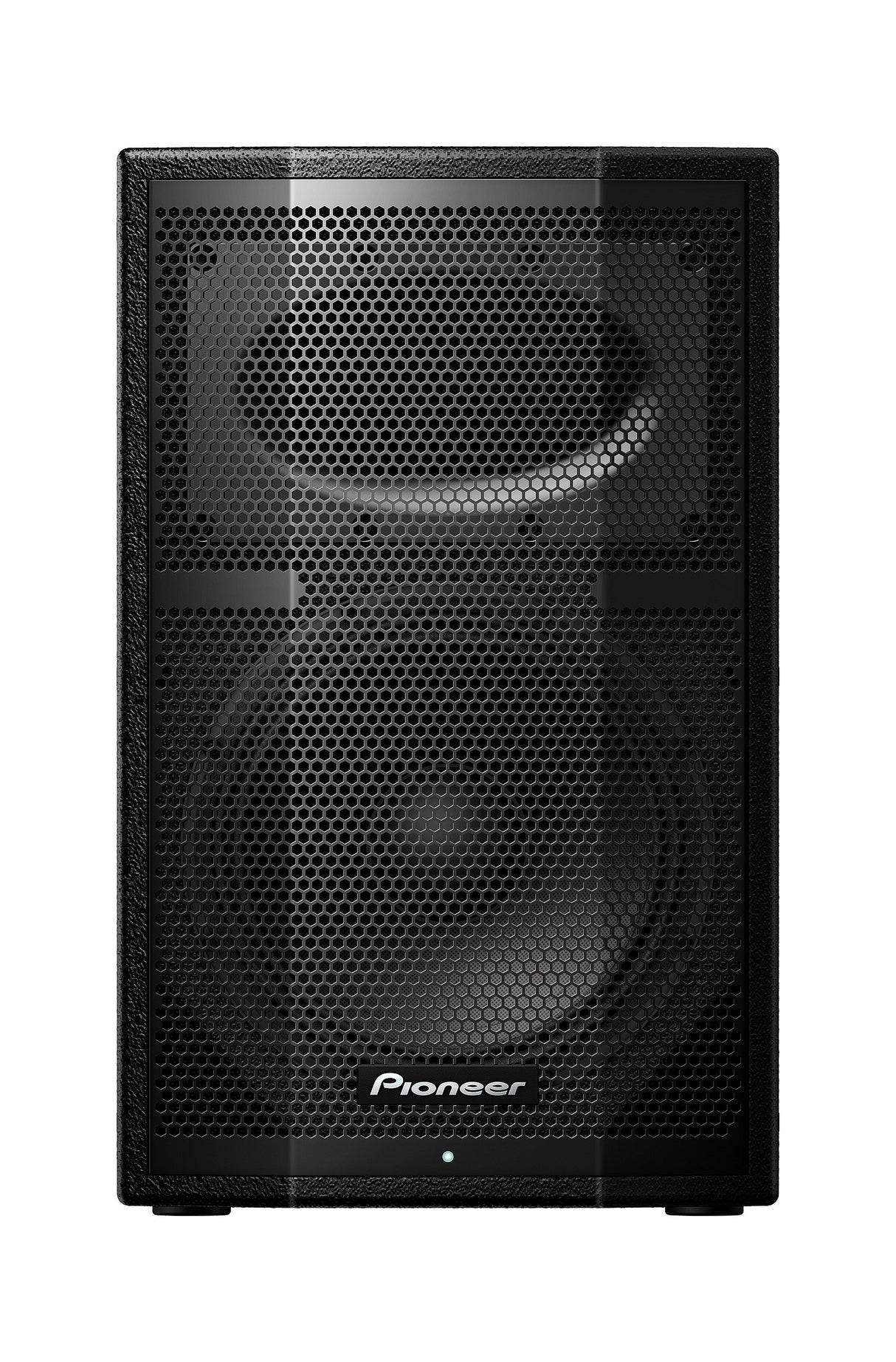

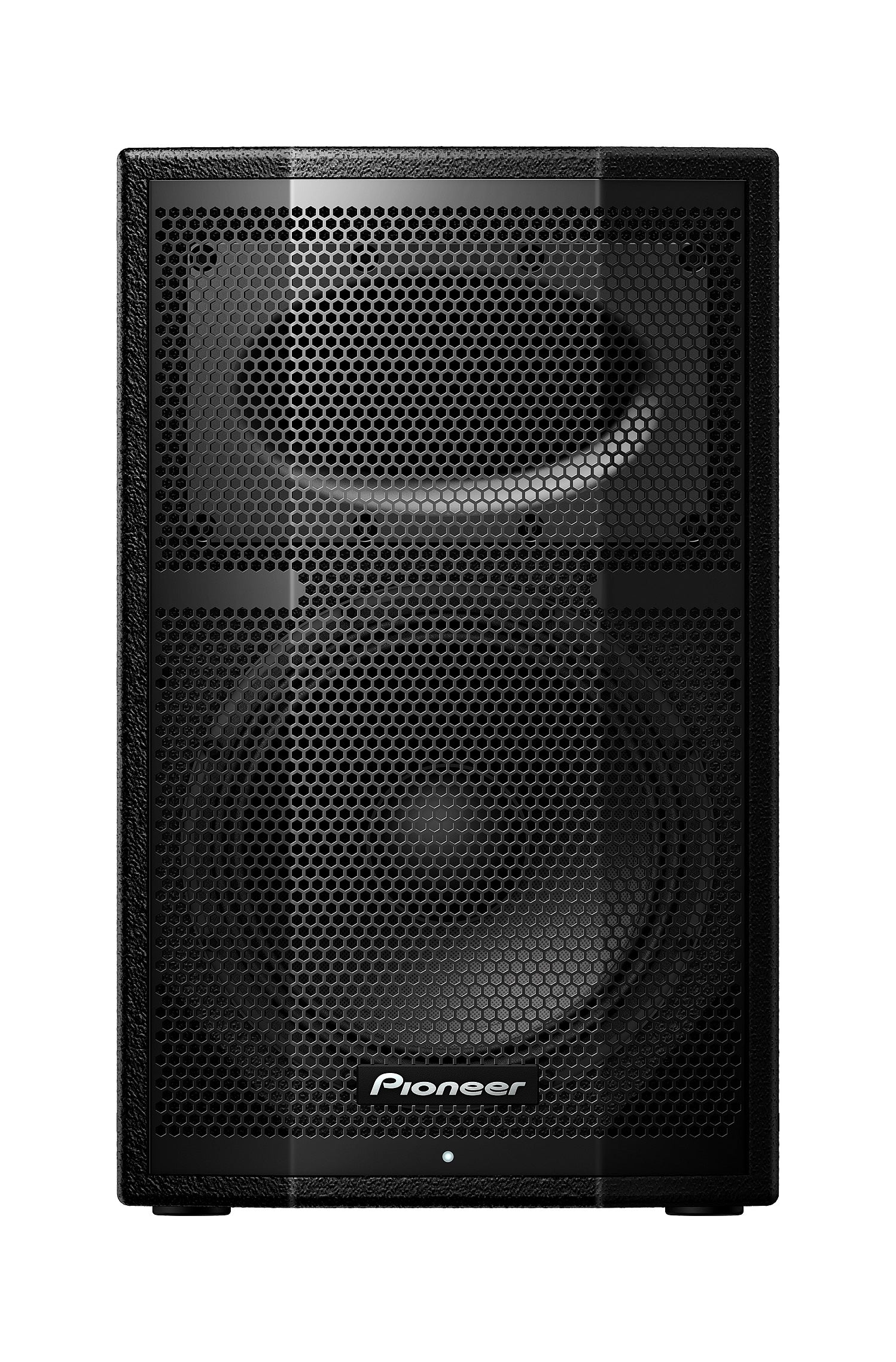

A status LED on the front of the cabinet has 3 settings – power, limiter or off – giving an optional visual reference to the status of the speaker.

Flexible connectivity

2 balanced XLR/TRS combo sockets and an unbalanced RCA connection mean you can connect at the same time a Mic and other devices, such as line-level mixers or portable audio players.

Choose your set-up

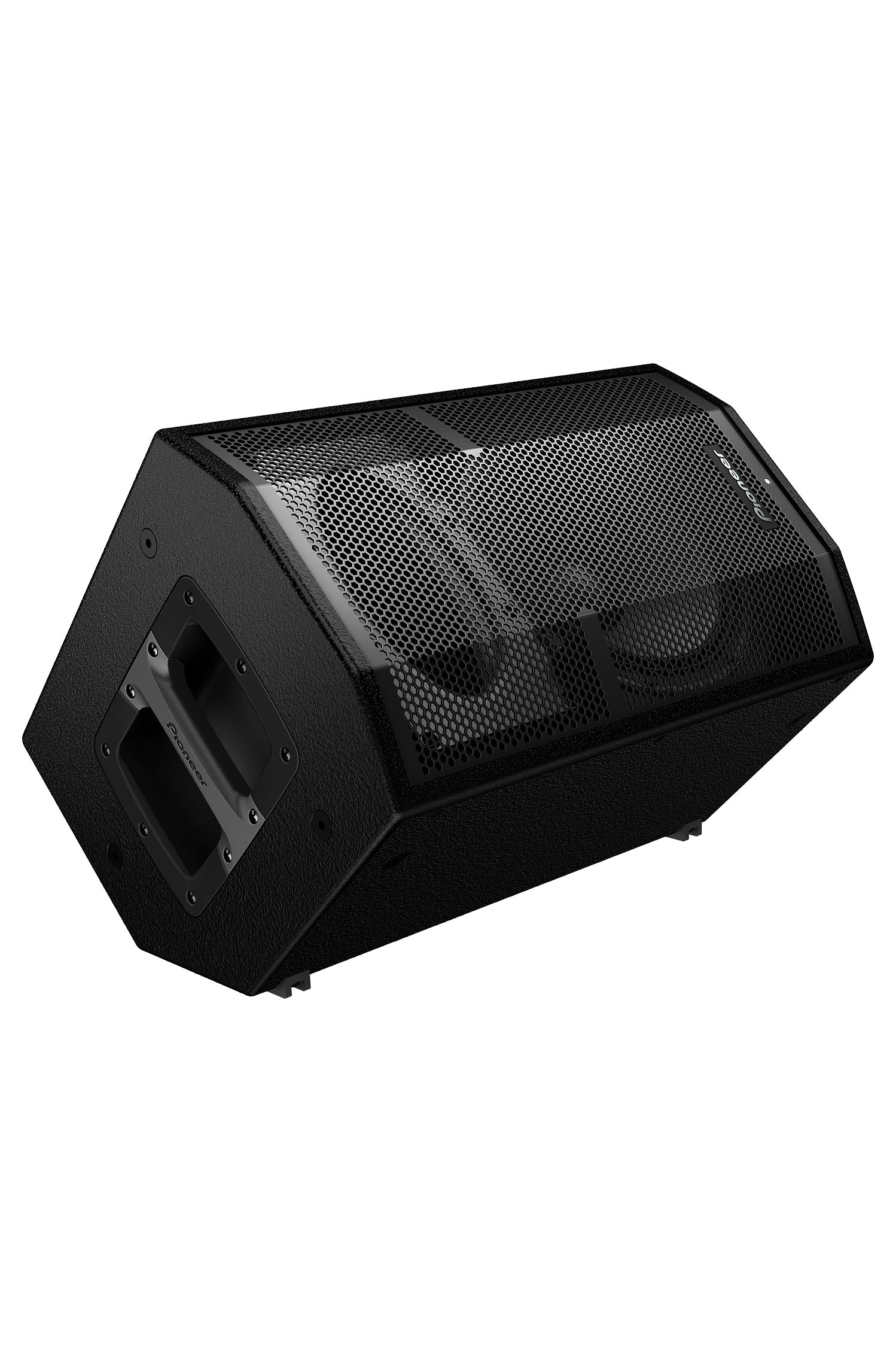

Place the wedge-shaped speaker as a foldback monitor on stage, use the rigging points to mount it to the ceiling or wall, or set the pole mount socket straight or tilted to 7 degrees to direct the sound exactly where you want it.

Designed for the road

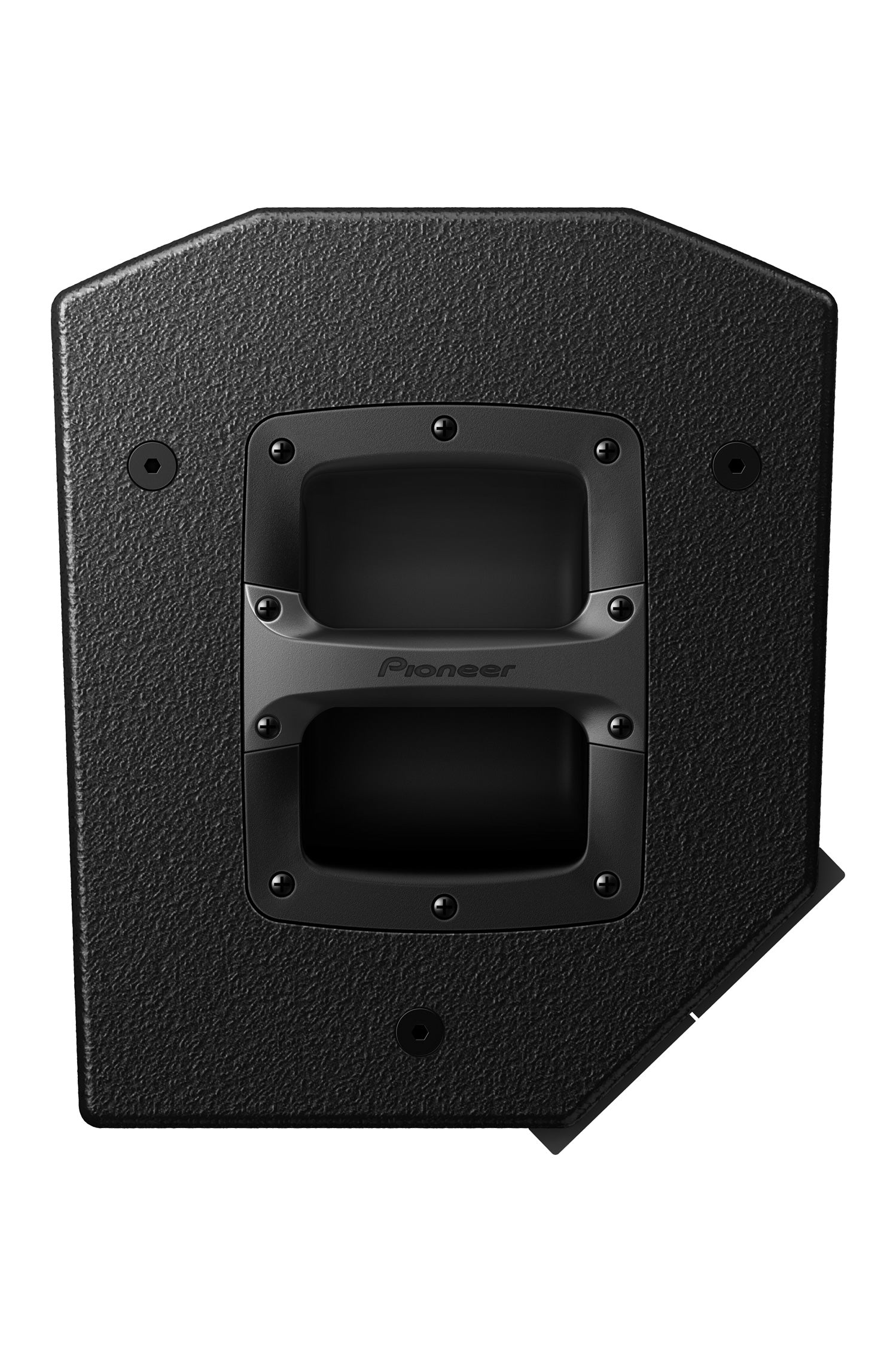

The durable, birch plywood enclosure keeps your PA speaker safe, while carefully placed handles take the hard work out of transit and set-up.

Auto-ranging power supply

Plug in the XPRS Series anywhere in the world – including venues with generators or temporary power supplies. They will detect and adapt to the voltage without compromising the sound quality.

Up to 7 year warranty

We‘re extending the free warranty period for the XPRS Series active speakers. You can now receive up to 7 years of cover by registering your products online within 90 days of your purchase. Please review the warranty statement for a full list of terms and conditions.
