• Remake af den klassiske SH-101 synthesizer via ACB tech, med bass, lead, noise, og sound effects
• Ny Unison, Chord, og 4-voice Polyphonic modes.
• Indbygget sequencer med 64 patterns der kan gemmes
• Nem performance arpeggiator med 3 playback modes, note hold, og trevejs transpose switch
• CV/Gate output for kontrol af modular eller vintage gear
• Batteri (4 x AA) eller USB powered

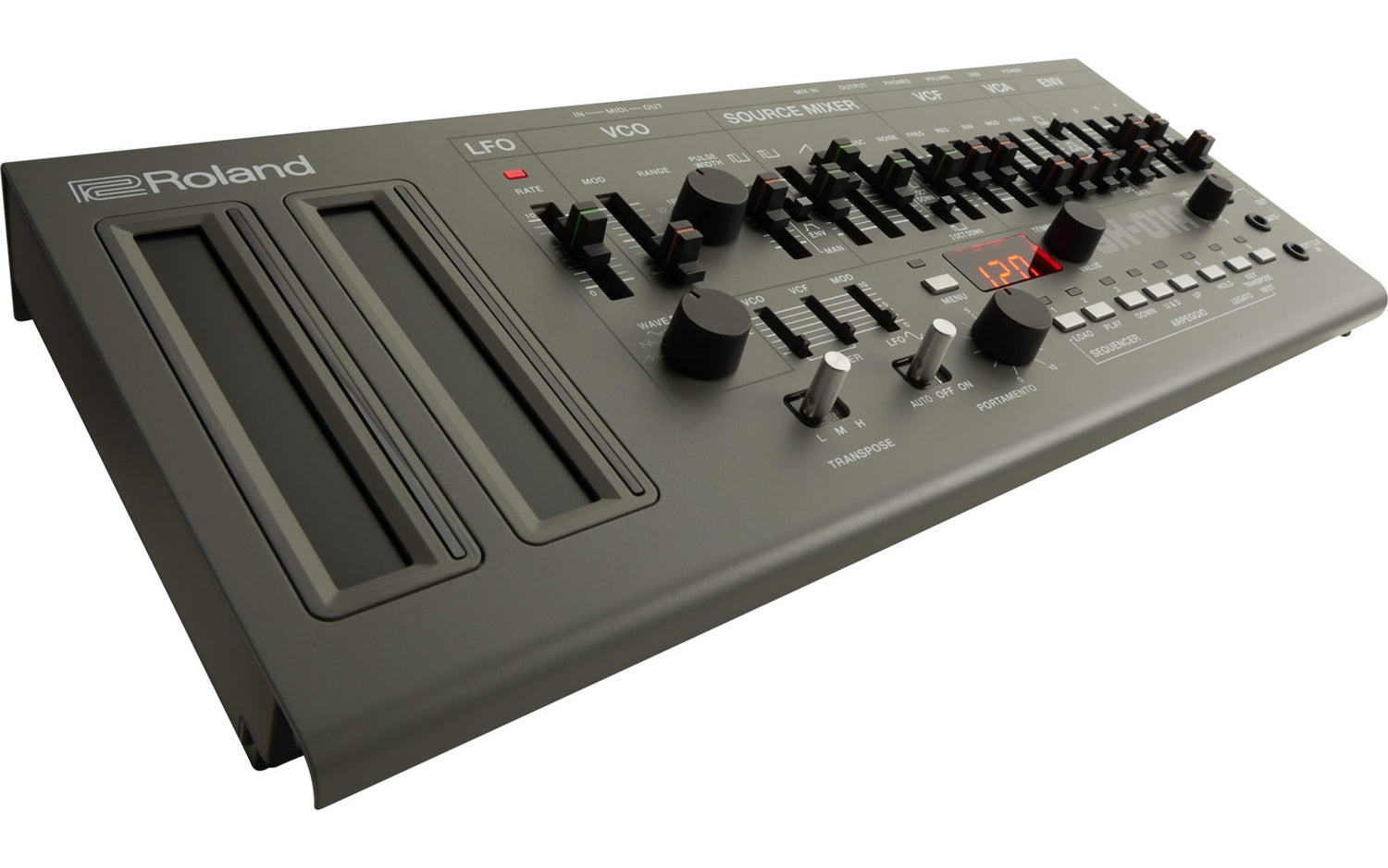

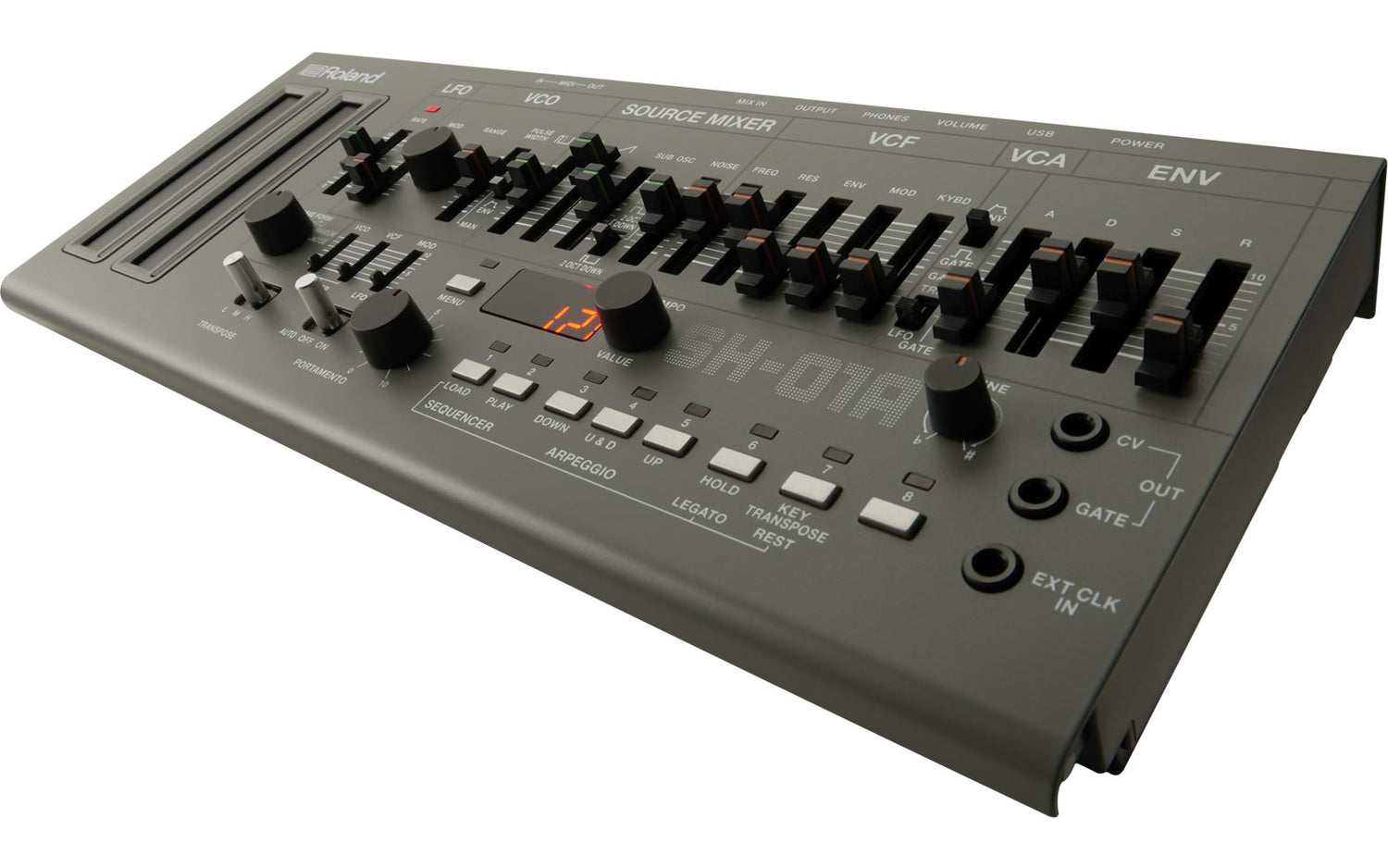

Roland SH-01A

Digitalt remake af den klassiske SH-101 synthesizer. I et lækkert lommeformat får du alt det fra den gamle SH-101 model inklusiv Unison, Chord, og 4-voice Polyphonic modes. Indbygget sequencer med 64 patterns, der kan gemmes en nem performance arpeggiator med 3 playback modes, note hold, og trevejs transpose switch, samt CV/Gate output for kontrol af modular eller vintage gear. Kører på Batteri (4 x AA) eller USB power.

SPECIFICATIONS

Sound Generator Section

Maximum Polyphony: 4 voices
Assign Mode: MONO/UNISON/POLY/CHORD

User Memory

Sound Patch: 64
Sequencer Pattern: 64

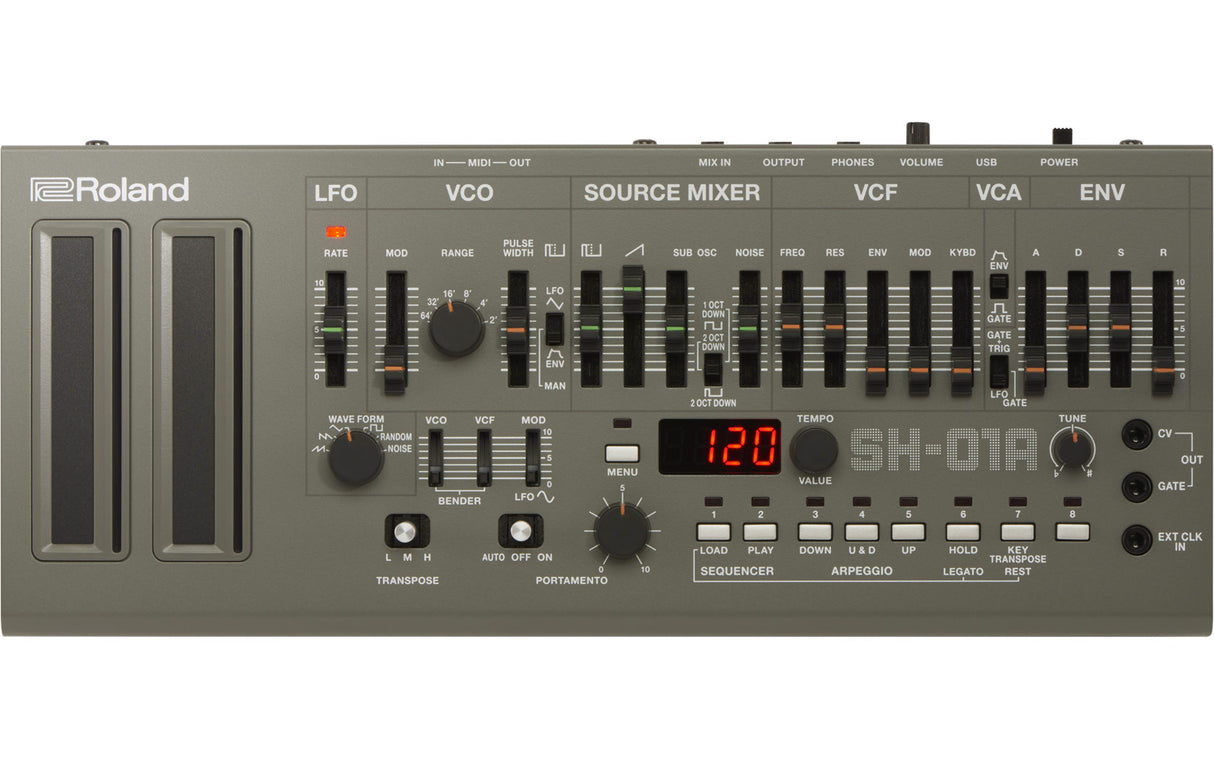

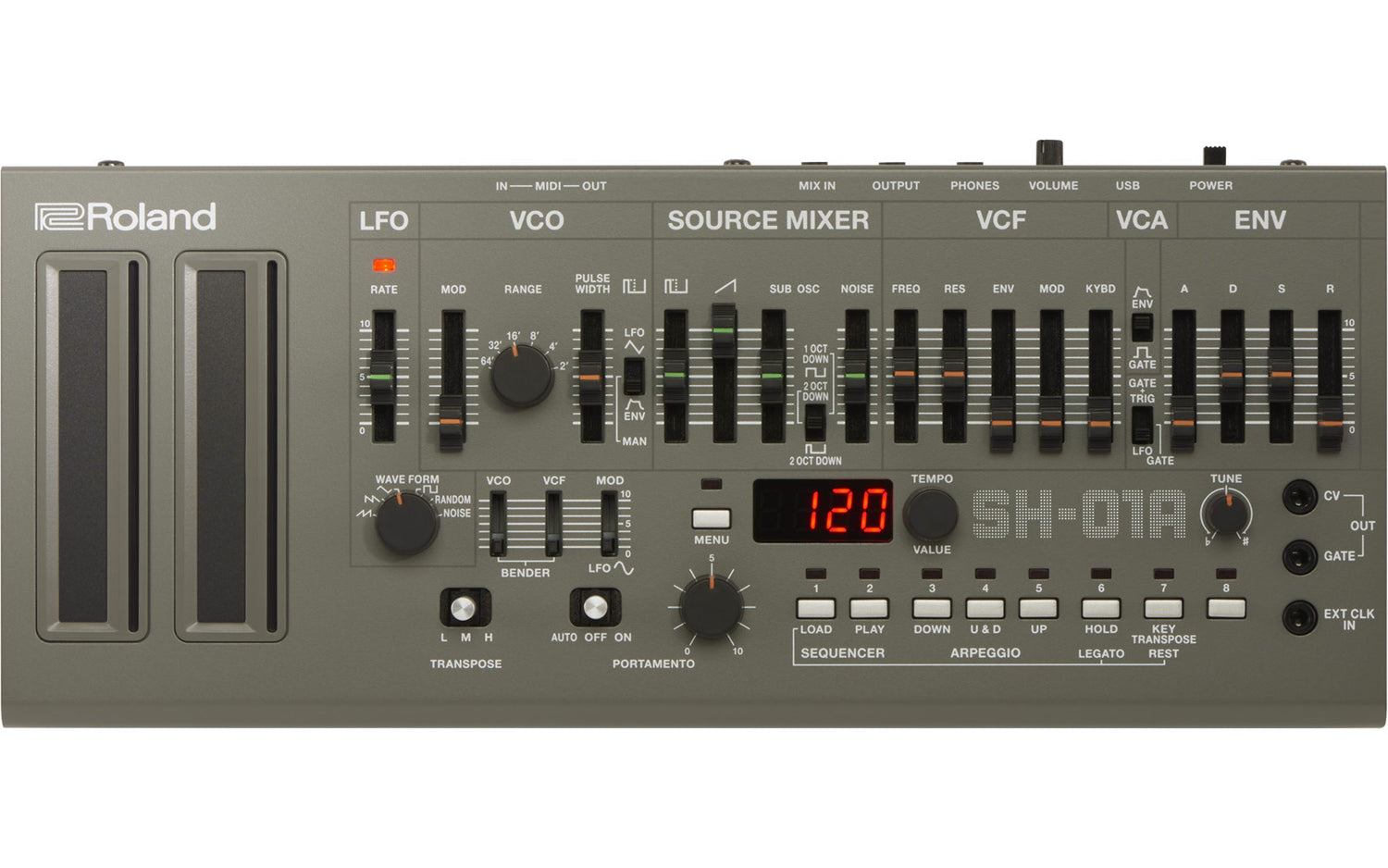

Controllers

VOLUME knob
Ribbon controllers C1, C2

LFO section:
RATE indicator and slider
WAVE FORM select knob

VCO section:
MOD depth slider
RANGE select knob
PULSE WIDTH slider
LFO/MAN/ENV select switch

SOURCE MIXER section:
PULSE level slider
SAW level slider
SUB OSC level slider
SUB OSC select slider
NOISE level slider

VCF section:
FREQ: cutoff frequency slider
RES: resonance slider
ENV: envelope depth slider
MOD: modulation depth slider
KYBD: key follow slider

VCA section:
ENV/GATE select switch

ENV section:
GATE+TRIG/GATE/LFO select switch
A: attack time slider
D: decay time slider
S: sustain level slider
R: release time slider

Controller section:
TRANSPOSE switch (L/M/H)
VCO BENDER sens slider
VCF BENDER sens slider
LFO MOD slider
PORTAMENTO select switch (AUTO/OFF/ON)
PORTAMENTO time knob

MENU switch and indicator

SEQUENCER/ARPEGGIO section:
1/LOAD switch and indicator
2/PLAY switch and indicator
3/DOWN switch and indicator
4/U&D switch and indicator
5/UP switch and indicator
6/HOLD switch and indicator
7/KEY TRANSPOSE switch and indicator
8 switch and indicator

Power switch

Step Sequencer

100 steps
4 notes (Polyphonic)

Arpeggio

DOWN/U&D/UP
1 OCT/2 OCT

Display

7 segments, 4 characters (LED)

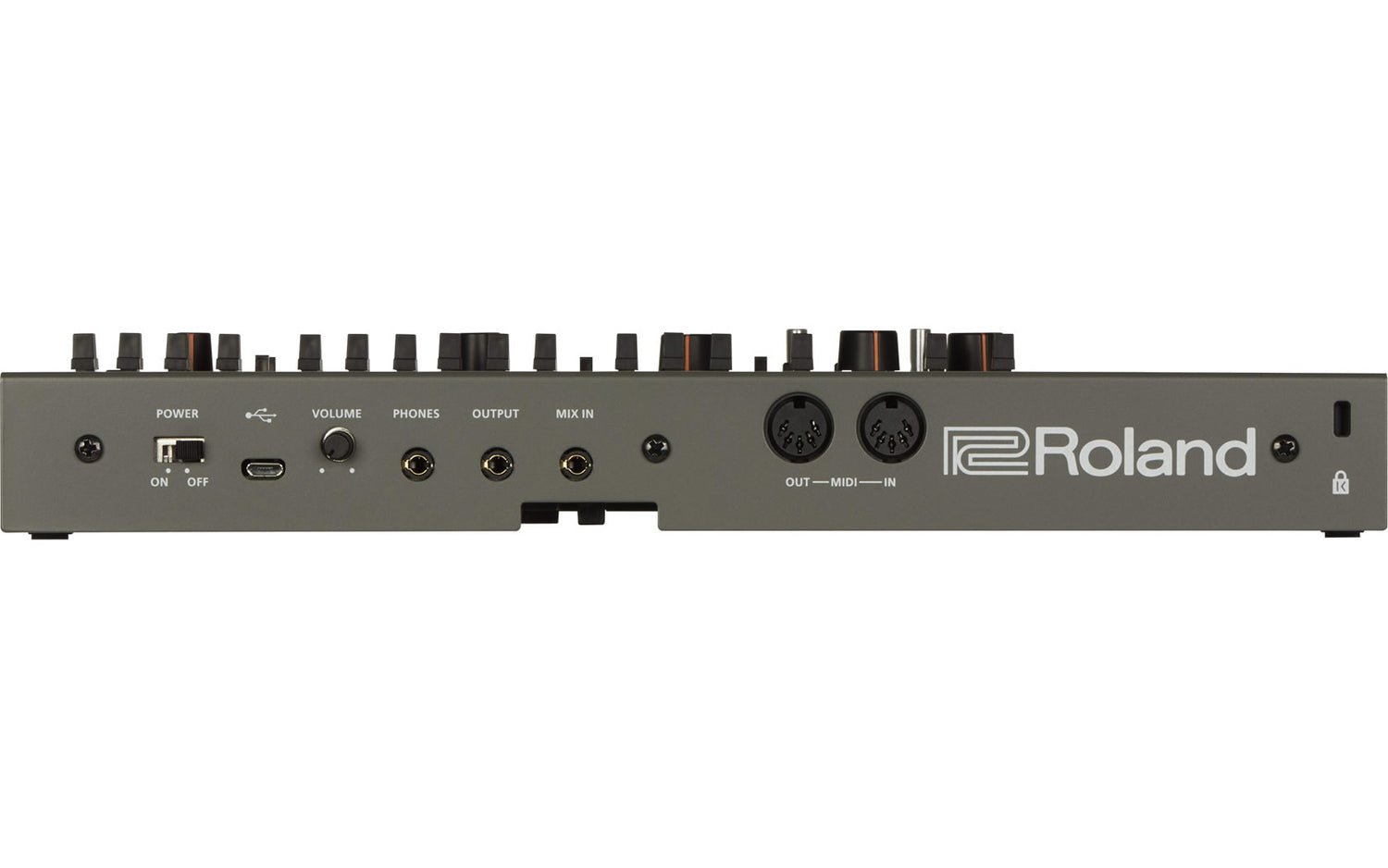

Connectors

CV OUT jack: mono miniature phone type
GATE OUT jack: mono miniature phone type
EXT CLK IN jack: mono miniature phone type
PHONES jack: stereo miniature phone type
OUTPUT jack: stereo miniature phone type
MIX IN jack: stereo miniature phone type
MIDI (IN, OUT) connectors
USB port: Micro-B type (Audio, MIDI)

Power Supply

Rechargeable Ni-MH battery (AA, HR6) x 4
Alkaline battery (AA, LR6) x 4
USB bus power

Current Draw

500 mA (USB bus power)

Expected battery life under continuous use

Rechargeable Ni-MH battery: Approx. 6 hours
* This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.

Accessories

Owner's Manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 4

Options (sold separately)

Keyboard Unit: K-25m
Boutique Dock: DK-01

SIZE AND WEIGHT

Width

300 mm
11-13/16 inches

Depth

128 mm
5-1/16 inches

Height

46 mm
1-13/16 inches

Weight (including batteries)

965 g
2 lbs 3 oz
