• Startpakke med alt du skal bruge for at optage lyd!

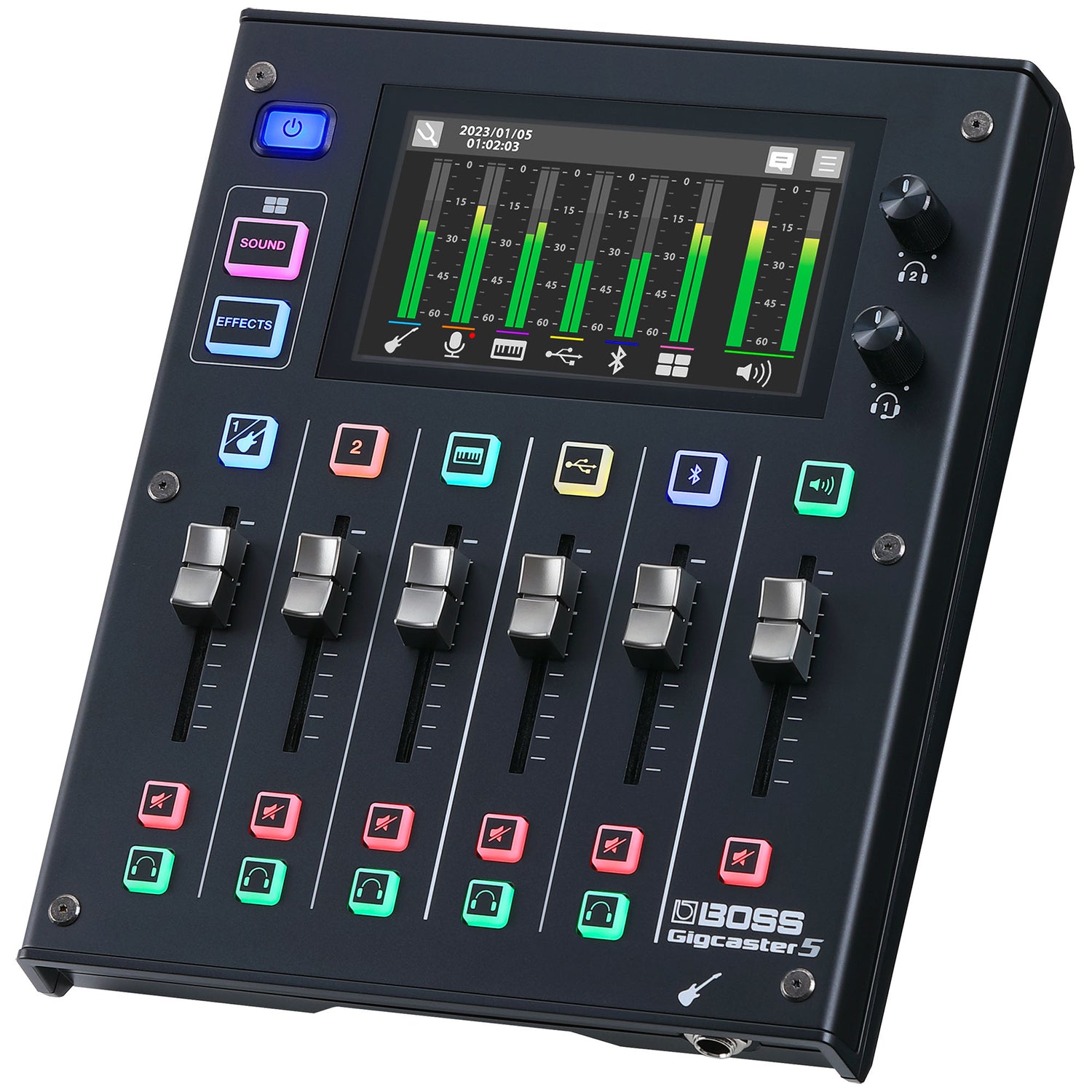

• Kompakt 5-kanals streaming mixer
• Alt-i-én audio streaming hub - oplagt til musikere, undervisere, podcasters m.m

Boss Gigcaster 5 Streaming Mixer Startpakke

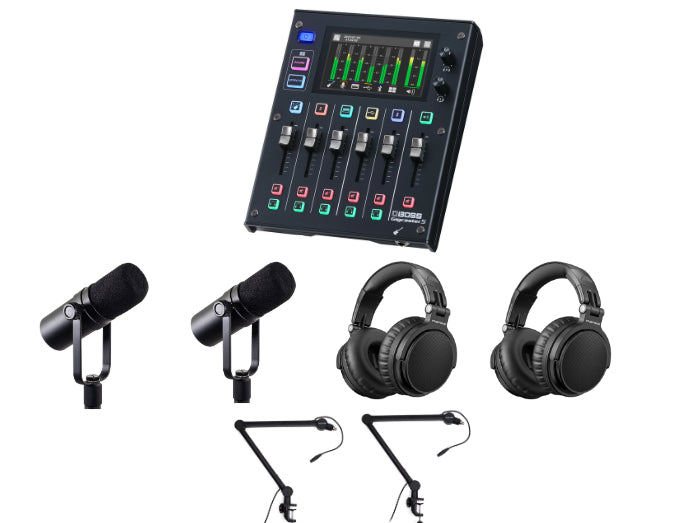

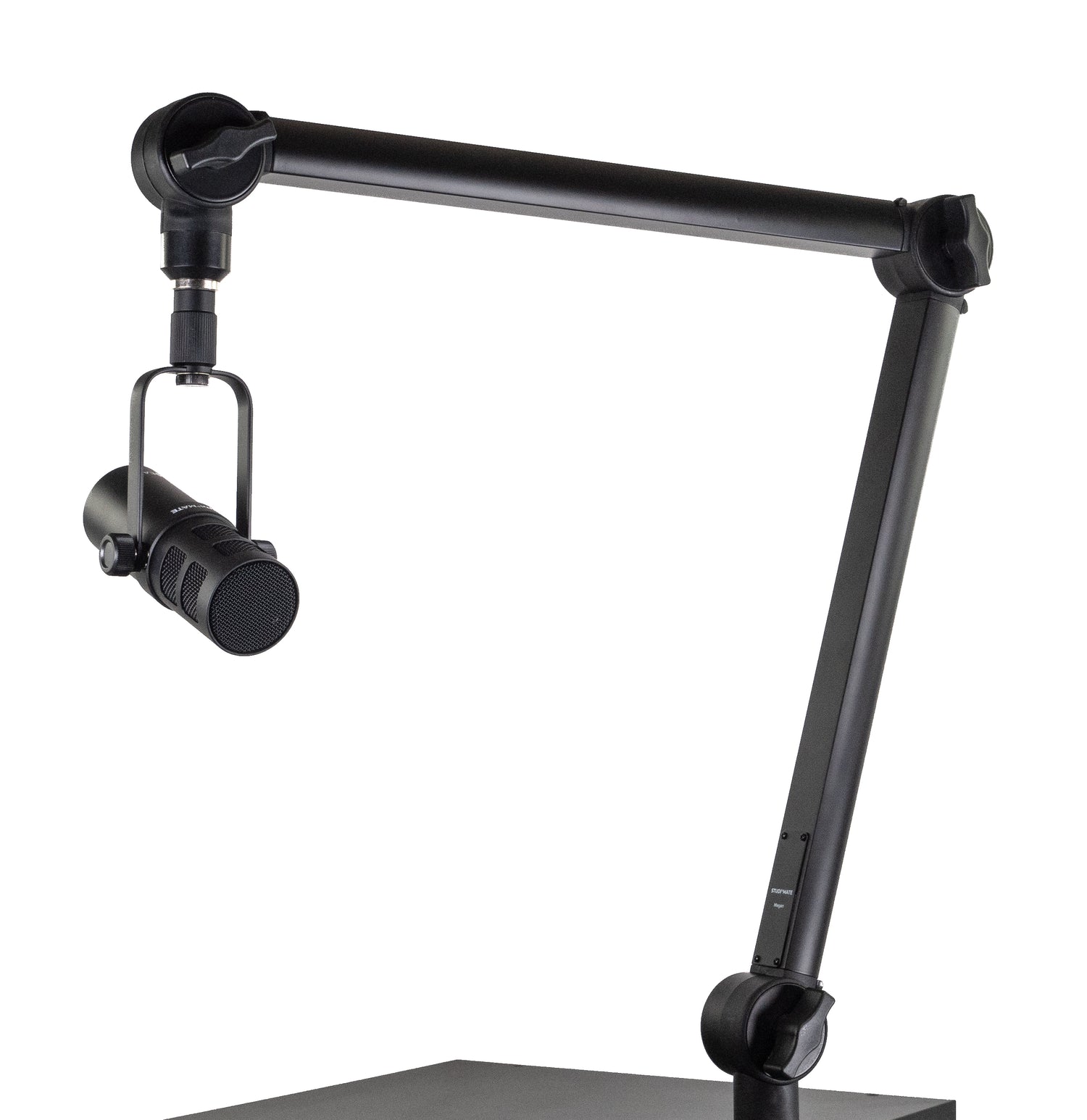

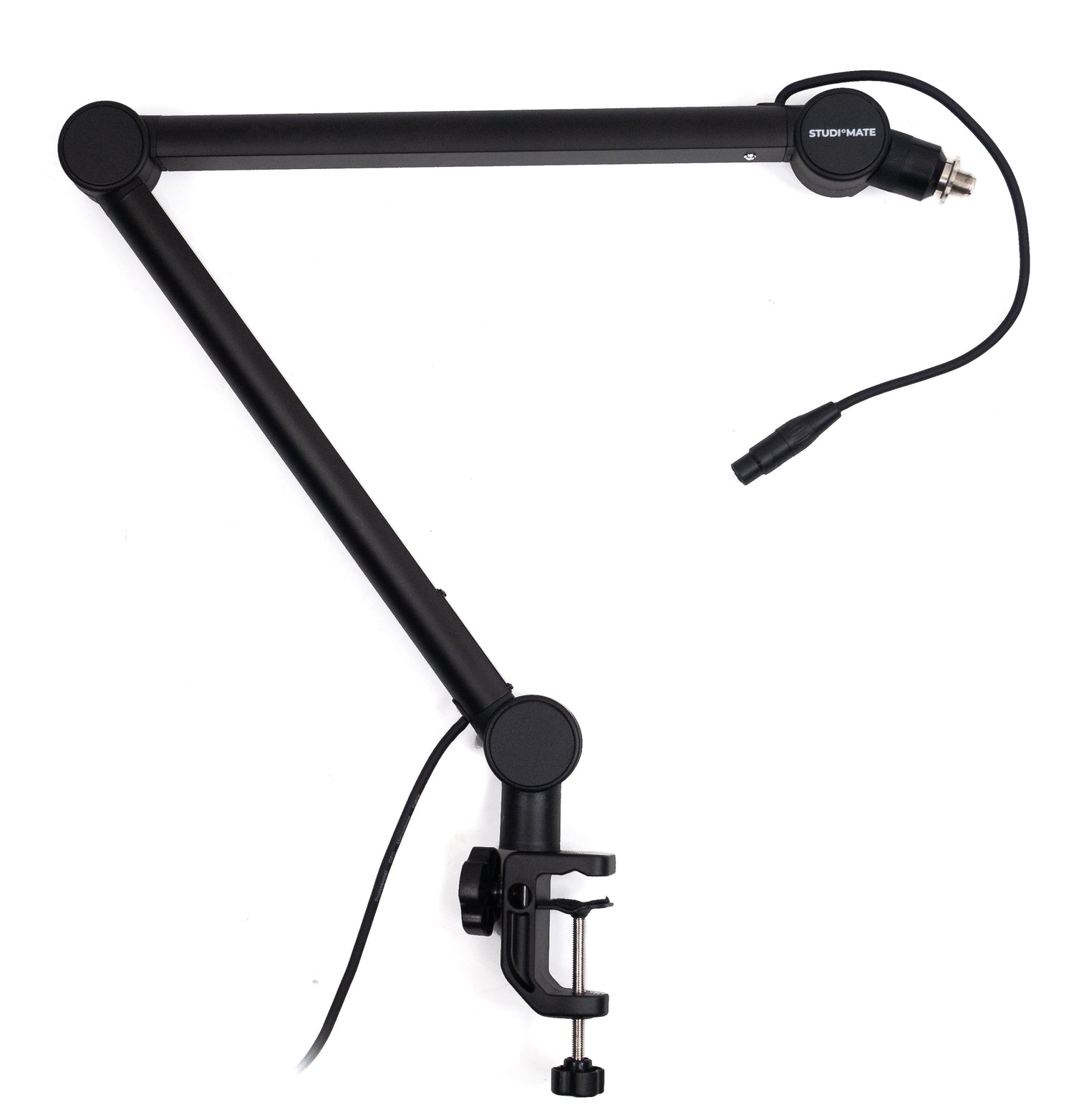

• Stor startpakke med mixer, to mikrofoner, to sæt høretelefoner og to mikrofonstativer
• Kompakt 5-kanals streaming mixer med høj-impedans guitar/bas input.
• Velegnet til podcast, streaming, content creation og studieindspilning.
• To XLR mikrofon inputs med phantom power, stereo line input, otte onscreen lyd/effekt pads.
• Alt-i-én audio streaming hub - oplagt til musikere, undervisere, podcasters m.m.
• Indbyggede GT forstærkere og Boss effekter af superb lydkvalitet taget fra GT-1000 - uanede muligheder for at forme din lyd.
• 32-bit floating point og 48 kHz sampling rate.
• Dedikerede vokal effekter taget fra VE vocal maskinerne.
• Stereo kanaler til gæster og mobile enheder via Bluetooth.

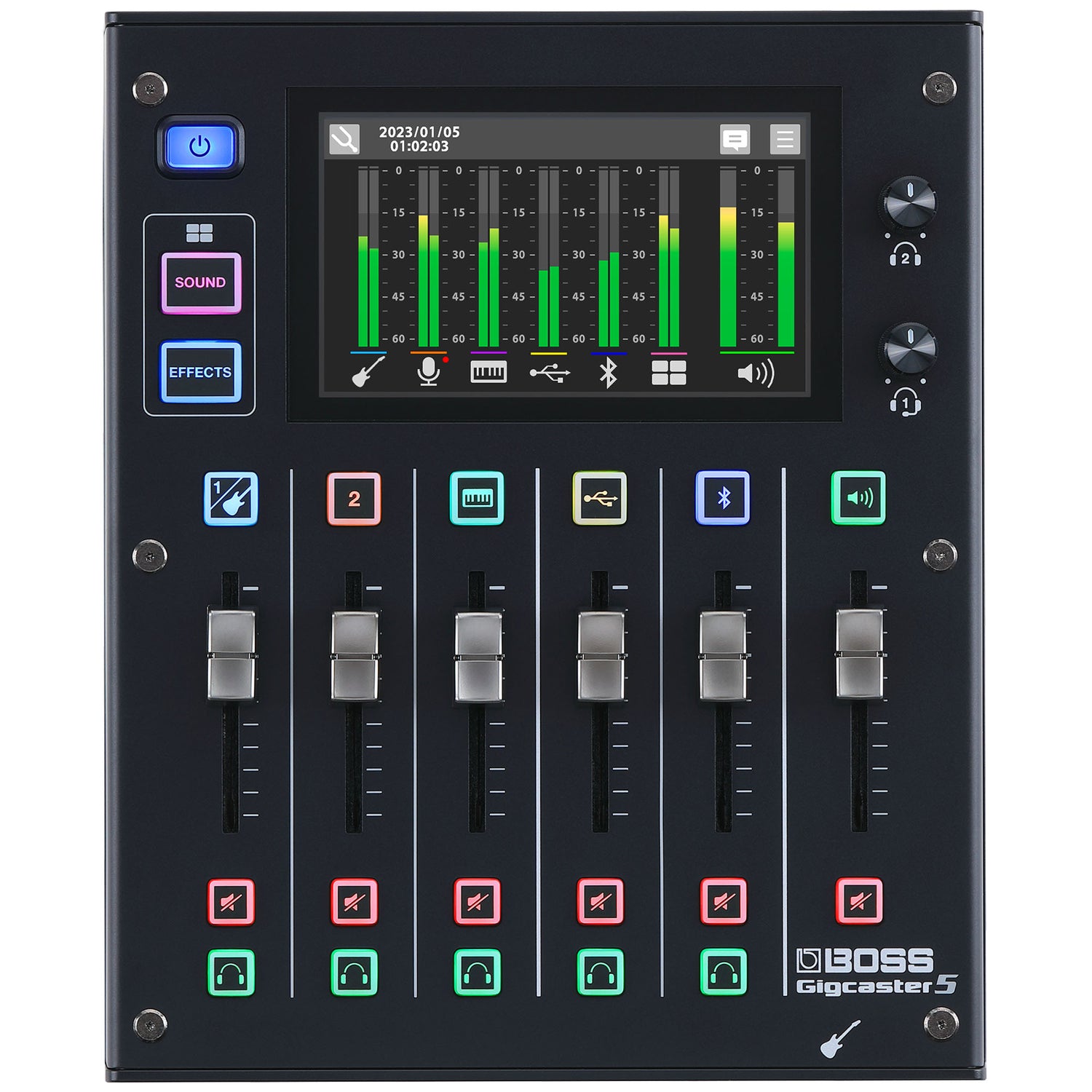

• 4.3" farve display med brugervenligt interface og intuitiv kontrol.

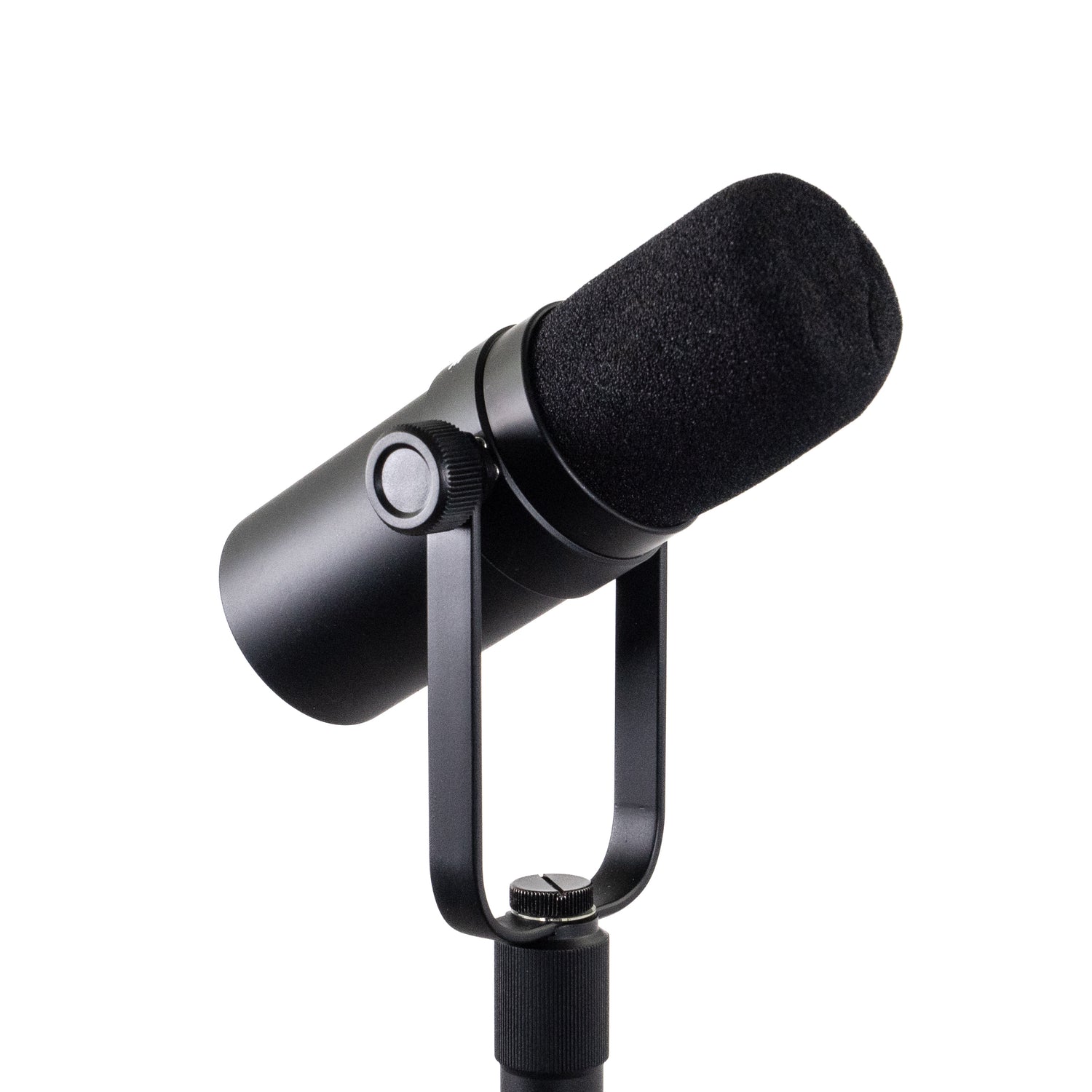

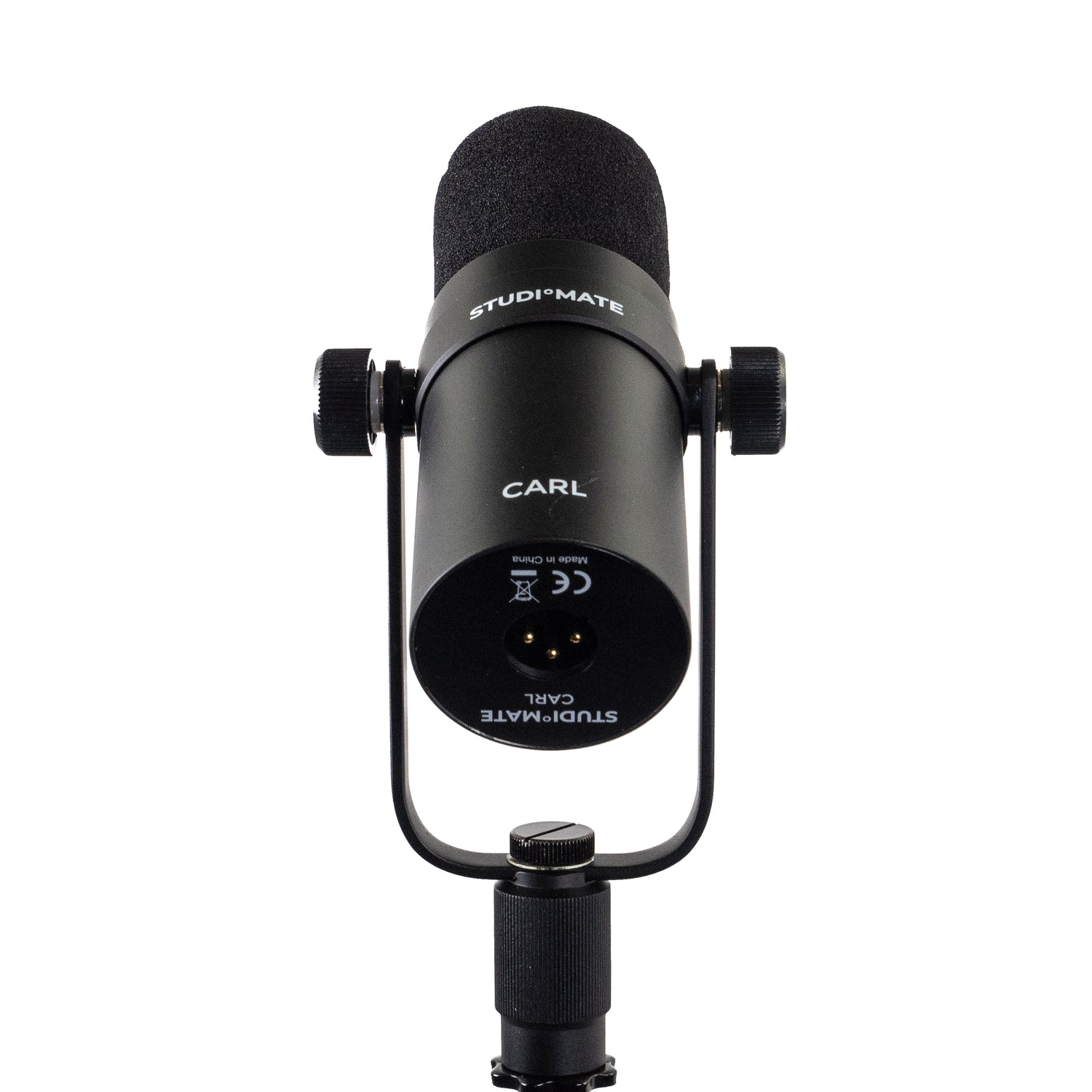

• Dynamisk mikrofon af høj studiekvalitet med et meget neutralt og bredt frekvens spektrum.
• Nyre optagekarakteristikken sørger for superb afvisning af off-axis- og baggrundslyd.
• Monteringsbeslag sørger for minimering af mekanisk støj.
• Integreret popfilter og robust kontrueret med aluminiums-legering.

-Sample Rate
48 kHz

-AD Conversion
24 bits

-DA Conversion
32 bits

- Processing
32-bit floating point

- USB Audio
48 kHz, 32-bit
Input: 16 ch
Output: 12 ch

- Bluetooth
A2DP, HFP

-Effect Patches
GUITAR: 200 (User) + 100 (Preset)
SING: 200 (User) + 30 (Preset)
TALK: 200 (User) + 30 (Preset)

-Number of Effects
GUITAR: 1 CH (DISTORTION, PREAMP, EQ, NS, PEDAL FX, FX1, FX2, FX3, DELAY/REVERB)
SING: 2 CH (COMP, NHANCE, DESS, EQ, NS, PITCH CORRECT, HARMONY, FX1, FX2, FX3, DELAY/REVERB)
TALK: 3 CH (COMP, ENHANCE, DESS, EQ, NS, FX1, FX2)
CONSOLE: 5 CH (COMP, ENHANCE, DESS, NS, FX)
OUTPUT: COMP, REVERB

-Nominal Input Level(Adjustable)
GUITAR INPUT: -10 dBu
MIC INPUT 1, 2: -40 dBu
INST INPUT (L/R): -10 dBu

-Input Impedance
GUITAR INPUT: 1M ohms
MIC INPUT 1, 2: 5.6 k ohms
INST INPUT (L/R): 100 k ohms

-Nominal Output Level
OUTPUT L, R: -10 dBu

-Output Impedance
OUTPUT L, R: 1 k ohms
PHONES1, 2: 47 ohms

-Recommended Load Impedance
OUTPUT L, R: 10 k ohms or greater

-Display
Color Graphic LCD (480 x 272 dots) Touch screen

-Controls
CH 1--5 EDIT button, OUTPUT EDIT button,
CH 1--5 MUTE button, OUTPUT MUTE button,
CH 1--5 MONITOR button,
EFFECTS button, SOUND button,
CH 1--5 LEVEL slider, OUTPUT LEVEL slider,
PHONES 1, 2 LEVEL knob

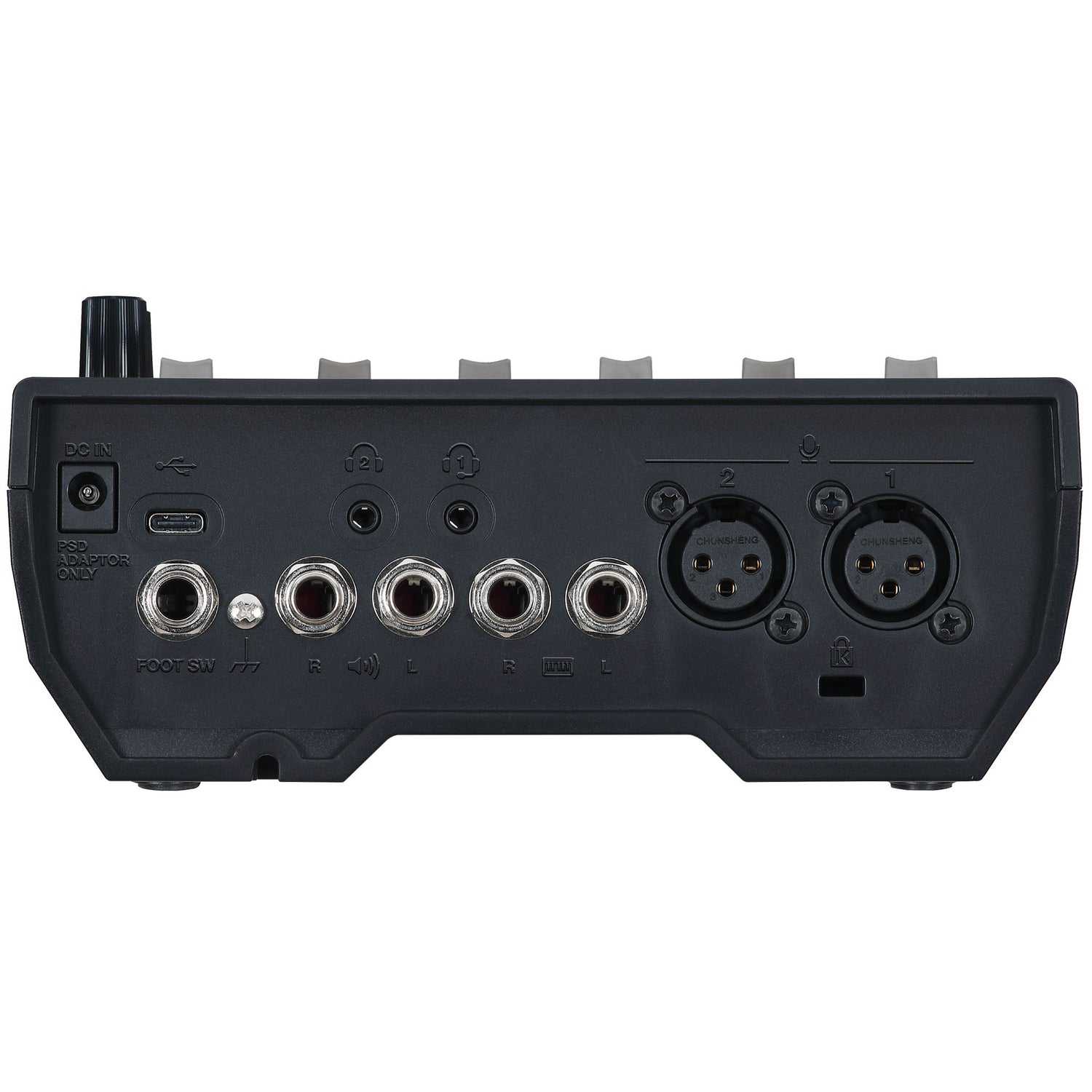

-Connectors
GUITAR IN jack: 1/4-inch phone type
MIC INPUT 1, 2 jacks: XLR type, balanced, phantom power: DC 48 V, 10 mA Max
INST INPUT (L, R) jacks: 1/4-inch phone typ
OUTPUT (L, R) jacks: 1/4-inch phone type
PHONES1 jack: Stereo miniature phone type (CTIA)
PHONES2 jack: Stereo miniature phone type
FOOT SW jack: 1/4-inch TRS phone type
USB port: USB type C
DC IN jack

-Power Supply
AC adaptor (PSD series)
USB BUS Power

-Current Draw
1.6 A (with phantom power)
1.5 A (without phantom power)

-Dimensions
177 (W) x 216 (D) x 78 (H) mm

-Weight (including battery)
0.96 kg

-Accessories
Owner's manual
Leaflet "USING THE UNIT SAFELY"

-Options (sold separately)
AC adaptor: PSD series
Footswitch: FS-5U
Dual Footswitch: FS-6
Expression Pedal: FV-500L, FV-500H, Roland EV-5

0 dBu = 0.775 Vrms
