Beskrivelse
Beskrivelse

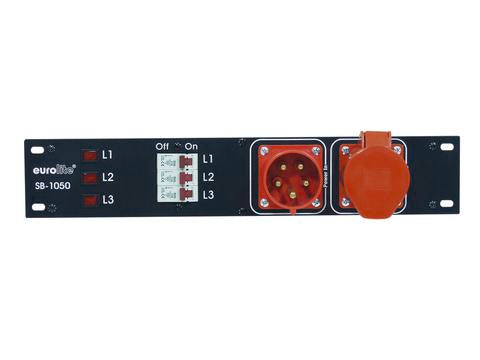

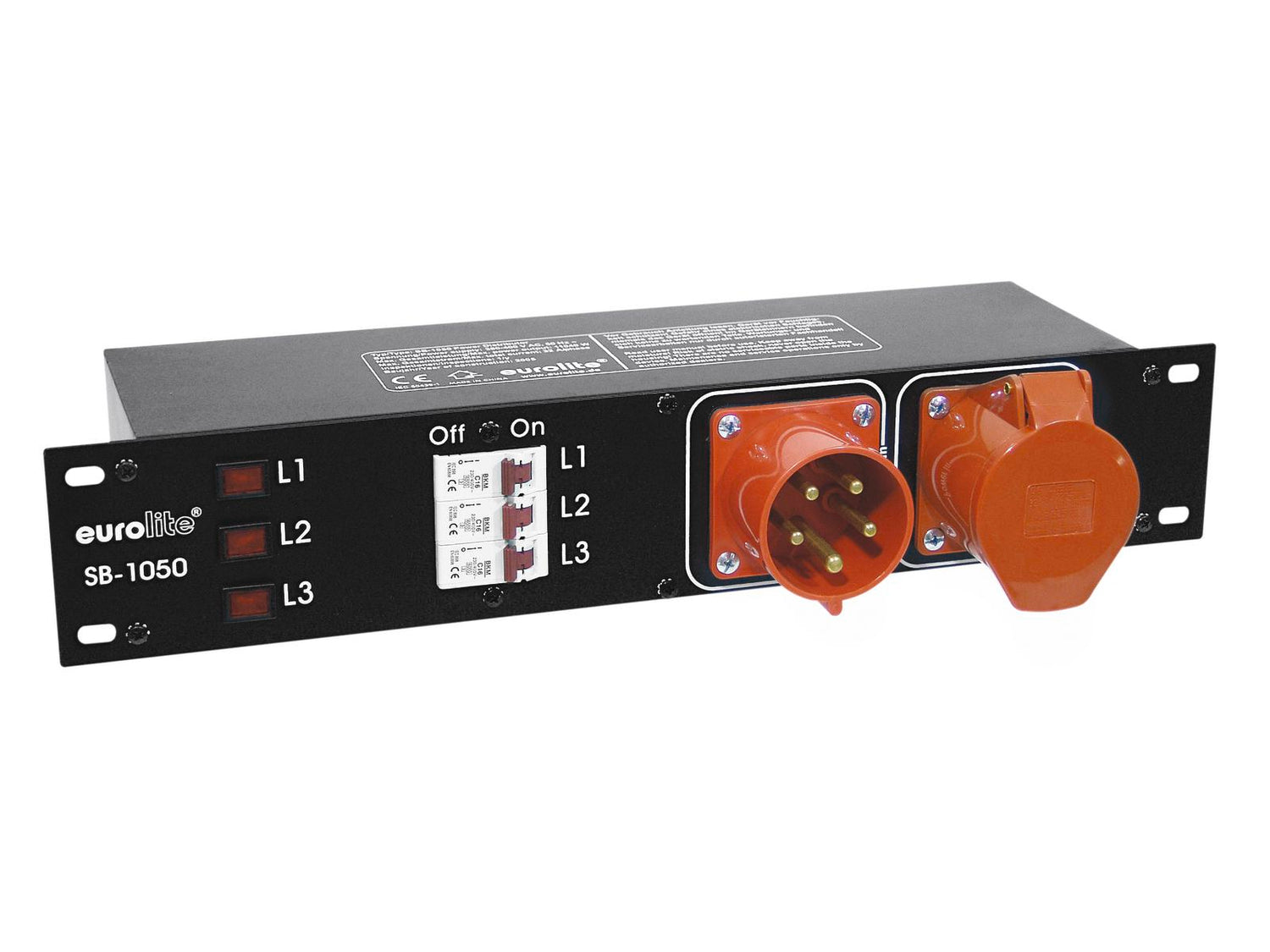

- Designed for mounting in 483 mm racks (19")
- 2U necessary for installation
- 32A three phase current input and output via mounted plugs
- Control lamps indicate each phase

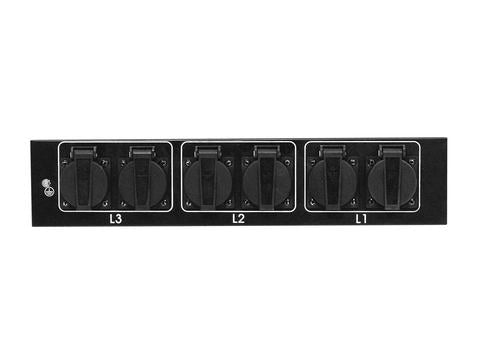

- 6 safety sockets on the housing back (2 per phase)
- Fuse protection via C16A circuit breaker
Tekniske specifikationer
Tekniske specifikationer
| Power supply: | 380-400 V AC, 50 Hz ~ |
| Max. power: | 22080 W |
| Max. power/phase: | 7360 W |
| Max. current/phase: | 32 A |
| Fuse: 3 x C16A 1 ph circuit breakers | |
| Height: | 2 U |
| Dimensions (LxWxH): | 485 x 215 x 90 mm |
| Weight: | 2.9 kg |
| Shipping weight: | 3.26 kg |
