Yamaha MG20XU Mixer
6.656 kr.
7.053 kr.
Stk. pris
/
Ikke tilgængelig
Beskrivelse
Beskrivelse
- 20-kanals livemixer
- 16 mic/ 20 line inputs
- PAD-switch + phantom power
- D-PRE mic preamps + kompressorer
- 24 indbyggede effekter

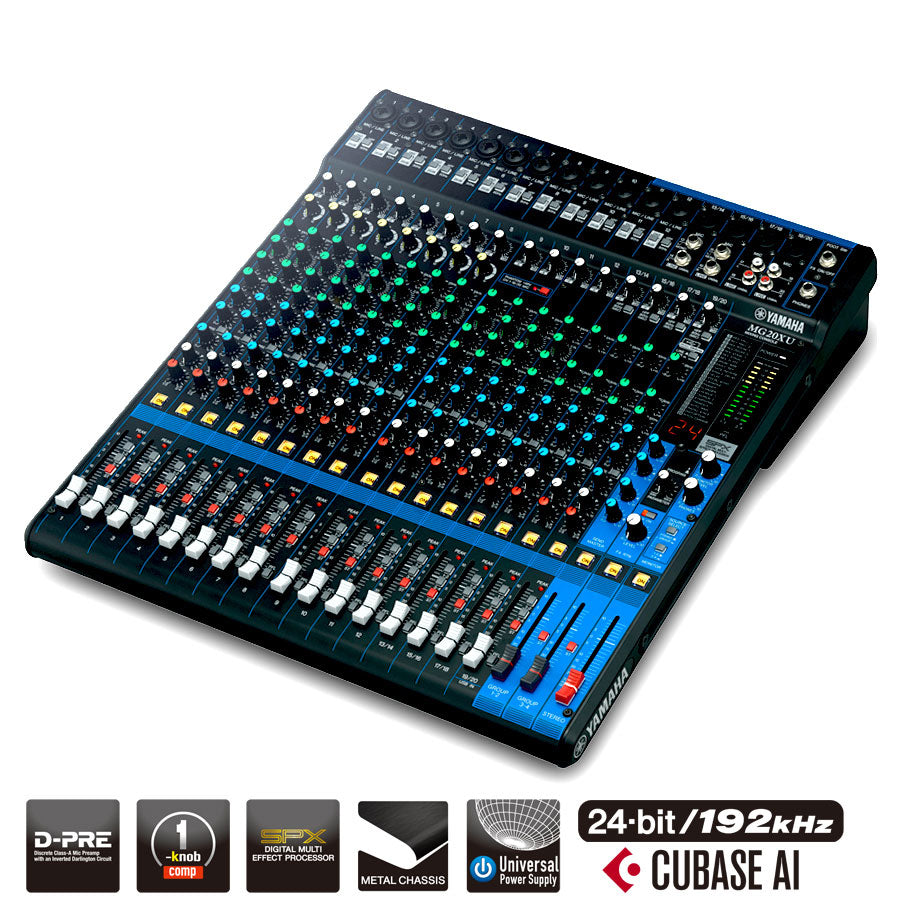

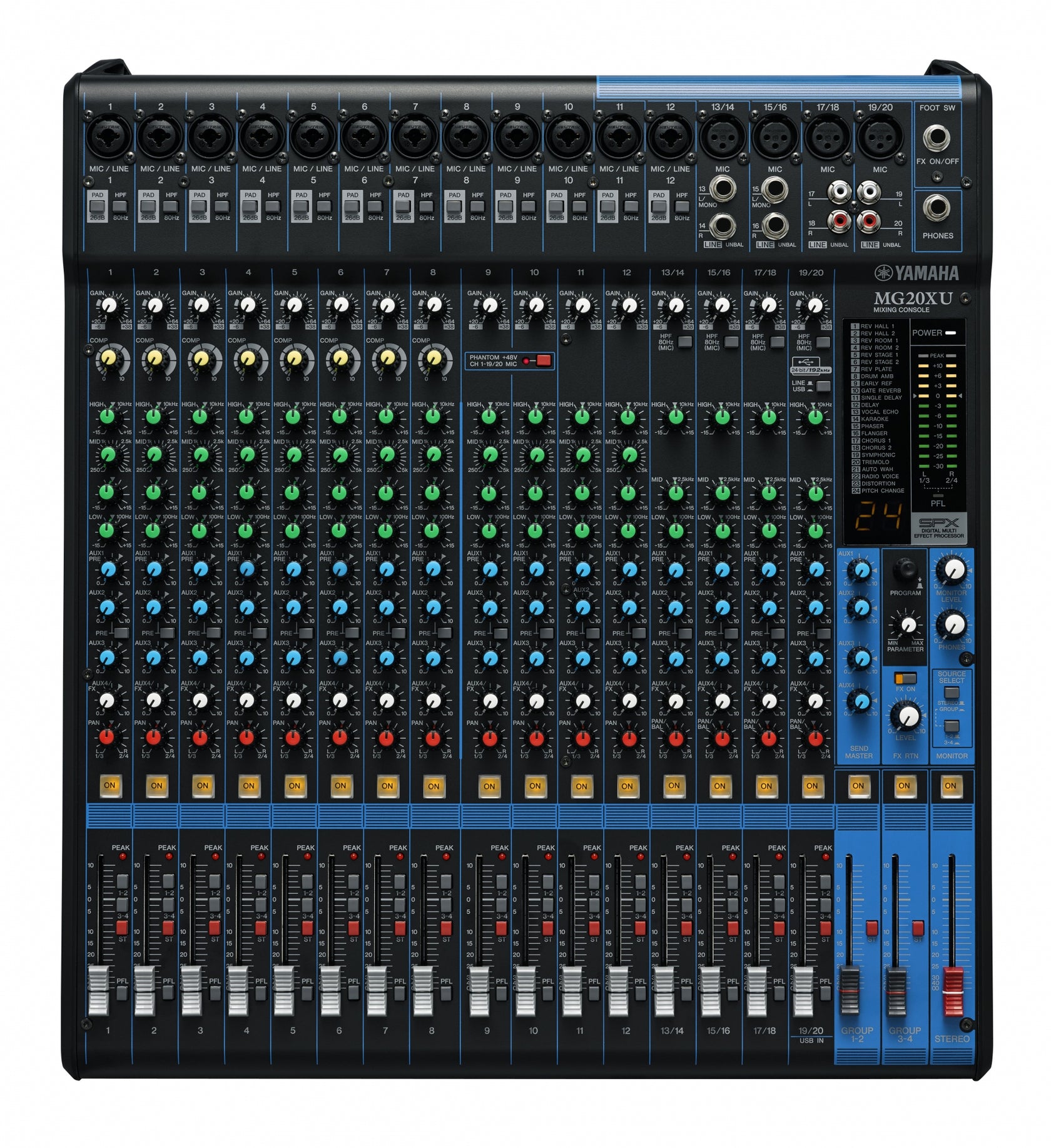

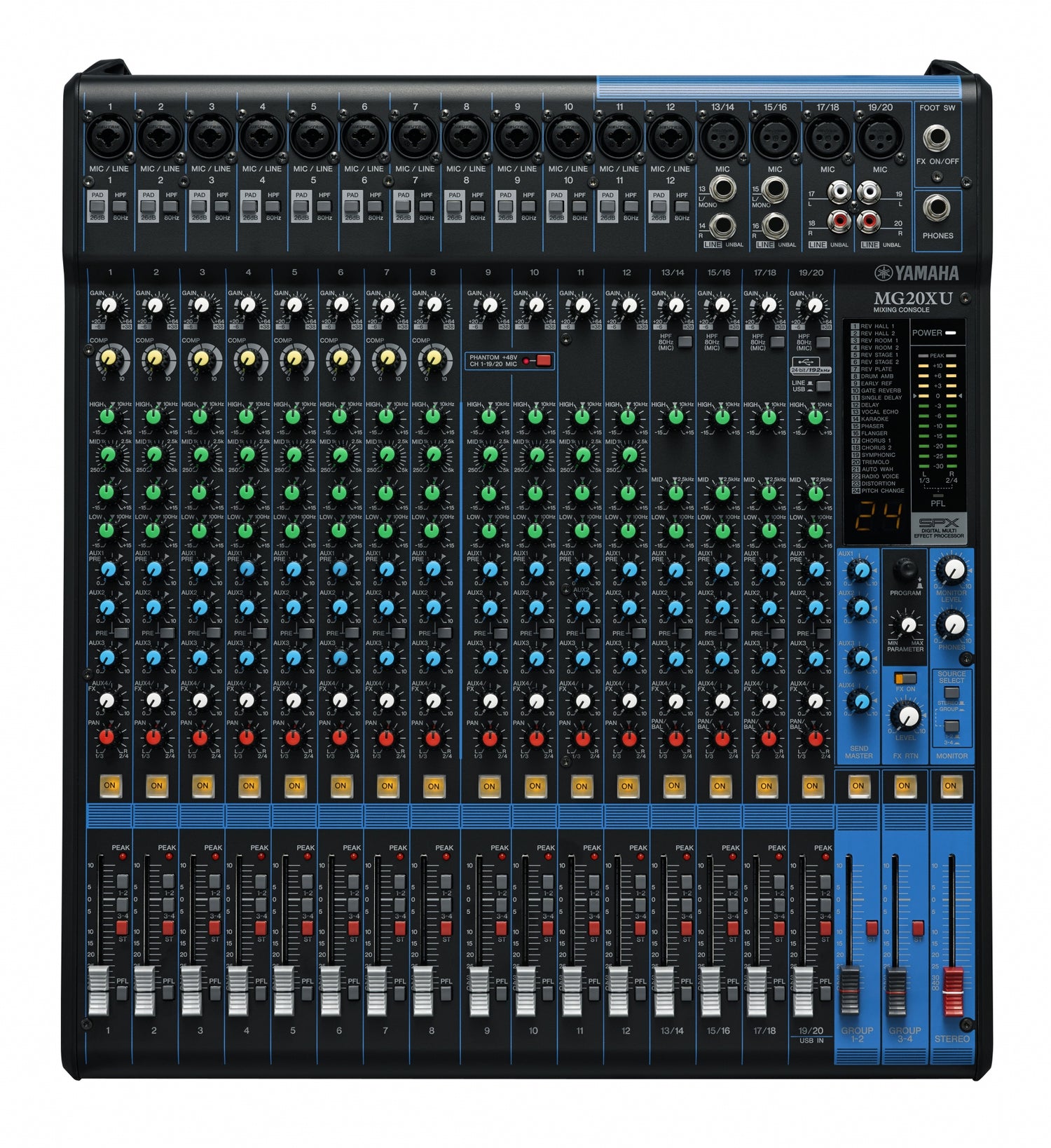

Yamaha MG20XU Livemixer
Yamaha MG20XU er en 20-kanals livemixer med 16 mic/ 20 line inputs (12 mono + 4 stereo), 4 GROUP busser, 4 AUX, 1-knaps kompressorer, PAD-switch på mono inputs, 48 V phantom power, 3-bånds EQ og high pass filter, der minimerer uønskede lavfrekvente lyde og dermed giver et renere mix.
MG20XU-modellen er kompatibel med iPad 2 eller nyere og leveres med Cubase AI DAW software til musikproduktion.
D-PRE mic preamps
Yamaha MG20XU er udstyret med klasse A D-PRE mic preamps med operationsforstærkere, der benytter inverteret Darlington-kredsløb, som sikrer mere effekt med lavere impedans. D-PRE preampen har bred frekvensgang til håndtering af alle lydsignaler.
SPX med 24 effekter
MG20XU adskiller sig Yamaha MG20 ved at have SPX digital effektprocessor indbygget, der giver mixeren et udvalg af 24 forskellige effekter til mix. Du får både chorus, flanger, distortion, reverb og delay mm., som alle har justerbare parametre, der kan tilpasses din unikke mix.
Tekniske specifikationer
Tekniske specifikationer
Features | |
| 20-Channel Mixing Console | |
| Max. 16 Mic / 20 Line Inputs (12 mono + 4 stereo) | |
| 4 GROUP Buses + 1 Stereo Bus | |
| 4 AUX (incl. FX) | |
| “D-PRE” mic preamps with an inverted Darlington circuit | |
| 1-Knob compressors | |
| High-grade effects: SPX with 24 programs | |
| 24-bit/192kHz 2in/2out USB Audio functions | |
| Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter | |
| Includes Cubase AI DAW software download version | |
| PAD switch on mono inputs | |
| +48V phantom power | |
| XLR balanced outputs | |
| Internal universal power supply for world-wide use | |
| Rack Mount Kit Included | |
| Metal chassis | |
Outline | |
| Mixing capability | |
| On-board processors: | SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) |
| I/O | |
| Phantom power: | +48 V |
| Digital I/O: | USB Audio Class 2.0 compliant Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit |
| Input Channels | |
| Mono[MIC/LINE]: | 12 |
| Mono/Stereo[MIC/LINE]: | 4 |
| Output Channels | |
| STEREO OUT: | 4 |
| MONITOR OUT: | 4 |
| PHONES: | 1 |
| AUX SEND: | 4 |
| GROUP OUT: | 4 |
| Bus: | Stereo: 1, GROUP: 4, AUX: 4 (incl. FX) |
| Input Channel Function | |
| PAD | 26 dB (Mono) |
| HPF | 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) |
| COMP | 1-knob compressor (Gain/Threshold/Ratio) |
| Threshold: | +22 dBu to -8 dBu |
| Ratio: | 1:1 to 4:1 |
| Output level: | 0 dB to 7 dB |
| Attack time: | approx. 25 msec |
| Release time: | approx. 300 msec |
| EQ HIGH | |
| Gain: | +15 dB/-15 dB |
| Frequency: | 10 kHz shelving |
| EQ MID | |
| Gain: | +15 dB/-15 dB |
| Frequency: | Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking |
| EQ LOW | |
| Gain: | +15 dB/-15 dB |
| Frequency: | 100 Hz shelving |
| PEAK LED: | LED turns on when post EQ signal reaches 3 dB below clipping |
| Level Meter: | 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] |
General specifications | |
| Total harmonic distortion: | 0.03 % @ +14dBu (20 Hz to 20kHz) |
| GAIN knob: | Min, 0.005 % @ +24dBu (1kHz) |
| GAIN knob: | Min |
| Frequency response: | +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, |
| GAIN knob: | Min |
| Hum & noise level | |
| Equivalent input noise: | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
| Residual output noise: | -102 dBu (STEREO OUT, STEREO master fader: Min) |
| Crosstalk: | -78 dB |
| Power requirements: | AC 100 – 240 V, 50 / 60 Hz |
| Power consumption: | 36 W |
| Dimensions (WxHxD): | 444 mm (17.5") x 130 mm (5.1") x 500 mm (19.7") |
| Net weight: | 7.1kg (15.7 lbs.) |
| Included Accessory: | Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Rack-mount kit, Optional Accessory: Foot Switch FC5 |
| Others: | Operating Temperature: 0 to +40˚C |
