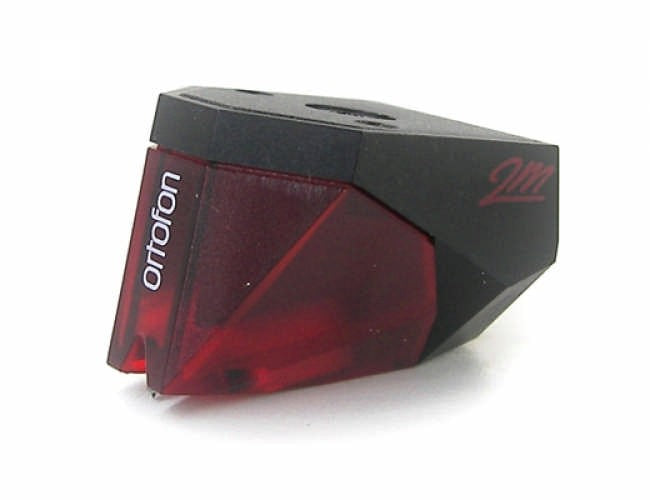

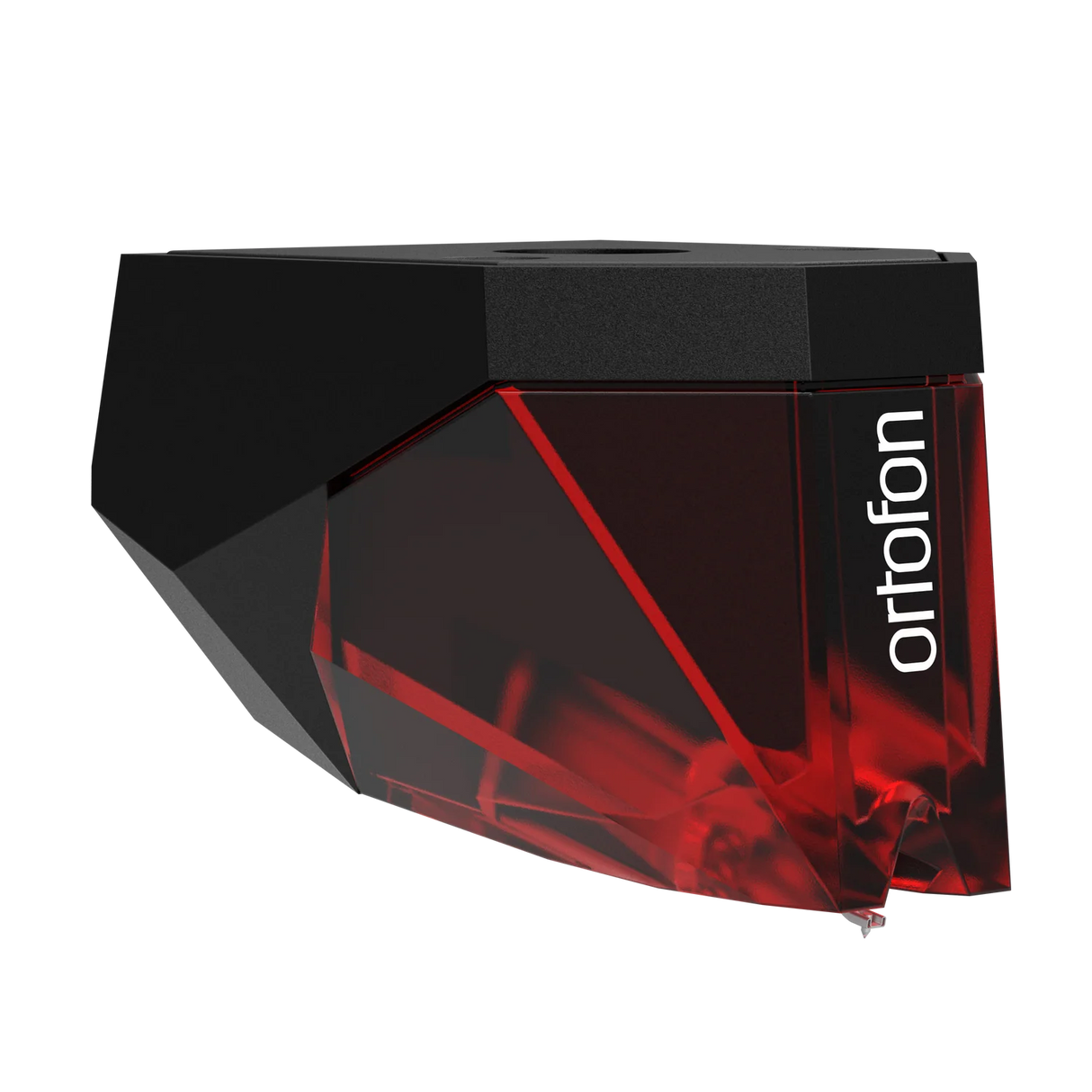

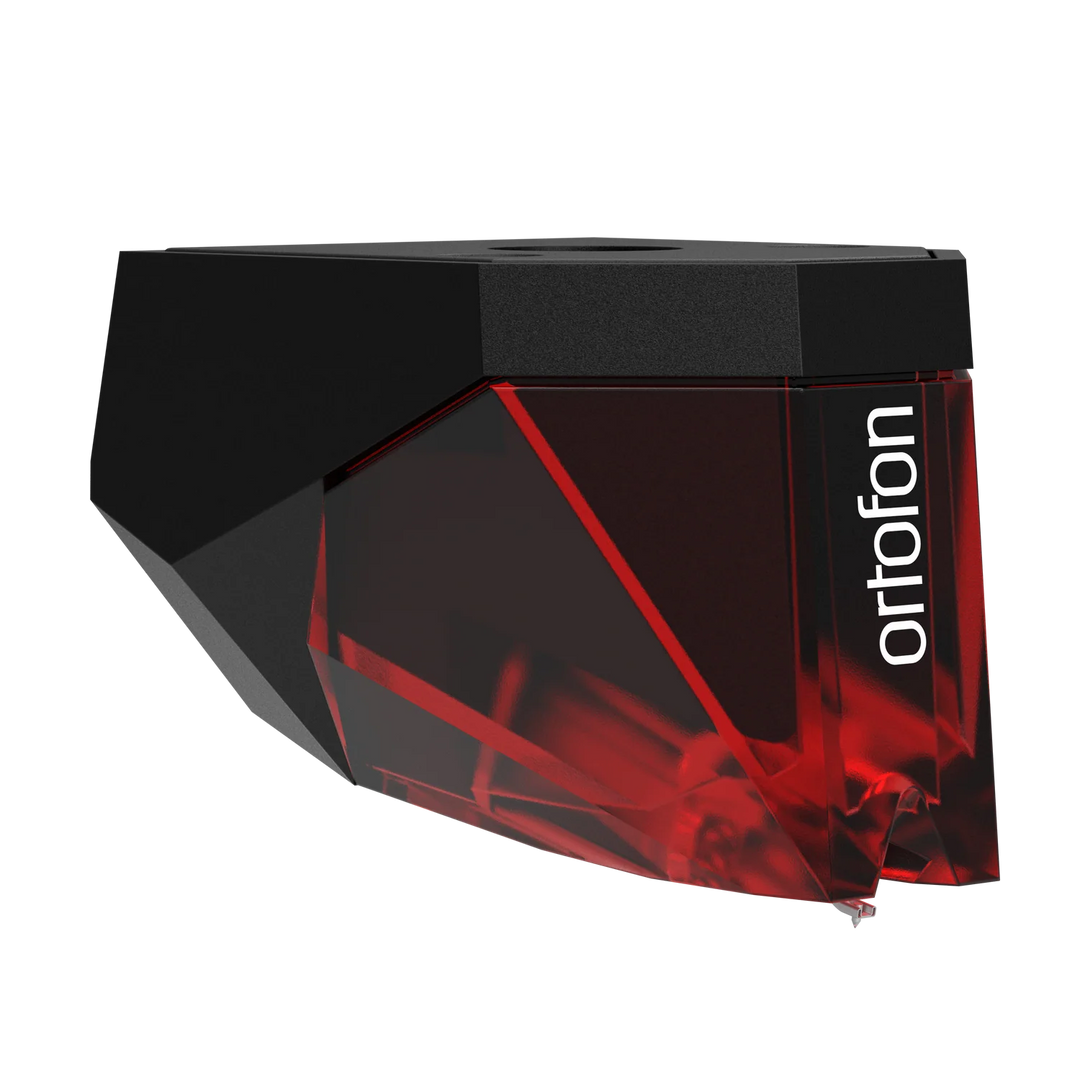

Ortofon 2M Red Pick-up

Baseret på 19 anmeldelser

Ortofon 2M Red Pick-up


The 2M Series of cartridges is designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the record sound as accurate as possible, without coloring the sound

The name 2M was selected among several ideas. We wanted a modern name that would be easy to pronounce and to remember, and therefore an alpha numerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

The 2M series of cartridges feature Ortofon?s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and Super OM series.

We have optimized the design for ease of mounting the cartridge, weight and size to fit the most common turntables at the market today. 2M Series provides excellent compatibility in an assortment of playback systems and with a wide variety of phono preamps.


675 kr.

Billigst på PriceRunner
Vi prismatcher i
Tilbehør der passer til
stk.
Afhent på lager 0,-
GLS - pakkeshop 59,-
GLS - Erhvervslevering 59,-
GLS - hjemmelevering 99,-
Danske fragtmænd* 299,-

Læs mere om levering





  • 2M Red-serien er udstyret med en forbedret motor, som giver en øget produktion af 5.5mV

  • Den indeholder en elliptiske diamant og split pole pins med en kobbertråd






Ortofon 2M Red Pick-up


The 2M Series of cartridges is designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the record sound as accurate as possible, without coloring the sound

The name 2M was selected among several ideas. We wanted a modern name that would be easy to pronounce and to remember, and therefore an alpha numerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

The 2M series of cartridges feature Ortofon?s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and Super OM series.

We have optimized the design for ease of mounting the cartridge, weight and size to fit the most common turntables at the market today. 2M Series provides excellent compatibility in an assortment of playback systems and with a wide variety of phono preamps.



Varenr.: ORT-0560001
EAN: 5705796080018
Vægt (kg.) 0,1
Output voltage at 1000 Hz, 5cm/sec. 5,5 mV
Channel balance at 1 kHz  1,5 dB
Channel separation at 1 kHz 22 dB
Channel separation at 15 kHz 15 dB
Frequency range at - 3dB 20-22.000 Hz
Frequency response 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force 70 µm
Compliance, dynamic, lateral 20 µm/mN
Stylus type Elliptical
Stylus tip radius r/R 8/18 µm
Tracking force range 1,6-2,0g (16-20 mN)
Tracking force, recommended 1,8 g (18 mN)
Tracking angle 20°
Internal impedance, DC resistance 1,3 kOhm
Internal inductance 700 mH
Recommended load resistance 47 kOhm
Recommended load capacitance 150-300 pF
Cartridge colour, body/stylus Black/Red
Cartridge weight 7,2 g
Replacement stylus unit 2M Red (interchangeable with 2M Blue)
Stylus protection guard 2M Red
