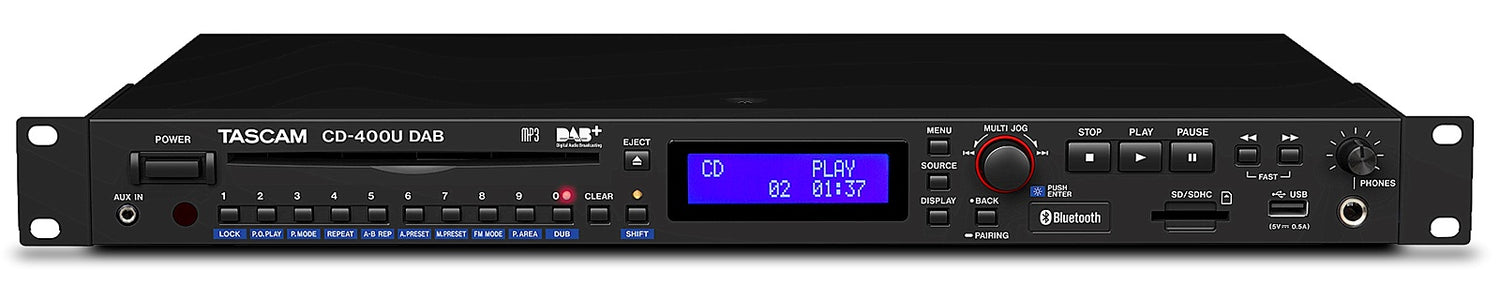

Tascam CD-400U DAB media player CD/USB/SD med DAB og FM

Tascam CD-400U DAB

CD-400UDAB er en kompakt rackmonterbar medieafspiller, der kan afspille tracks fra cd, USB-hukommelses-enheder, SD-kort og Bluetooth-enheder. Den indeholder også en FM/DAB+ tuner med 20 forudindstillinger til at afspille musik fra radiostationer og en mini-jack-indgang på frontpanelet til at forbinde enheder som bærbare musikafspillere. Tuneren har sin egen udgang, så det er muligt at få forskellig lyd/musik i to lokaler.

Fjernbetjening er mulig med den medfølgende trådløse RC-CD400 og ved seriel kontrol via den indbyggede RS-232C-port. Denne all-in-one cd-afspiller er egnet til en bred vifte af applikationer, fra baggrundsmusik i restauranter eller små butikker til brug i offentlige faciliteter.

Ultra-compact, rack-mountable media player with DAB+/FM tuner and Bluetooth receiver

Various playback options: Audio CD playback

MP3 and WMA file playback from CD

Audio file playback from SD and USB memory (MP3, AAC, WAV, WMA)

DAB+/FM radio playback (can be output from the main or separate output connectors)

Playback via Bluetooth connection with a smartphone or computer

Playback from other audio sources via AUX IN connector

CD standards supported: CD-DA, CD-ROM, CD-R, CD-RW (CD-DA format only)

Slot-loading CD drive mechanism

Numeric keys for direct track selection

Playback modes include Continuous, Single, Random

Repeat playback (All, Single, A-B)

Incremental play (skip to each next track by pressing the PLAY button; available for CD, USB, SD)

Resume function (start playback from the track where the unit was last stopped)

Folder playback with SD and USB memory

Dubbing from CD or tuner to SD or USB memory (MP3 format)

Time display (track elapsed / track remain / total elapsed / total remain)

Power-on play (timer function)

Lock function to avoid accidental operation

Anti-shock memory

XLR balanced analogue output (main)

RCA unbalanced analogue output (main)

RCA unbalanced analogue output (tuner)

Remote control via RS-232C serial connector (D-sub 9-pin)

Optional Ethernet interface card (IF-100E) available for external control over a network (Telnet protocol)

Headphones output with dedicated volume control

Backlit LC display

Wireless remote control included

Included accessory: Removable mains power cable, RC-CD400 wireless remote control, rack-mounting screw kit, FM antenna, owner’s manual with warranty

General

Supported media

USB memory 512 MB - 64 GB

SD card 512 MB - 2 GB

SDHC card 4-32 GB

CD CD-DA, CD-ROM, CD-R, CD-RW (CD-DA format only)

Supported file systems FAT16, FAT32

Supported file formats

CD-DA 44.1 kHz, 16 bit

MP3 44.1 / 48 kHz, 32-320 kbit/s and VBR (MPEG1/2 Audio Layer 3)

WAV (USB/SD only) 44.1/48 kHz, 16 bit

WMA 44.1/48 kHz, 32-320 kbit/s and VBR (WMA v9 standard, DRM not supported)

AAC (USB/SD only) 44.1/48 kHz, 8-320 kbit/s and VBR (MPEG4 AAC-LC audio stream)

Number of audio channels 2 channels (stereo), 1 channel (mono)

Recording file format MP3 (44.1 kHz, 96/128/192/320 kbit/s)

Bluetooth receiver

Bluetooth version v4.2

Output class Class 2

Supported profiles A2DP, AVRCP

Supported A2DP codecs SBC, AAC, aptX

Supported A2DP content protection SCMS-T

Tuner

Frequency range FM: 87.5-108 MHz

DAB: Band III, 174-240 MHz

Antenna connector F-type (female), 50 Ohm, unbalanced

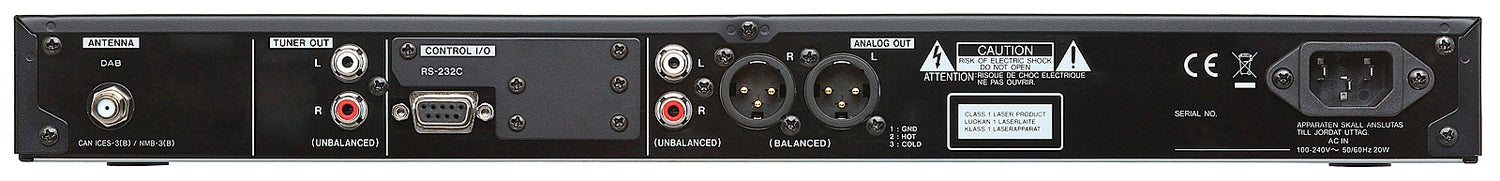

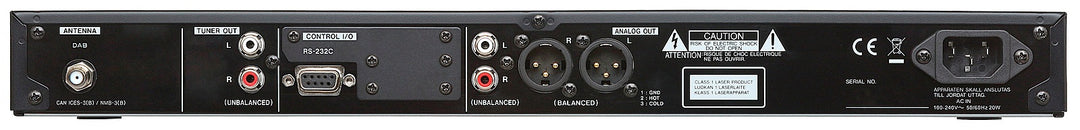

Analogue audio inputs and outputs

AUX analogue audio input (unbalanced) 3.5-mm TRS mini-jack

Nominal input level -20 dBV (0.1 Vrms)

Maximum input level -4 dBV (0.63 Vrms)

Input impedance ≥10 kOhm

Main analogue audio outputs (balanced) XLR-3-32 (1: GND, 2: HOT, 3: COLD)

Nominal output level +4 dBu (1.23 Vrms, Output Attenuation: 0 dB)

Maximum output level +20 dBu (7.75 Vrms, Output Attenuation: 0 dB)

Output impedance 100 Ohm

Main analogue audio outputs (unbalanced) RCA

Nominal output level -10 dBV (0.316 Vrms, Output Attenuation: 0 dB)

Maximum output level +6 dBV (2.0 Vrms, Output Attenuation: 0 dB)

Output impedance 200 Ohm

Tuner analogue audio outputs (unbalanced) RCA

Nominal output level -10 dBV (0.316 Vrms, Output Attenuation: 0 dB)

Maximum output level +6 dBV (2.0 Vrms, Output Attenuation: 0 dB)

Output impedance 200 Ohm

Headphones output 6.3 mm stereo jack

Maximum output power ≥20 mW + 20 mW (THD+N ≤0.1 %, 32 Ohm load)

Control I/O

RS-232C D-sub 9 pin

Audio performance

Frequency response 20 Hz - 20 kHz, ±1 dB (Fs: 44.1 kHz, 48 kHz, JEITA)

Total harmonic distortion ≤0.005 % (JEITA)

S/N ratio ≥95 dB (JEITA)

Dynamic range ≥90 dB (JEITA)

Channel crosstalk ≥90 dB (JEITA)

Power supply and other specifications

Mains power AC 100-240 V, 50/60 Hz

Power consumption 20 W

Overall dimensions (W × H × D) 483 mm × 47 mm × 296 mm

Weight 3.3 kg

Operating temperature range 5-35 °C

Included accessories Removable mains power cord, wireless remote control (RC-CD400), rack-mounting screw kit, FM antenna, owner’s manual/warranty

Optional accessory IF-E100 Ethernet option card, allows the unit to be controlled over a network (Telnet protocol)
