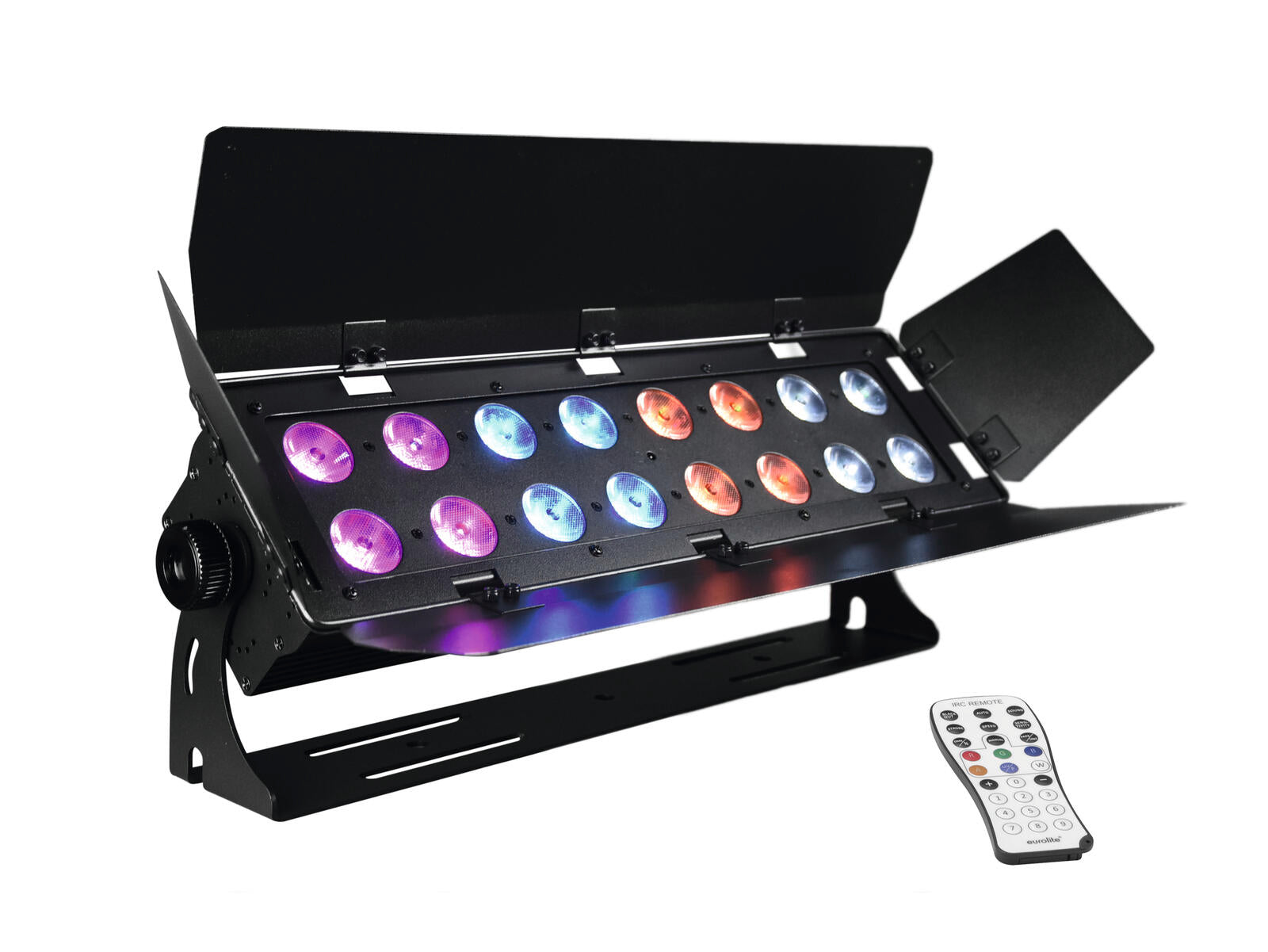

EUROLITE Stage Panel 16 HCL LED
1
af
6
Indlæser...
2.659 kr.
Stk. pris
/
Ikke tilgængelig
Inkl. moms
Fragt 39 kr.
Betalingsmetoder accepteret
Beskrivelse
Beskrivelse
Light effect bar with RGBAW+UV color mixing, with 5-pin QuickDMX connector
- 4 segments for dynamic running lights

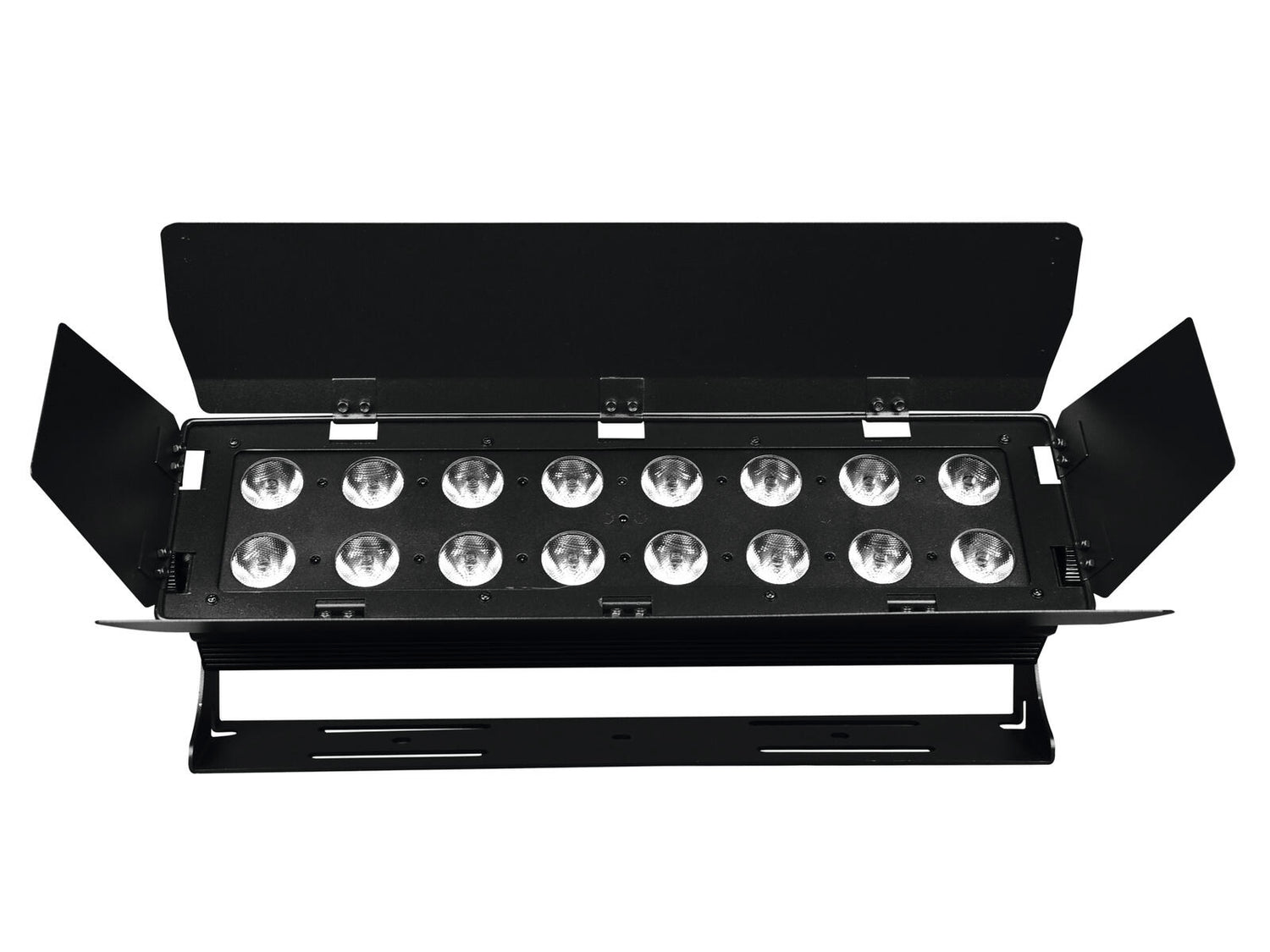

- 4 barn doors to avoid blinding the audience and for protection during transport
- 16 LEDs 12 W high-power 6in1 RGBWA/UV (homogenous color mix)
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
- Strobe effect; UV effect
- Integrated show programs
- Direct color selection for 26 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX; IR remote control; sound to light via microphone; QuickDMX via 5-pin XLR (M) mounting version (optional); master/slave function
- Flicker-free
- With a beam angle of 23°
- With mounting bracket
- 4 digit 7-segment LED display
- Mains input and output for power linking up to 8 units
- For application areas such as: Stage; clubs/dancing school; mobile djs / entertainer; party room; restaurants, bars and hotels
- Silent operation
- Application possibility: Standing; suspended; on stand
Scope of delivery
- 1 x spotlight
- 1 x power cord
- 1 x barndoor
- 1 x remote control
- 1 x battery
- 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 70 W |
| Protection class: | Protection class I |

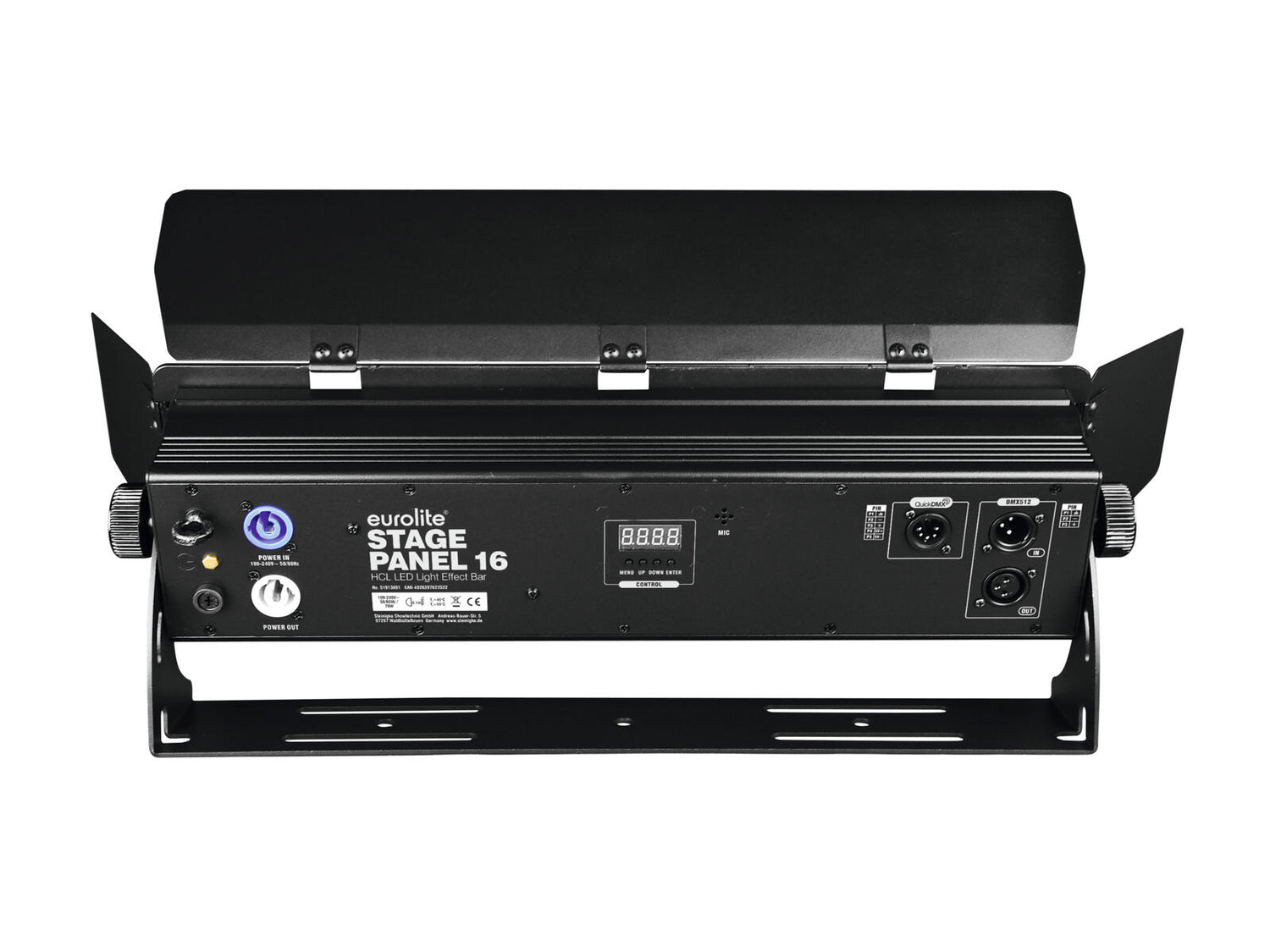

| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x P-Con (gray), mounting version |
| Fuse: | T 1 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 16 x 12 W high-power 6in1 RGBWA/UV (homogenous color mix) |
| Flash rate: | 0.25 - 16 Hz |
| DMX channels: | 2; 3; 5; 6; 8; 11; 24; 32 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; DMX; IR remote control; sound to light via microphone; QuickDMX via 5-pin XLR (M) mounting version (optional); master/slave function |
| Fixtures available for: | LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief |
| Projection: | Flicker-free |
| PWM frequency: | 4700 Hz |
| Beam angle (1/2 peak): | 23° |
| Beam angle (1/10 peak): | 42° |
| Wavelength: | Ultra violet (UV) 400 nm |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| Material: | Metal, painted; aluminum casting |
| Dimensions: | Width: 59.1 cm Depth: 19.9 cm Height: 30.3 cm |
| Weight: | 5.35 kg |
| Noise classification: | Class 0 (no noise at all) |
| Photobiological safety: | Risk Group 0 |
| Mounting bracket | |
| Diameter mounting holes: | 3 x Ø11mm; 4 x Ø10mm |
| Material: | Metal, 3 mm |
| Power cord | |
| Cable construction: | 3 x 1.0 mm² H05VV-F |
| Cable length: | Approx. 1.2 m |
| Barndoor | |
| Material: | Metal, 0.8 mm |
| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
