EUROLITE DXT PoE Art-Net Node I
1
af
5
Indlæser...
1.399 kr.
Stk. pris
/
Ikke tilgængelig
Inkl. moms
Fragt 39 kr.
Betalingsmetoder accepteret
Beskrivelse
Beskrivelse
Art-Net interface for control of 512 DMX channels
- Power supply via 48V PoE switch / PoE injector (802.3af) or 5V USB-C port
- The apps' online fixture library is continuously updated and already includes more than 300 Eurolite and Futurelight fixtures - easily add new ones via the fixture profile editor
- DMX refresh rate: 40 Hz, 30 Hz or 20 Hz
- ArtDMX reception via Broadcast or Unicast
- Configuration with website or Art-Net
- Available settings: IP address / Subnet mask / Art-Net ShortName / Art-Net LongName / Art-Net Net / Art-Net Subnet / Art-Net Universe and DMX refresh rate and DMX in/out via website
- Rugged metal housing
- Can receive and process up to 512 DMX channels
- Can transmit up to 512 DMX channels

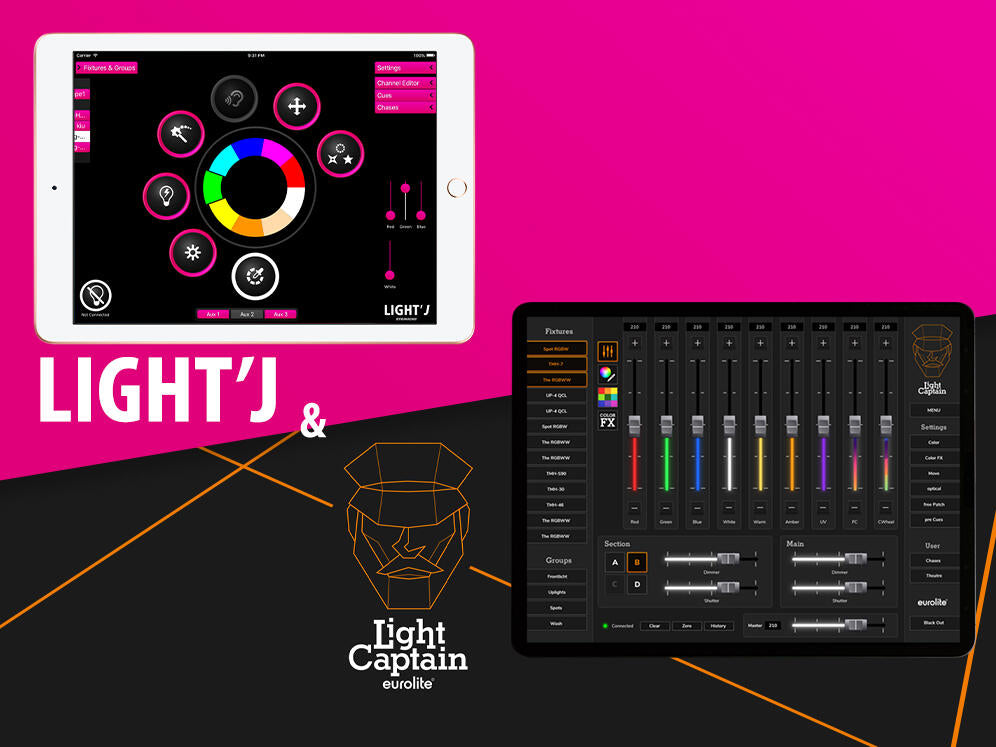

- Control via Art-Net; Light´J app; Light Captain App
- Built with NEUTRIK connector
- Made in Germany
Scope of delivery
| Power supply: | 5V DC 500 mA 37-56V DC |
| Power connection: | Mains input via USB C (W) mounting version power supply cord for USB A mains connection (provided) Mains input via RJ-45 (F) mounting version |
| DMX channels: | Input 512 Output 512 |

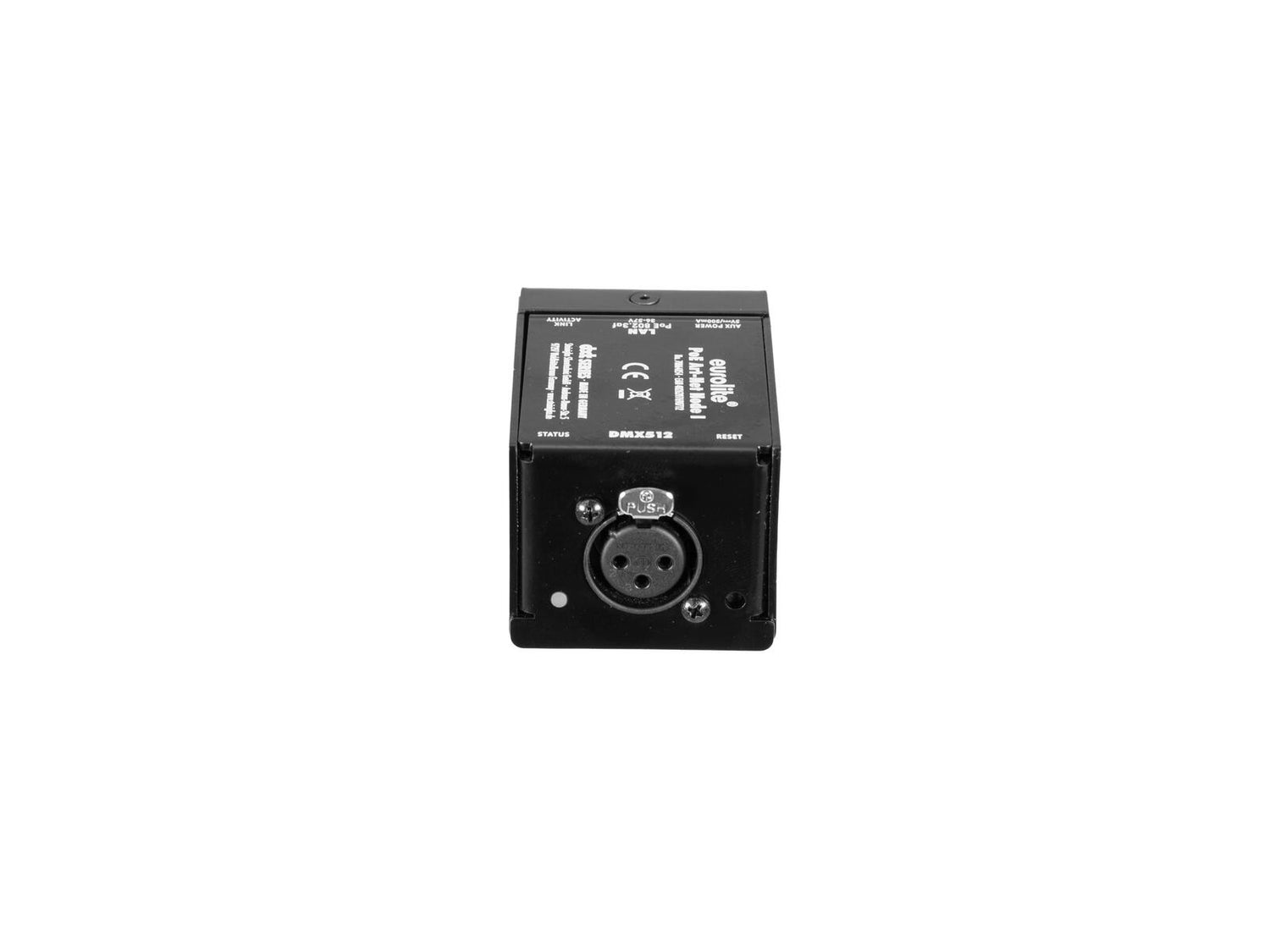

| DMX output: | 1 x 3-pin XLR (F) mounting version |

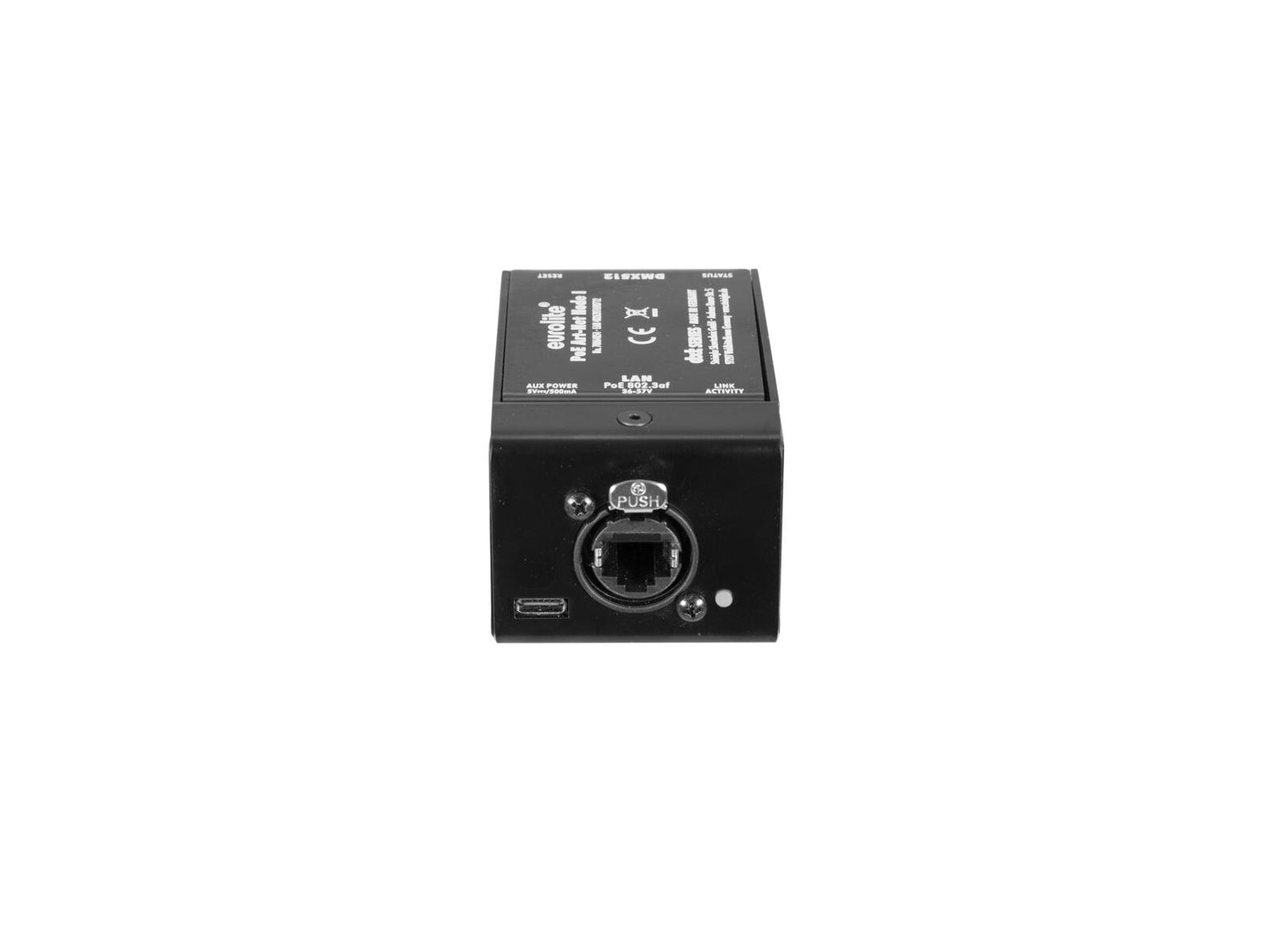

| Network connection: | Protocol: Ethernet TCP/IP via RJ-45 etherCON (F) mounting version, 10/100 Mbit/s |
| Control: | Art-Net; Light´J app; Light Captain App |
| Status LED: | Signal, link |
| Use of brands: | Built with NEUTRIK connector |
| Color: | Black |
| Dimensions: | Width: 7.8 cm Depth: 5 cm Height: 4.2 cm |
| Weight: | 0.29 kg |
