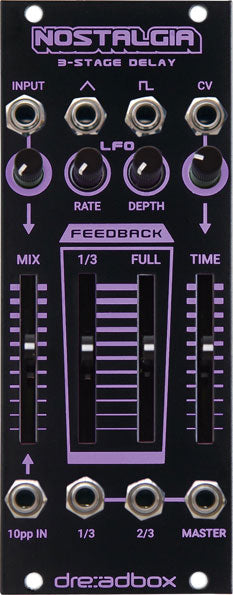

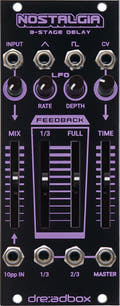

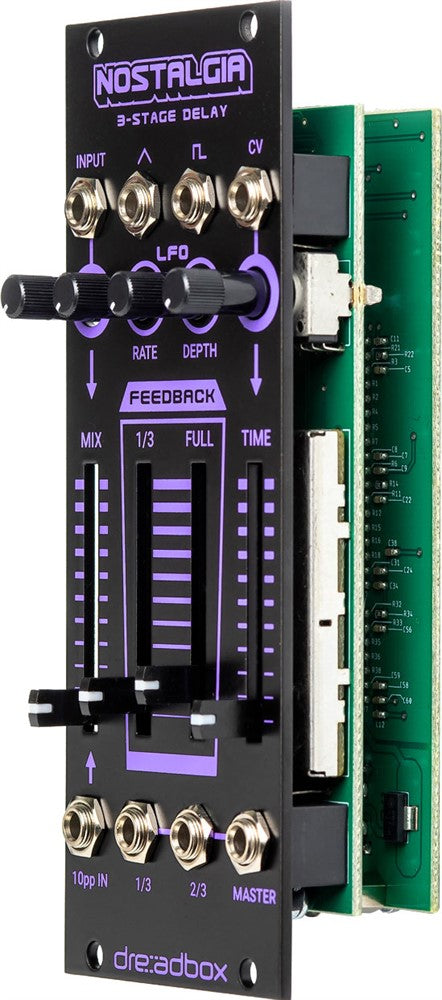

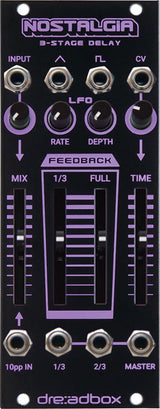

Dreadbox Nostalgia Blacklight Module

Eurorack module. 3-stage hybrid delay based on the Erebus’s circuit. 3x echo circuits in series. Outputs for stage 1 and 2. 2x different feedback controls. LFO with range. Voltage controlled delay time with range from 30 ms up to 1 sec. 10HP.

Features

• 3 Stage Hybrid Delay based on the Erebus’s Circuit
• Consisted of 3 echo circuits in series
• Outputs for stage 1 and 2 (output level is 1/2 lower than the incoming signal)
• 2 different Feedback controls for different stages
• LFO with range
• Voltage Controlled Delay Time with range from 30ms up to 1sec
• Separate input for modular level signals
• And separate input for signals up to guitar levels
• Power Consumption: 117mA @ +12V , 25mA @ -12V
• 35mm depth
• 10HP
