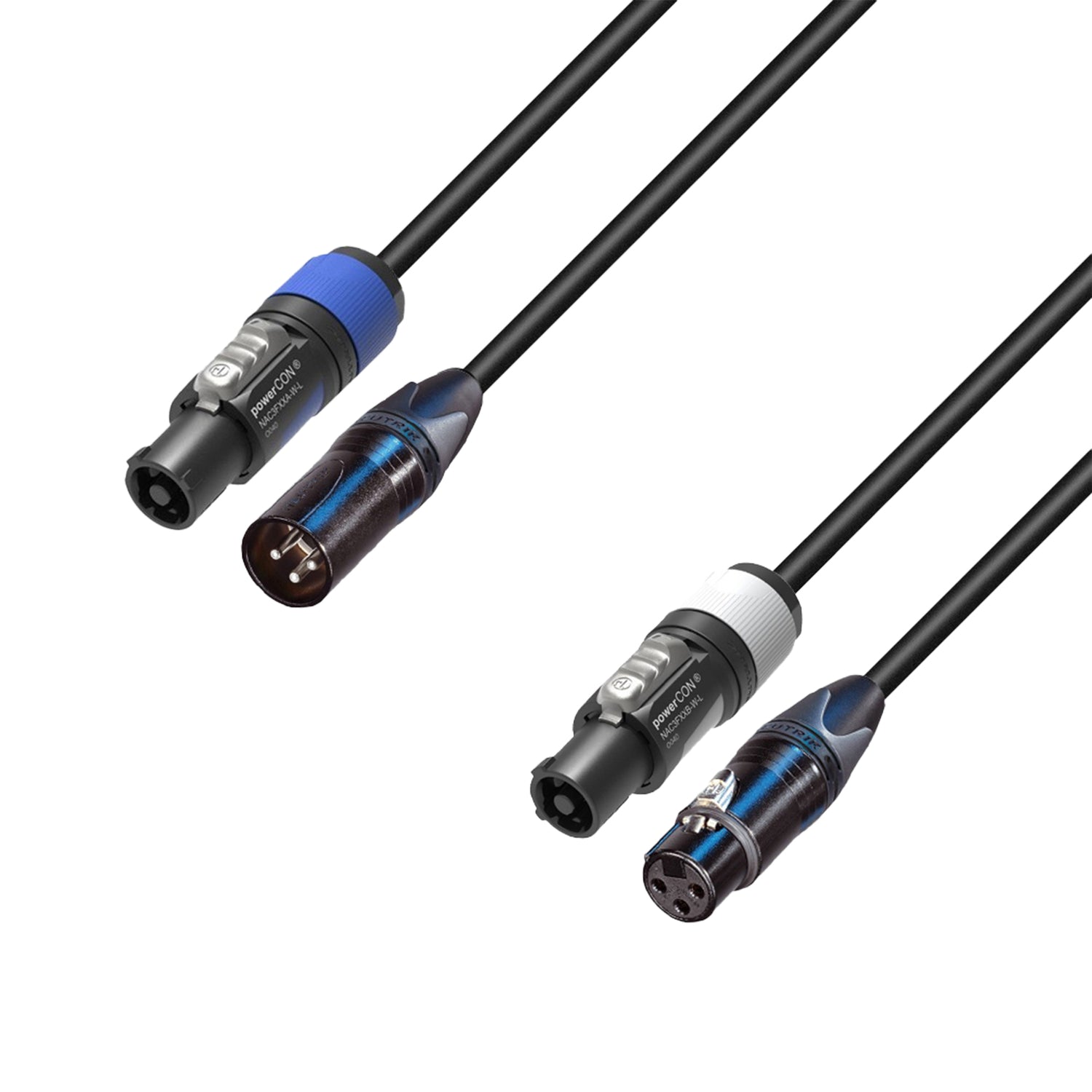

Adam Hall Cables 5 STAR H PCON A 0500 - Hybridkabel | audio Neutrik® XLR x powerCON® | 5 m
Inkl. moms
100% Dansk webshop
Løft din lydopsætning med vores banebrydende Hybrid Audio & Power-kabel fra vores 5 STAR SERIES. Dette alsidige kabel er designet til professionelle lydteknikere og muliggør samtidig transmission af lydsignaler og strøm, så du kan strømline dit setup og sikre en problemfri afvikling.
Effektive og ryddelige opsætninger kræver dette smarte kabel, udstyret med originale Neutrik®-premiumstik, kendt for deres holdbarhed og overlegne signaltransmissionsværdier, som minimerer signaltab og spændingsfald.
Uanset om du opsætter til en koncert, en teaterproduktion eller et arrangement, der kræver avanceret lydkontrol, er vores Hybrid Audio- og strømtransmissionskabel den ultimative løsning til effektivitet og driftssikkerhed. Stol på dets europæiske håndværk og kvalitet, så dit show kører problemfrit.
- This Hybrid Cable for simultaneous tranmission of power and audio signals from our 5 STAR SERIES is manufactured in the EU
- For this cable we only use original Neutrik® connectors. For a long-life plugging-cycle and superior transmission quality we use XLR with silver-plated contacts for the audio line, and the power line will be provided by the Neutrik powerCON® connectors
- The powerCON® plugs are pluggable under load, and are therefore compliant to the highest standards for the event industry
- The line with 0.22 mm² audio & 2.5 mm² power inner-conductor cross-section is engineered by our Adam Hall Cables® crew in Germany
- It comes with a PVC jacket made of a special soft-PVC compound for the highest flexibility values
- The product comes with a velcro cable tie and two transparent, loose heat-shrinks for labeling
General
| Cable length | 5 m |
| Split end length | 40 cm |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 17 mm |
| Cable colour | Black |
Plugs
| Connector type plug 1 | XLR 3-pole female |
| Model name plug 1 | Neutrik NC3FXX-BAG |
| Contact material plug 1 | Silver plated |
| Connector type plug 2 | XLR 3-pole male |
| Model name plug 2 | Neutrik NC3MXX-BAG |
| Contact material plug 2 | Silver plated |
Line
| Conductor material | OFC (Oxygen-free copper) |
| Conductor cross-section | 2 x 0,22 mm² |
| AWG | 24 |
| Capacity/m | 55 pF |
| Conductor impedance/km | 85 Ohm |
| Shielding | Spiral copper shielding |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 5 mm |
Mains plug
| Plug type connector 1 | Mains plug indoor power out female & powerCON® |
| Model name connector 1 | Neutrik NAC3FXXB-W-L |
| Plug type connector 2 | Mains plug indoor power in female & powerCON® |
| Model name connector 2 | Neutrik NAC3FXXA-W-L |
Mains line
| Conductor material | OFC (Oxygen-free copper) |
| Conductor cross-section | 3 x 2,5 mm² |
| AWG | 13 |
| Cable jacket | PVC (Polyvinyl chloride) |
| Cable diameter | 10 mm |
Dimensions & weight
| Weight | 1.5 kg |
