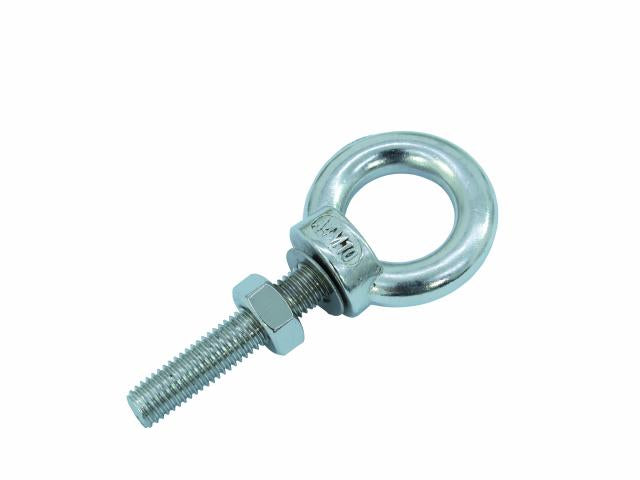

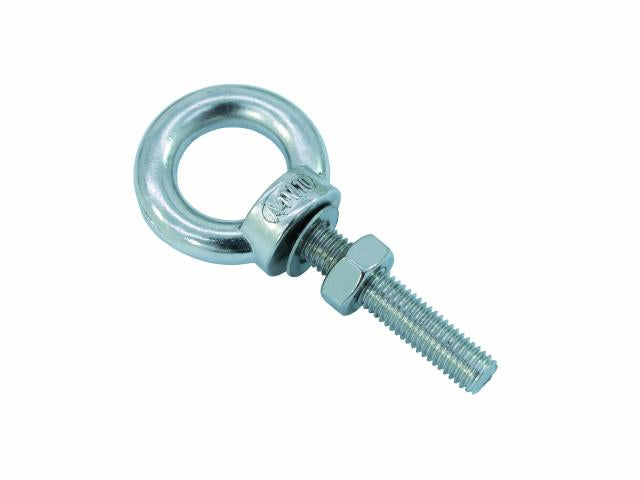

High-tensile ring bolt
- For holding, carrying, suspending and securing
- Can be used as attachment gear or connection element, e.g. for screwing into the flying points of a loudspeaker cabinet
- Warning: the given working load limit (WLL) of this product is valid for holding and carrying loads with lifting gear. The WLL does not describe the maximum load for overhead rigging!
| Material: | AlSi316 |
| Thread diameter: | M10 |
| Thread length: | 50 mm |
| Max. load WLL (4-fold): | 1000 kg |
| Max. load BGV C1 (8-fold): | 500 kg |
| Inner diameter: | 25 mm |
| Outer diameter: | 44 mm |
| Total length: | 95 mm |
| Weight: | 130 g |
