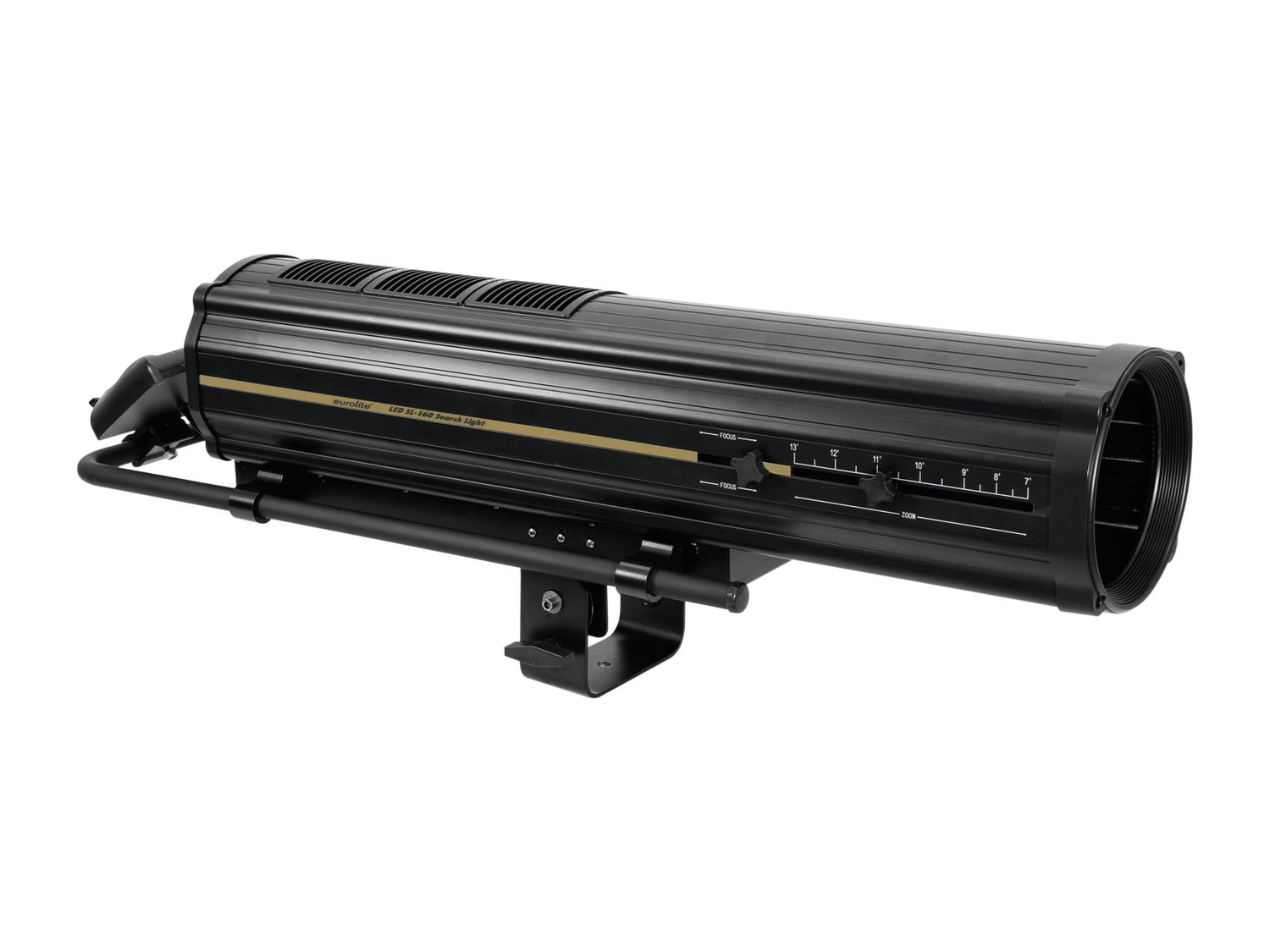

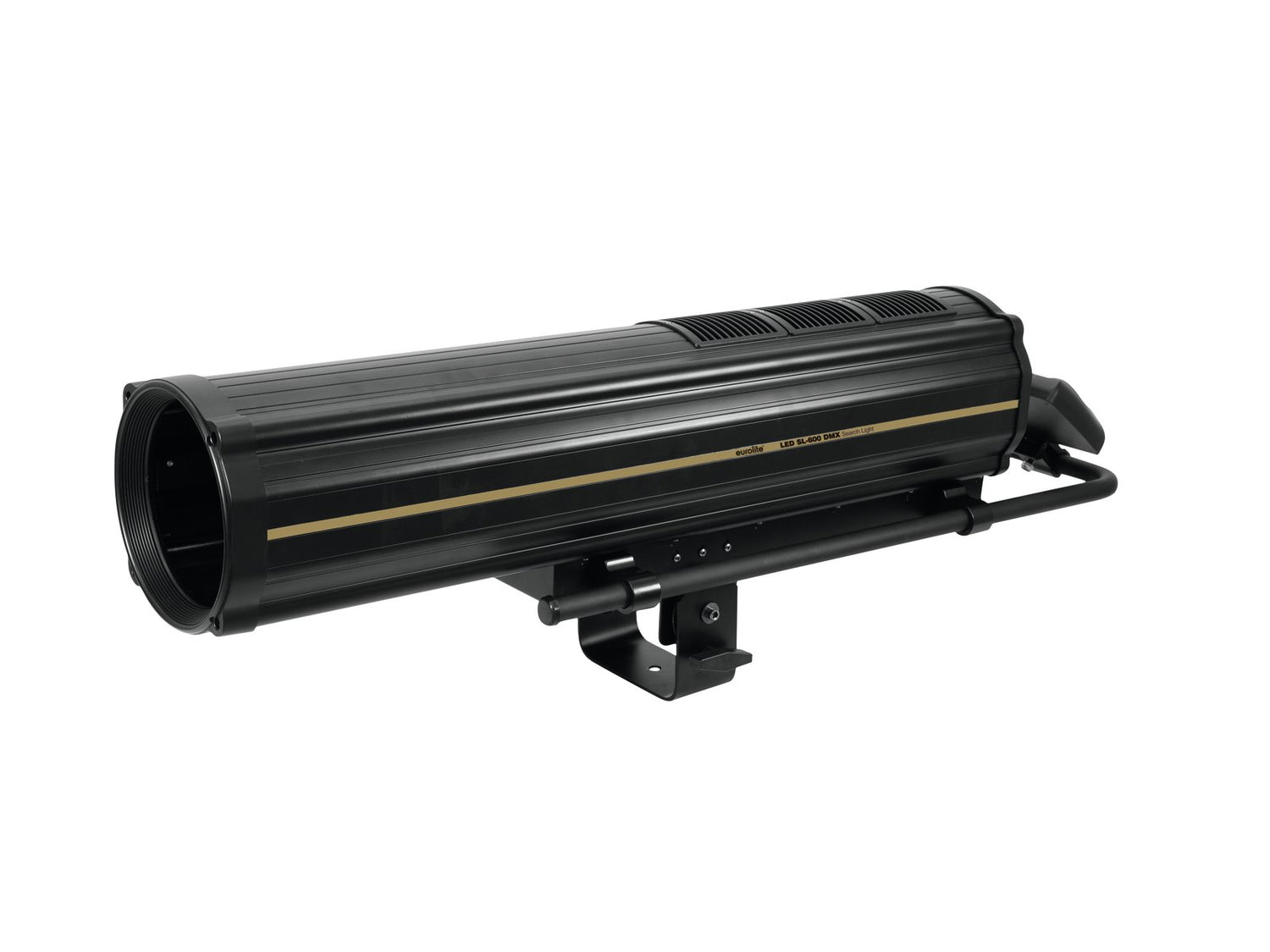

Follow spot with 600 W cold white LED
For long distances
Zoom
DMX
- Operable in manual mode or via DMX
- DMX512 control possible via any commercial DMX controller (occupies 5 channels)
- Suitable for a projection area from 50 to 120 meters

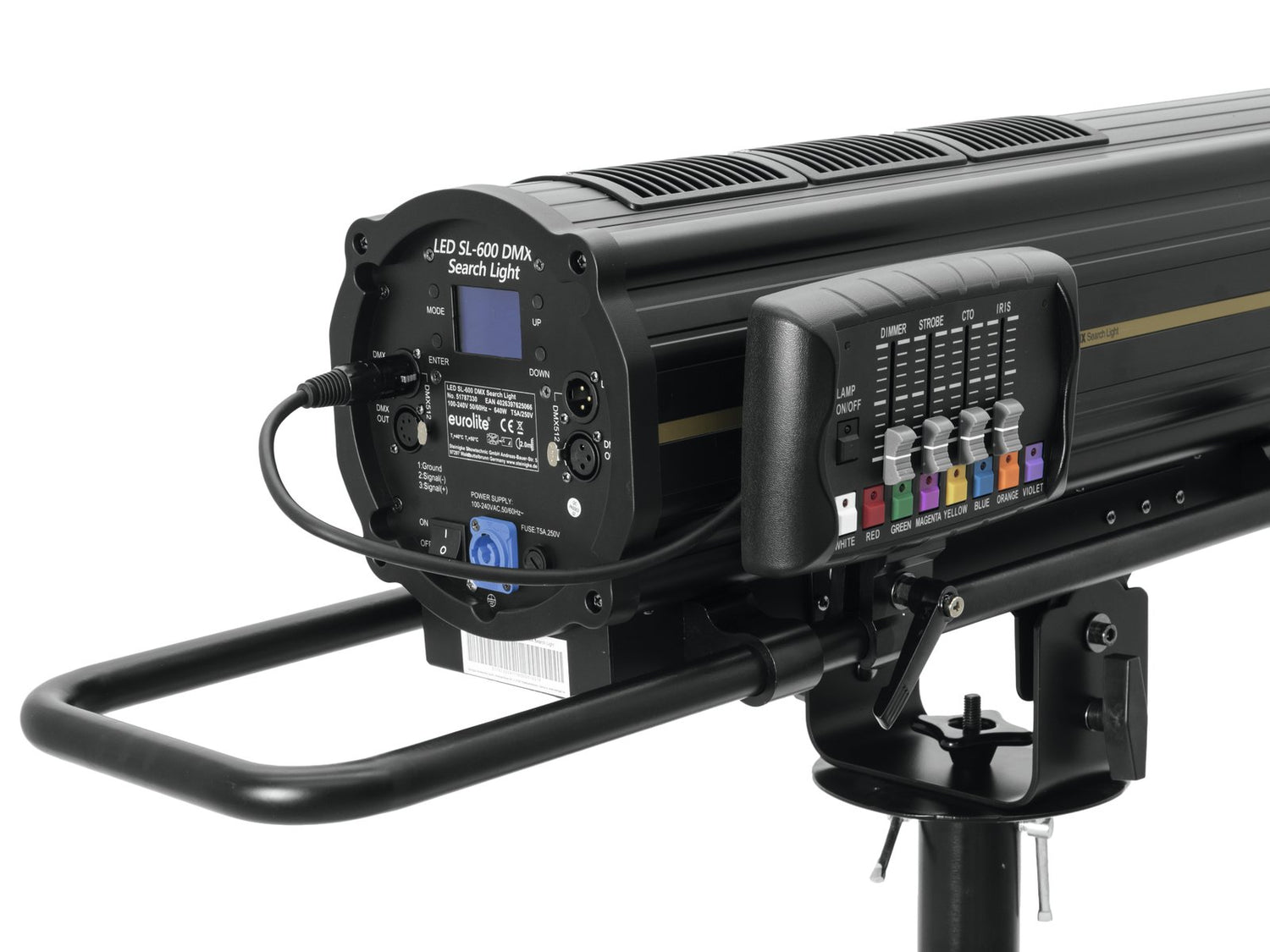

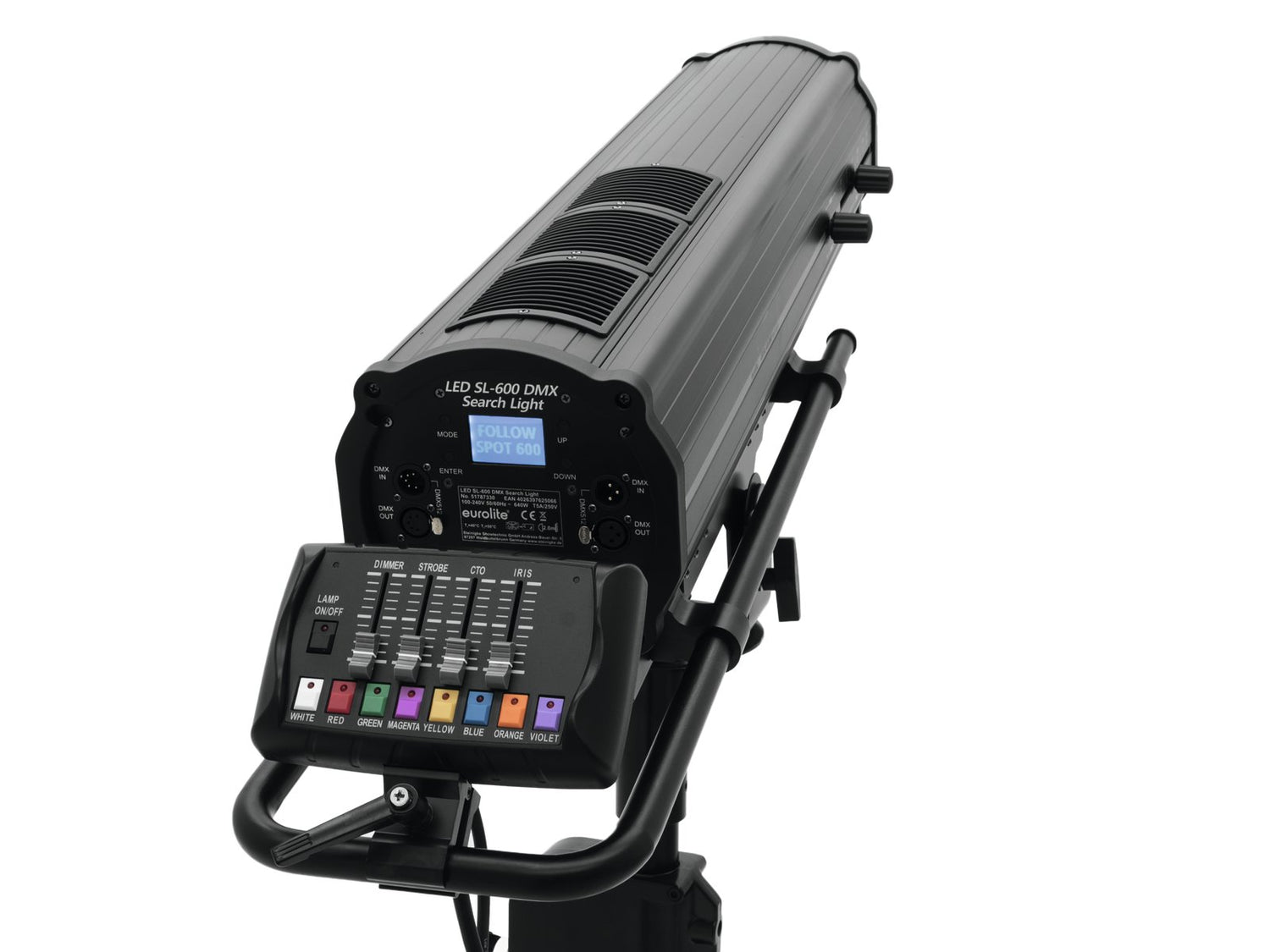

- Manual control via control panel with buttons and faders
- The control panel can be removed to mount laterally for easier operation of the control board with control buttons

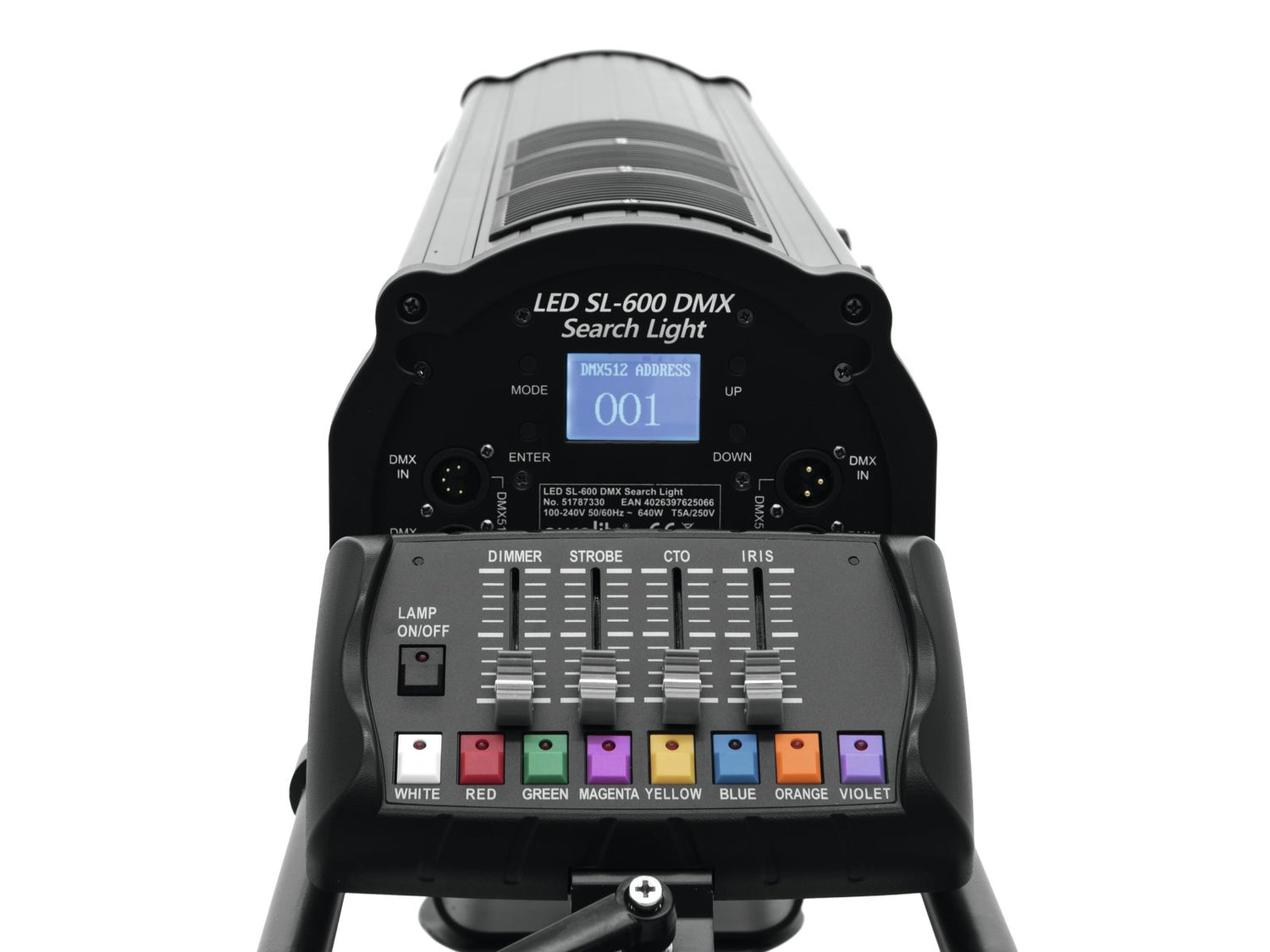

- DMX addressing via LCD and four operating buttons
- Color wheel with 7 different, dichroic color filters and open
- Strobe effect with adjustable speed (1-20 flashes/sec.)
- Three color correction filters for a warmer color temperature
- Steplessly adjustable iris from 5-100%
- Dimmer for stepless adjustment of the light-output brightness between 0 % and 100 %

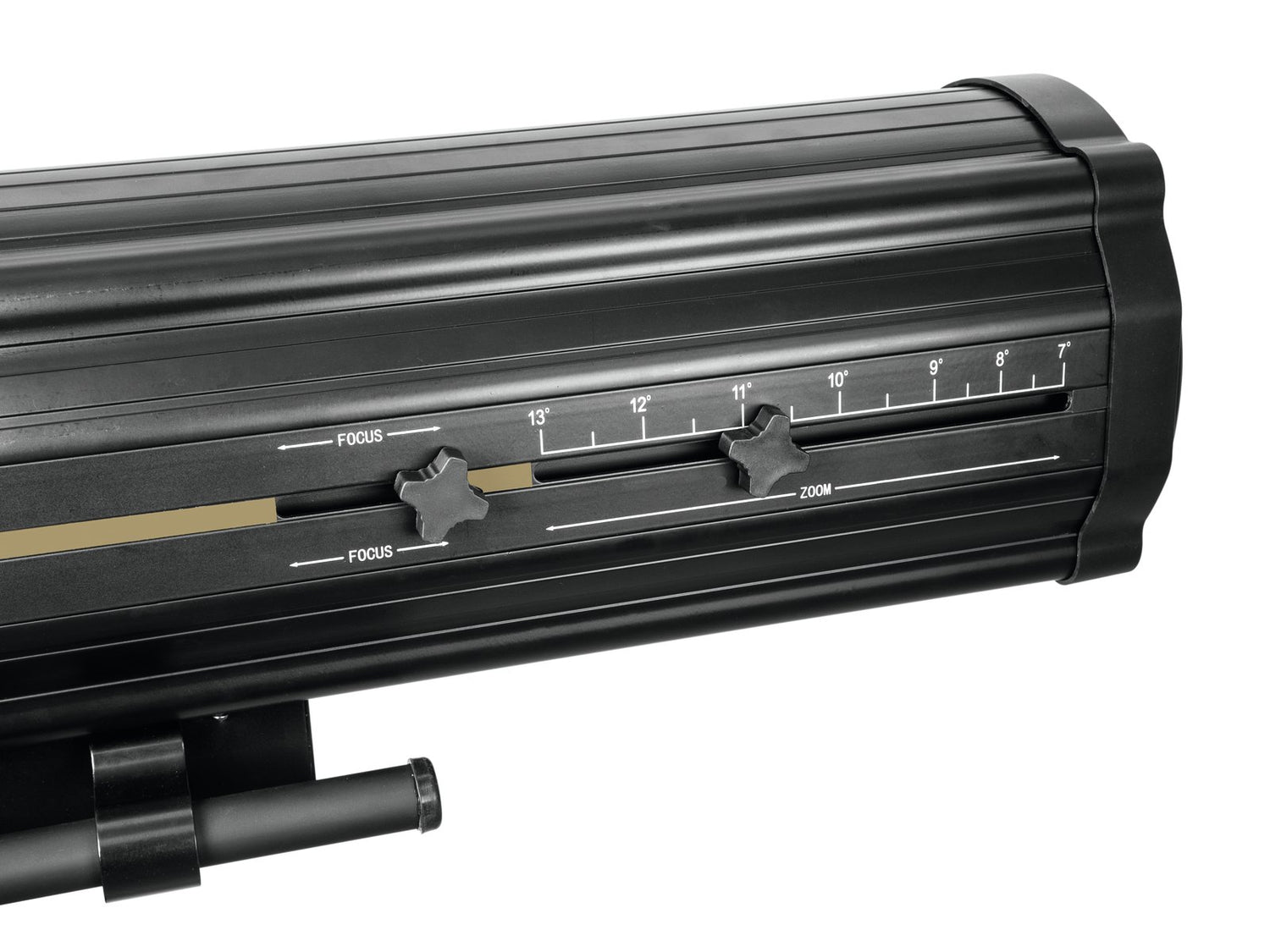

- Manual focus
- Manual zoom (from 7° to 13°)
- Mounting bracket for installation on a stand
- Equipped with 1 x 600 W LED
- Switch-mode power supply for operation between 100 and 240 volts
- Power connection via P-Con socket and included power cable
- Power supply of device: Mains Input Socket (M) Powercon (Power-In) blue fehlt provided
- Control: Stand-alone; DMX
- LED: 1 x COB chip-on-board 600 W CW Homogenous colormix
Specifikationer
Specifikationer
-
FarveSort
Tekniske specifikationer
Tekniske specifikationer
| Power supply: | 100-240 V AC, 50/60 Hz |
| DMX control channels: | 5 |
| DMX512 connection: | 3-pin and 5-pin XLR |
| Flash-rate: | 1-20 Hz |
| LED type: | 600 W CW |
| Number of LEDs: | 1 |
| Color temperature: | 6500 K |
| Beam angle: | 7-13° |
| Dimensions (L x W x H): | 1050 x 230 x 340 mm |
| Weight: | 19 kg |
| Cooling fan: | Yes |
| IP classification: | IP20 |
| Power consumption: | 640 W |
| Lamp type: | LED lamp |
| Beam angle: | 7 - 13° |
| Height: | 34 cm |
| Width: | 23 cm |
| DMX channels: | 5 |
| Length: | 105 cm |
| Ecodesign regulation: | Yes |
