• Yamaha HS3 2-vejs aktive monitors - her i en smart pakkeløsning
• 26W + 26W Class-D forstærker
• God defineret bas og detaljerigt lydbillede

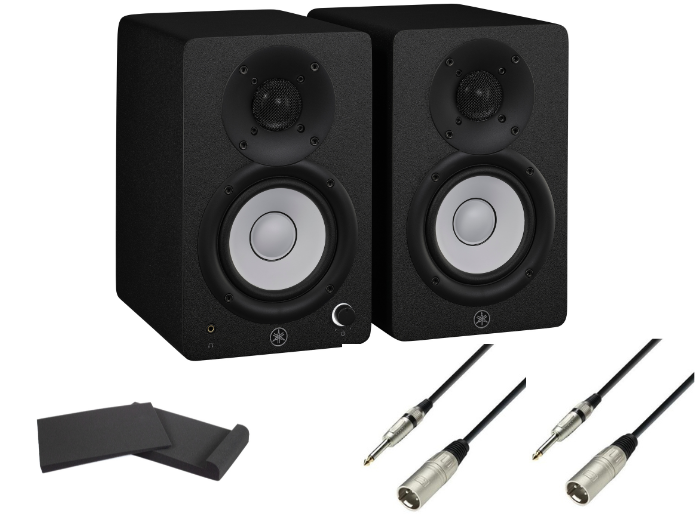

Yamaha HS3 Startpakke

• Smart startpakke med Yamahas HS3!
• Yamahas HS serie af studie monitors er kendt for sublim lyd til prisen - go-to monitors for mange producere og artister.
• 2-vejs aktive monitors i kompakt design med kraftfuld lyd.
• 26W + 26W Class-D forstærker.
• 3,5" LF og 0,75" HF.
• God defineret bas og detaljerigt lydbillede.
• Frekvens respons: (−3 dB) 85 Hz - 20 kHz / (−10 dB) 70 Hz - 22 kHz.
• Med Room Control og High Trim funktioner.
• Masser af forbindelsesmuligheder med XLR/TRS, RCA og Stereo Mini inputs.
• Hovedtelefon output og volumeknap på fronten.

• System Type 2-way Powered speaker
• Frequency Response (−3 dB) 85 Hz - 20 kHz
• Frequency Response (−10 dB) 70 Hz - 22 kHz
• Crossover Frequency 3.2 kHz
• Maximum Output Level (Measured peak, IEC noise@1m) 100 dB SPL

Dimensions:

• L Side 132×223×189 mm
• R Side 132×223×177 mm

Weight:

• L Side 2.8 kg
• R Side 2.1 kg

Input Connector:

• L Side: COMBO (XLR/TRS Phone) ×2, RCA ×2, Stereo Mini
• R Side: Speaker Input

Output Connector:

• L Side: Headphone, Speaker Output

Speaker section:

• Enclosure: Bass-reflex type, Material: MDF
• Speaker Components: HF: 0.75" Dome, LF: 3.5" Cone
• Nominal Impedance: 6 Ω
• Amplifier section:
• Maximum Output:
• Dynamic, RL=6 Ω - 26 W + 26 W
• THD 0.1%, 1kHz, RL=6 Ω - 20 W + 20 W
• Input Impedance LINE 1 (COMBO): 20 kΩ, LINE 2 (RCA, ST Mini): 10 kΩ
• Input Sensitivity (Volume: Maximum) LINE 1 (COMBO): +4 dBu, LINE 2 (RCA, ST Mini): −10 dBu
• Maximum Input LINE 1 (COMBO): +20 dBu, LINE 2 (RCA, ST Mini): +6 dBu

Input Connectors: LINE 1: COMBO (XLR/TRS PHONE), LINE 2: RCA, Stereo Mini

Controls:

• Front: Volume
• ROOM CONTROL SWITCH 0/−2/−4 dB under 500 Hz
• HIGH TRIM SWITCH +2/0/−2 dB above 2 kHz

Indicator Power ON (White LED)
Power Requirements (*) Depending on area of purchase; 100-240 V, 50/60 Hz
Power Consumption 15 W
Accessories

• Included in the package:
• Stereo Mini - RCA Cable 1.5 m
• Speaker Cable 2.5 m

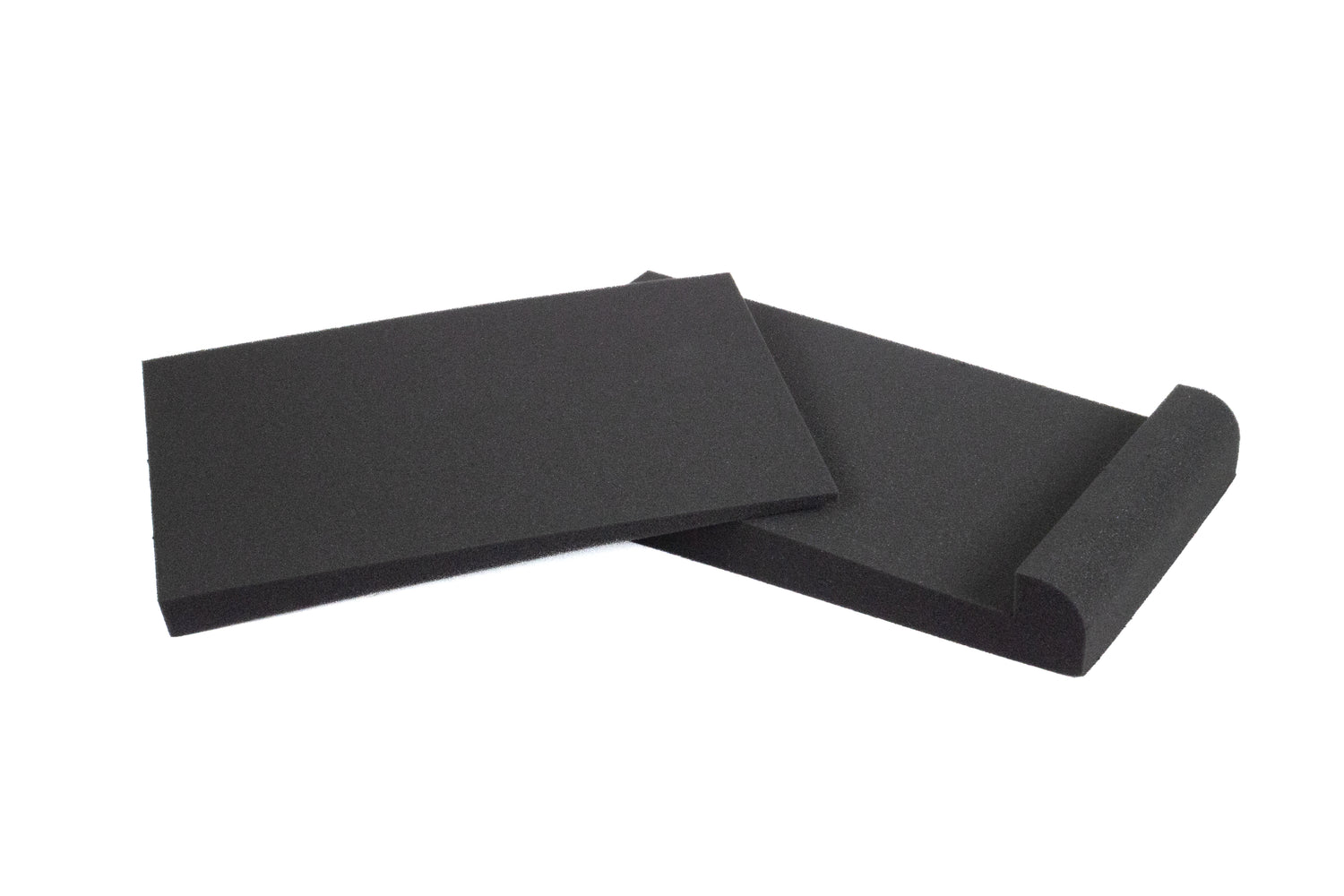

• Anti Slip Pad
• Quick Start Guide
• Safety Guide
