Color/Finish |
Body | Color | Black |
Size/Weight |
Dimensions | Width | 1,200 mm (47-1/4”) |
Height | 136 mm (5-3/8”) |
Depth | 404 mm (15-7/8”) |
Weight | Weight | 8.3 kg (18 lb, 5 oz) (not including batteries) |
Control Interface |
Keyboard | Number of Keys | 76 |
Touch Response | Yes (Soft, Medium, Hard, Fixed) |
Type | Organ-style |
Other Controllers | Pitch Bend | Yes |
Art. Switches | Yes |
Control Knobs | 2 |
Display | Type | LCD |
Backlight | Yes |
Panel | Language | English |
Voices |
Tone Generation | Tone Generating Technology | AWM Stereo Sampling |
Polyphony | Number of Polyphony (Max.) | 64 |
Preset | Number of Voices | 820 (294 Panel Voices + 28 Drum/SFX kits + 40 Arpeggio + 458 XGlite Voices) |
Featured Voices | 10 Premium Organ Voices, 4 Live! Voices, 9 Sweet! Voices, 6 Cool! Voices, 14 Super Articulation Lite Voices |
Compatibility | GM | Yes |
XGlite | Yes |
Effects |
Types | DSP | DSP1: 41 types, DSP2: 12 types |
Reverb | 12 types |
Chorus | 5 types |
Master EQ | 4 types |
Functions | Dual/Layers | Yes |
Split | Yes |
Melody Suppressor | Yes (w/ pan adjustment) |
Crossfade | Yes (between Internal Sound and External Audio) |
Accompaniment Styles |
Preset | Number of Preset Styles | 290 |
Fingering | Multi finger, Smart Chord |
Style Control | ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL, TRACK ON/OFF |
Other Features | One Touch Setting (OTS) | Yes |
Expandability | Expansion Style | 10 |
Compatibility | Style File Format (SFF) |
Groove Creator |
Preset | Number of Groove | 35 |
Number of Sections | 5 (4 Sections + 1 Musical Climax/Ending) |
Songs |
Preset | Number of Preset Songs | 30 |
Recording | Number of Songs | 10 |
Number of Tracks | 6 (5 Melody + 1 Style/Groove Creator) |
Data Capacity | Approx. 19,000 notes (when only “melody” tracks are recorded) |
Compatible Data Format | Playback | SMF (Formats 0 & 1) |
Recording | Original File Format (SMF 0 conversion function) |
USB Audio Recorder |
Recording Time (max.) | 80 minutes (approx. 0.9 GB) per Song |
Format | Playback | WAV (44.1 kHz, 16 bit, stereo) |
Recording | WAV (44.1 kHz, 16 bit, stereo) |
Quick Sampling |
Sampling Type | One-shot, Loop |
Samples (Preset/User) | 4 |
Sampling Time | Approx. 9.6 sec |
Sampling Sources | AUX IN, MIC INPUT, USB audio interface, WAV format files |
Sampling Format | Original File Format (16 bit, stereo) |
Sampling Rate | 44.1 kHz |
Functions |
USB audio interface | 44.1 kHz, 16 bit, stereo |
Registration | Number of Buttons | 4 (x 8 banks) |
Control | Freeze |
Overall Controls | Metronome | Yes |
Tempo Range | 11 – 280 |
Transpose | -12 to 0, 0 to +12 |
Tuning | 427.0 – 440.0 – 453.0 Hz (approx. 0.2 Hz increments) |
Octave Button | Yes |
Scale Type | 5 types |
Miscellaneous | PIANO Button | Yes (Portable Grand Button) |
Other Functions | Mega Boost, Motion Effect (57 types) |
Voices | Harmony/Echo | 26 types |
Arpeggio | 152 types |
Storage and Connectivity |
Storage | Internal Memory | Approx. 1.72 MB |
External Drives | USB flash drive |

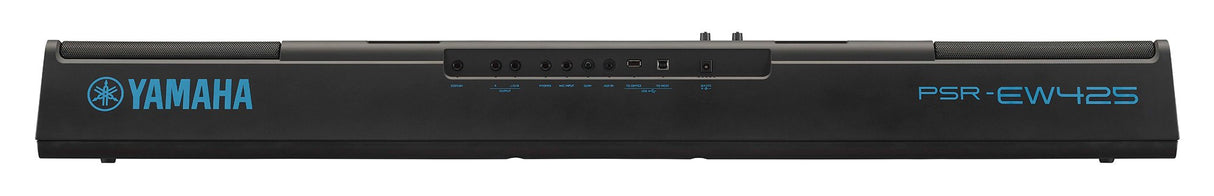

Connectivity | DC IN | 16 V |
AUX IN | Stereo mini jack x 1 |
Headphones | Standard stereo phone jack x 1 |
Sustain Pedal | Yes |
USB TO DEVICE | Yes |
USB TO HOST | Yes |
OUTPUT | Standard phone jack x 2 |
Microphone | Standard phone jack x 1 |
Amplifiers and Speakers |
Amplifiers | 12 W + 12 W |
Speakers | 12 cm x 2 |
Power Supply |
Power Supply | AC Adaptors (PA-300C or an equivalent recommended by Yamaha) or batteries (Six “D” size alkaline (LR20), manganese (R20) or Ni-MH rechargeable (HR20) batteries) |
Power Consumption | 11 W (When using PA-300C AC adaptor) |
Auto Power Off Function | Off/5/10/15/30/60/120 (minutes) |
Accessories |

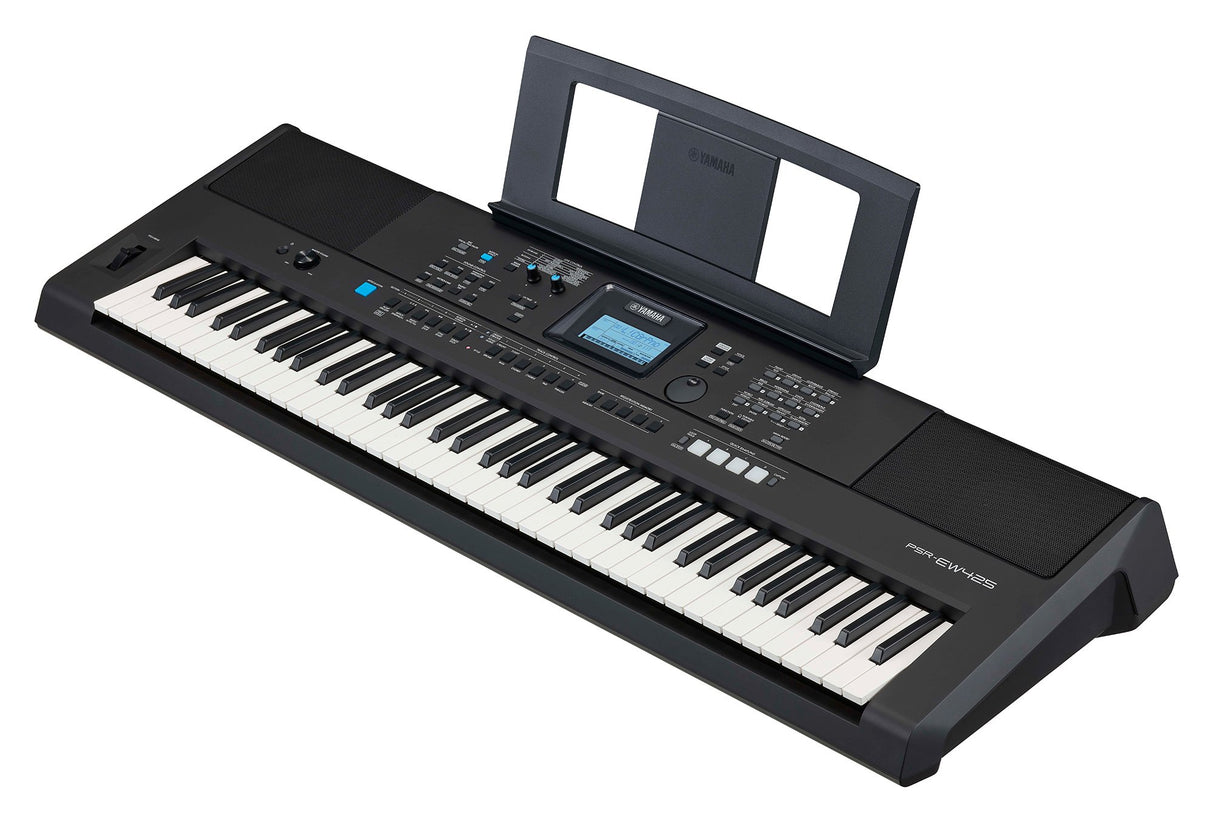

Included Accessories | Music Rest | Yes |
Song Book | Download from Yamaha web site |
