Eurolite QuickDMX Trådløs DMX Receiver
669 kr.
Stk. pris
/
Ikke tilgængelig
Beskrivelse
Beskrivelse
- Miniature wireless DMX receiver for the wireless transmission of up to 512 DMX channels

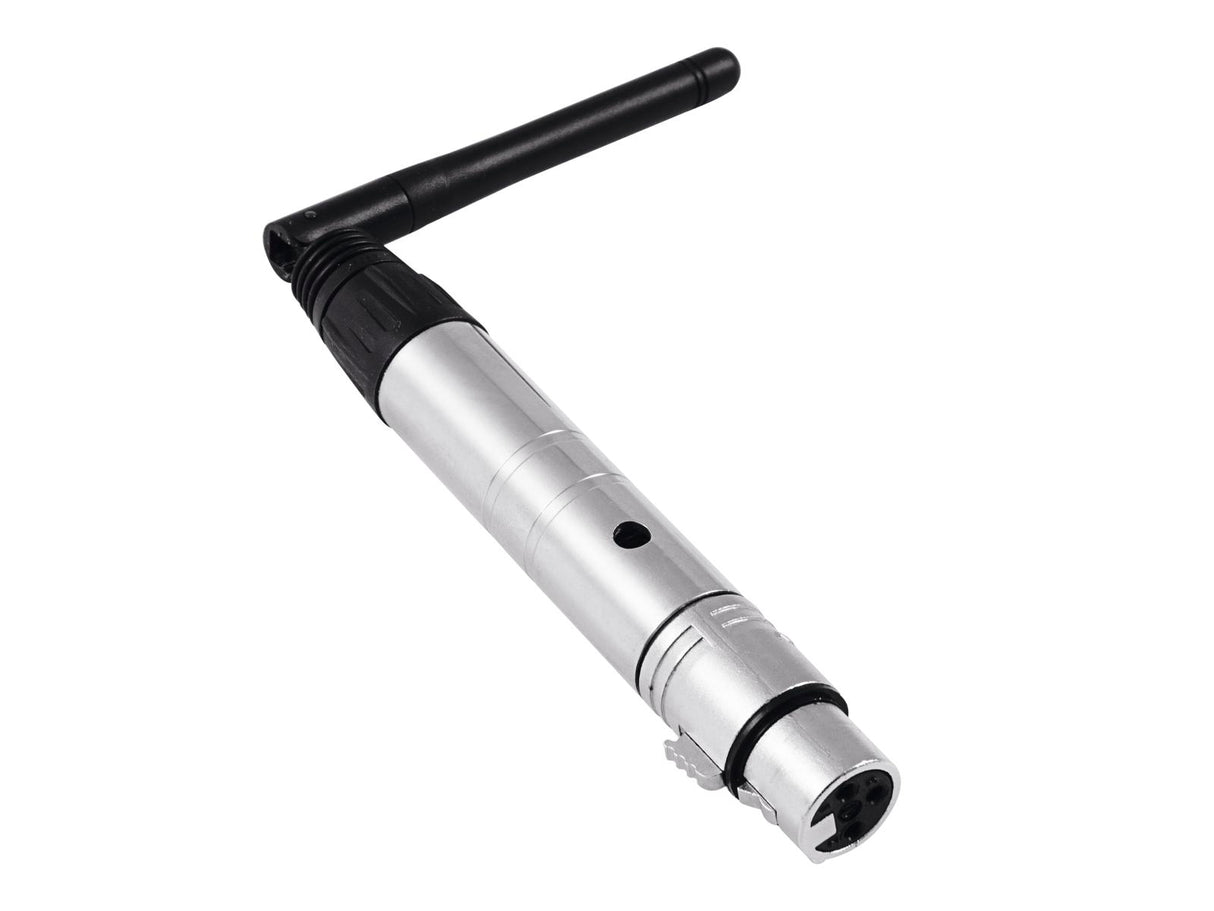

- User-friendly 3-pin XLR plug (female) with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- Operating range up to 400 m (with line-of-sight)
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
- LED indication for functions
- Transceiver, to be used as transmitter or receiver

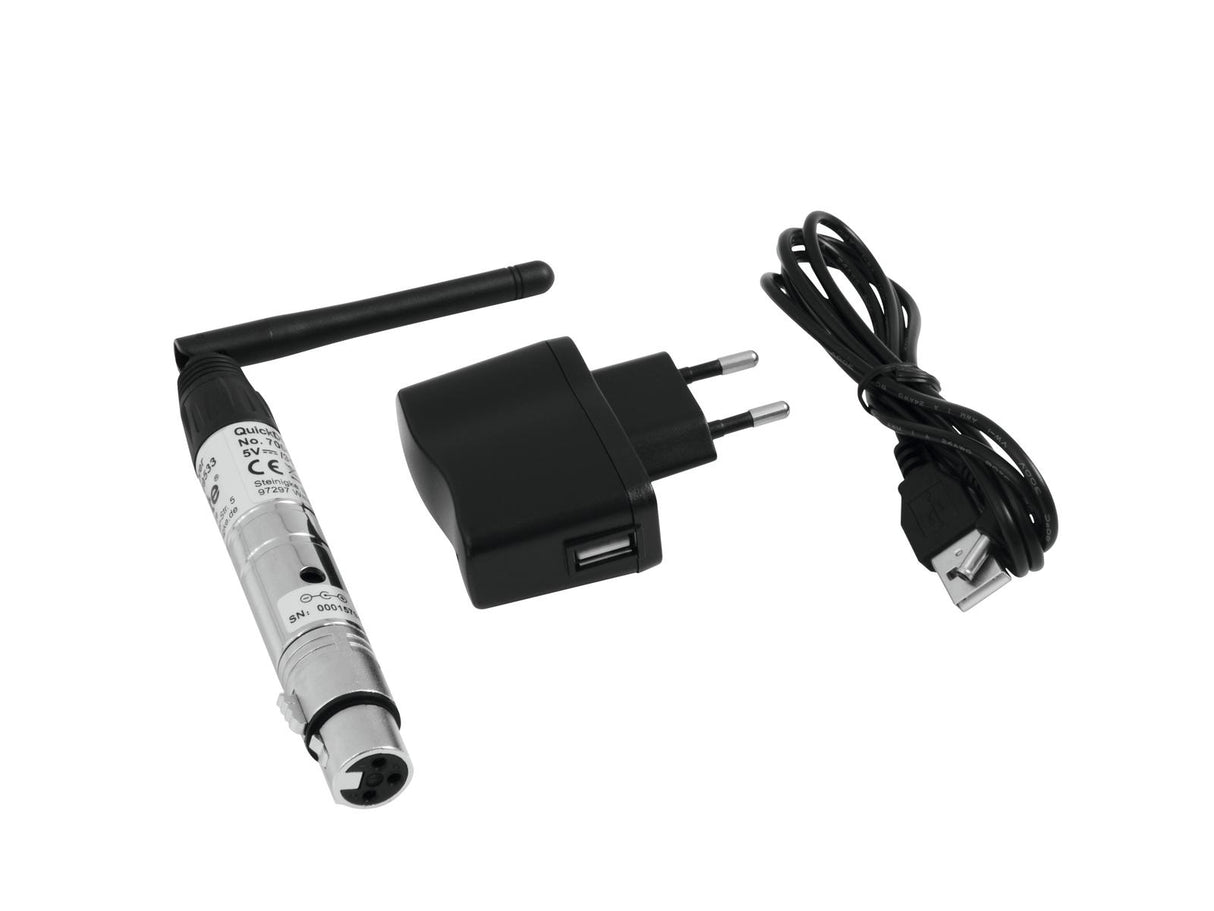

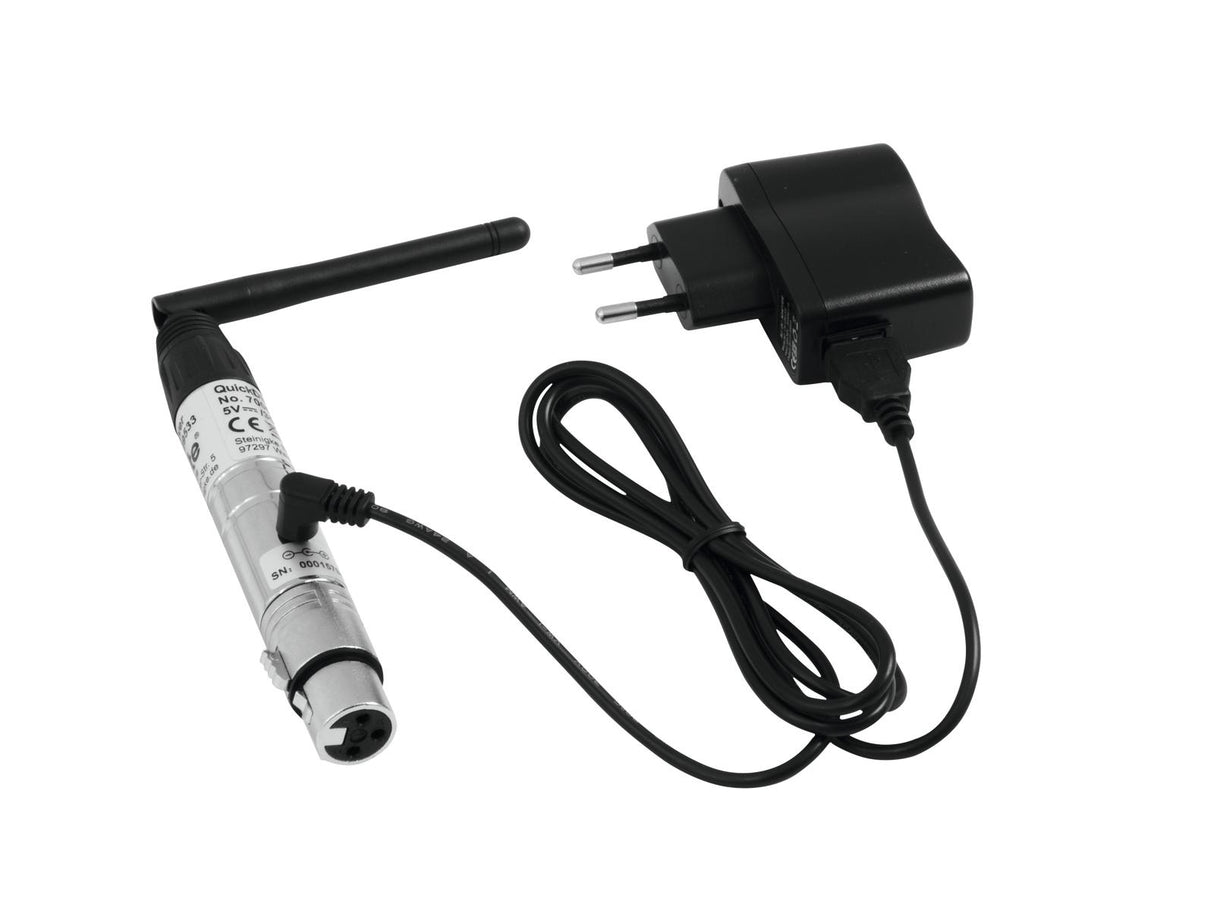

- Powered via included PSU
- 2.4 GHz ISM band - license-free worldwide
Tekniske specifikationer
Tekniske specifikationer
| Power supply: | 100-240 V AC, 50/60 Hz ~ |
| via power unit included in the delivery | |
| Carrier frequency: | 2.4 GHz ISM band, 78 channels |
| Modulation: | GFSK |
| Coverage: | 400 m (line-of-sight) |
| Parallel operation: | max. 6 transmitters |
| DMX conncector: | 3-pin XLR (female) |
| DMX channels: | 1 universe (512 channels) |
| Dimensions with antenna (LxWxH): | 212 x 18 x 18 mm |
| Weight: | 80 g |
| Shipping weight: | 0.24 kg |
Brand: Eurolite
SKU: 70064701
