Beskrivelse
Beskrivelse
- EV EKX 15P
- 15" 2-vejs aktiv højttaler
- Class D forstærker
- Intelligent thermal management
- Kompakt og slidstærkt design
- Intuitiv menu

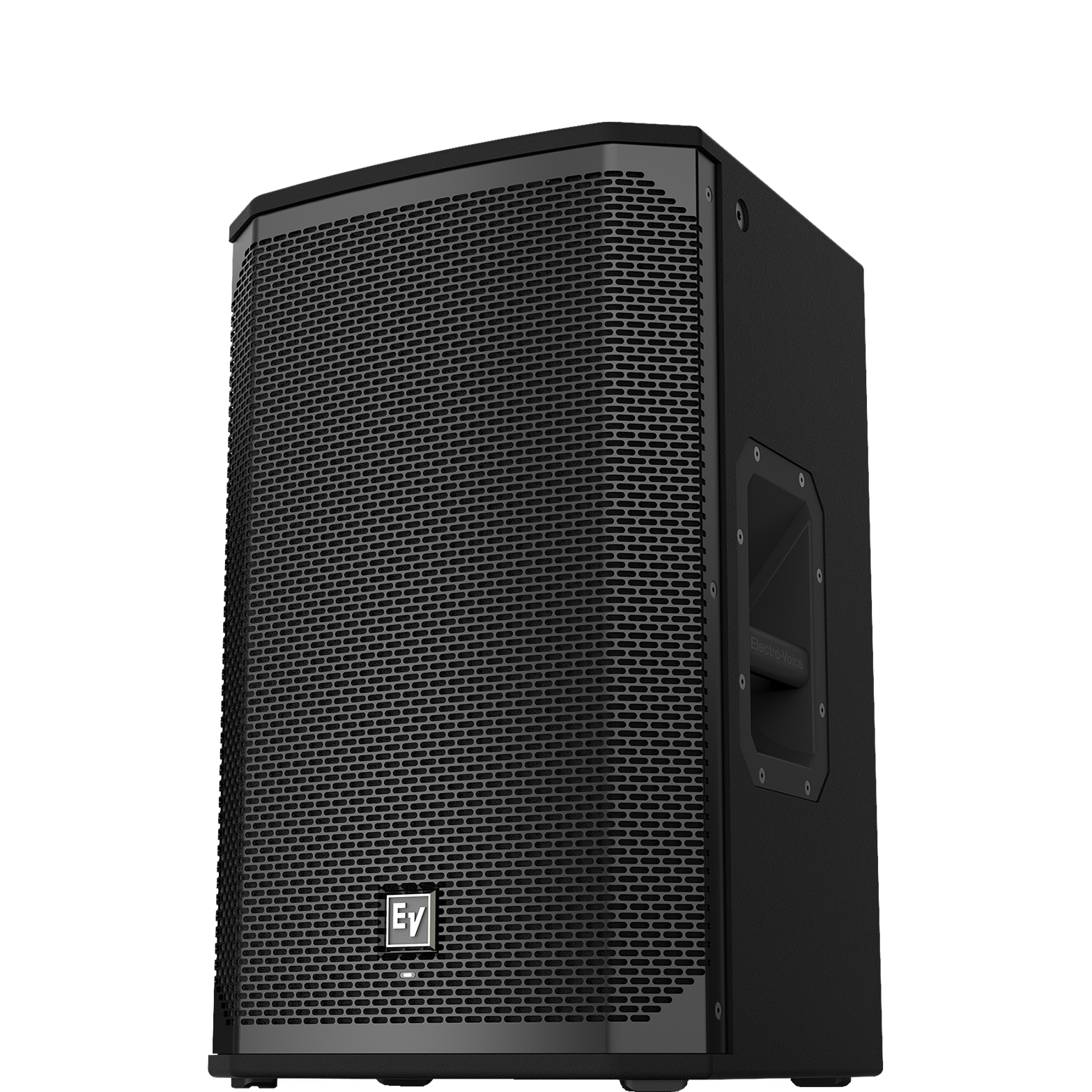

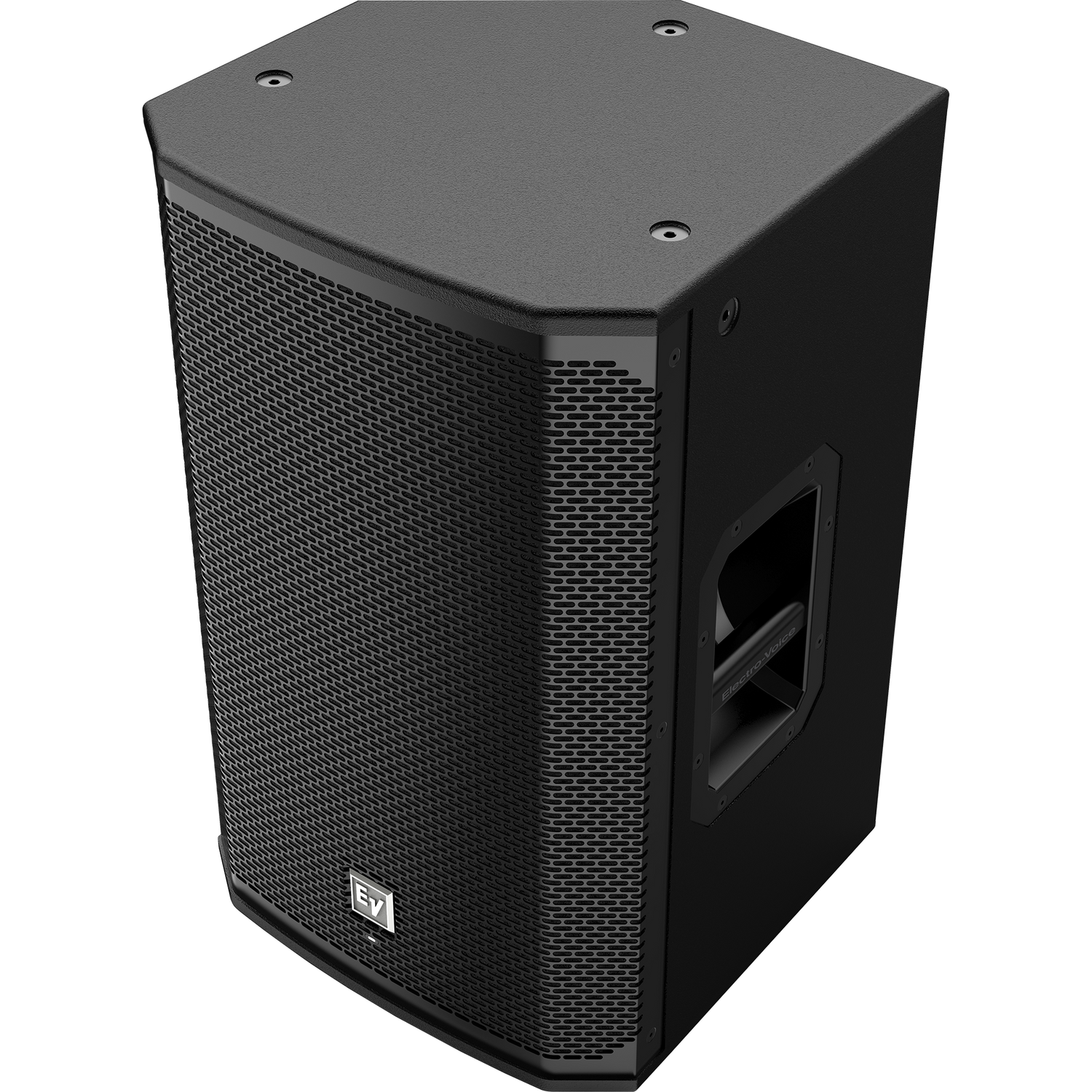

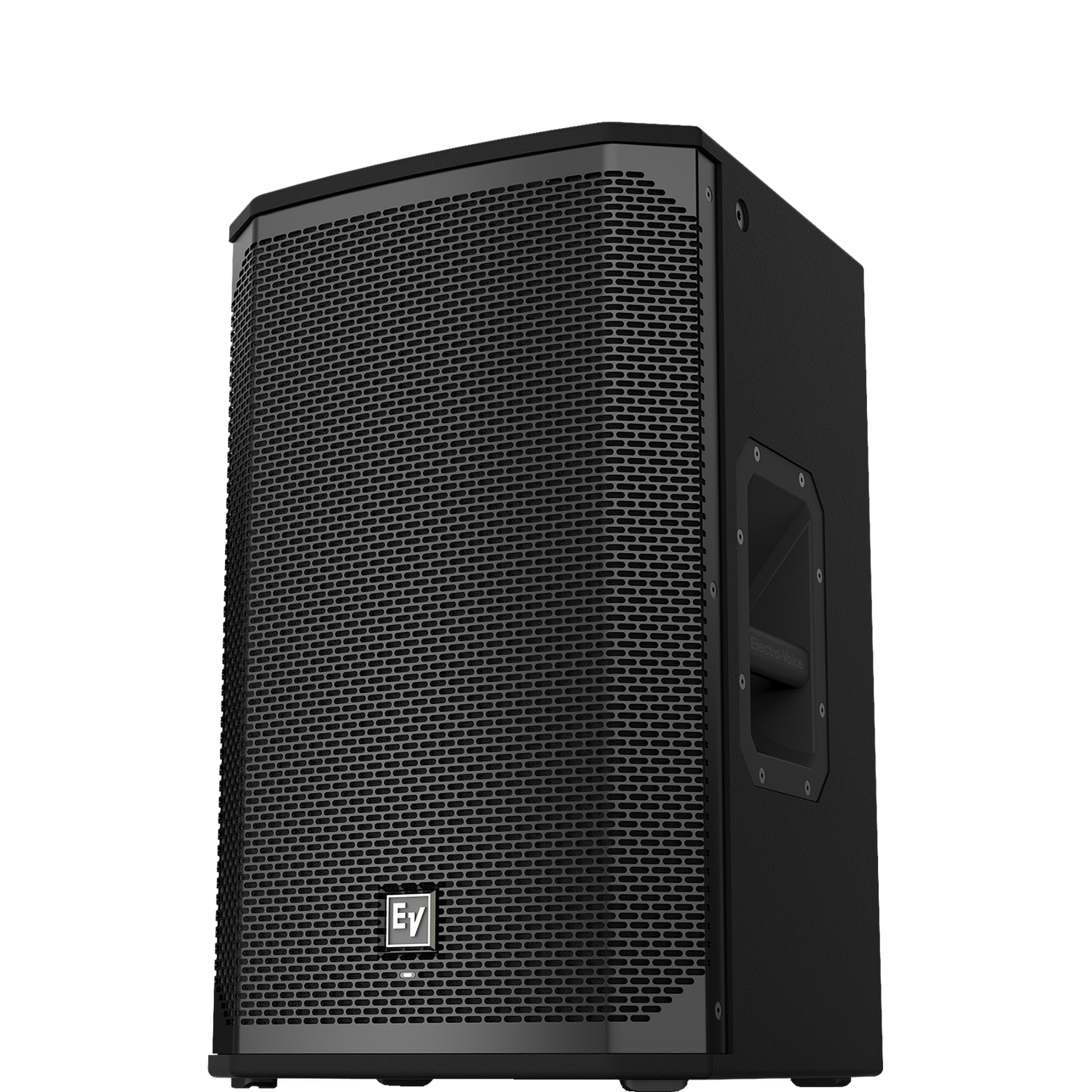

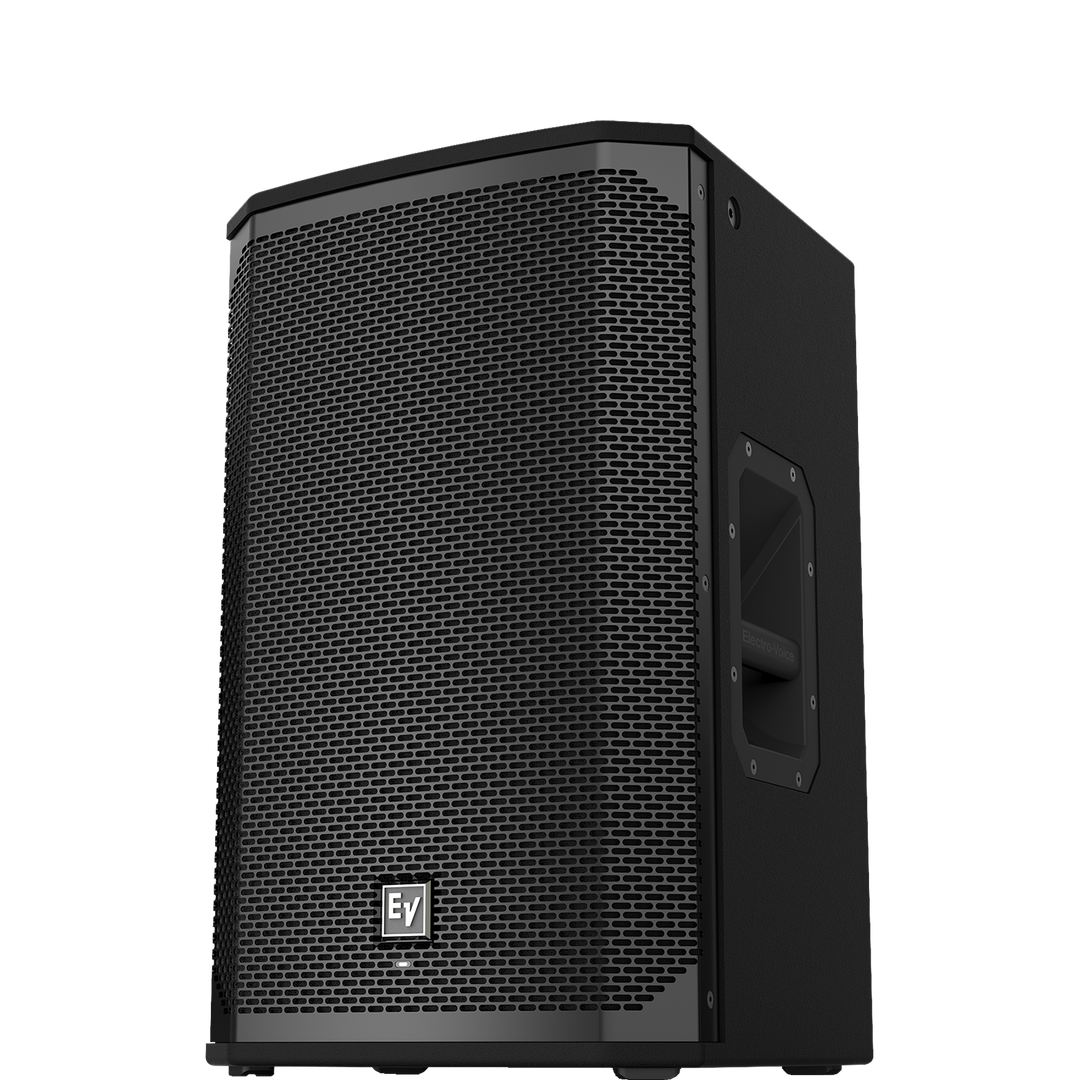

Electro-Voice EKX-15P Aktiv Højttaler
EV EKX-15P er en 15? 2-vejs aktiv højttaler med træindkapsling og EVCoat overfladebehandling, der giver et kompakt og slidstærkt design. Højttaleren har intuitiv menu med navigation via LCD, samt QuickSmartDSP features.
Class D forstærker
Med en 1500 W Class D forstærker kan EV EKX 15 P levere op til 134 dB lyd.
Intelligent thermal management
Electro-Voice EKX-15P har indbygget intelligent thermal management med blæser-funktion, der sørger for at give optimal driftsikkerhed og langvarig ydeevne.
Tekniske specifikationer
Tekniske specifikationer
Specifications | |

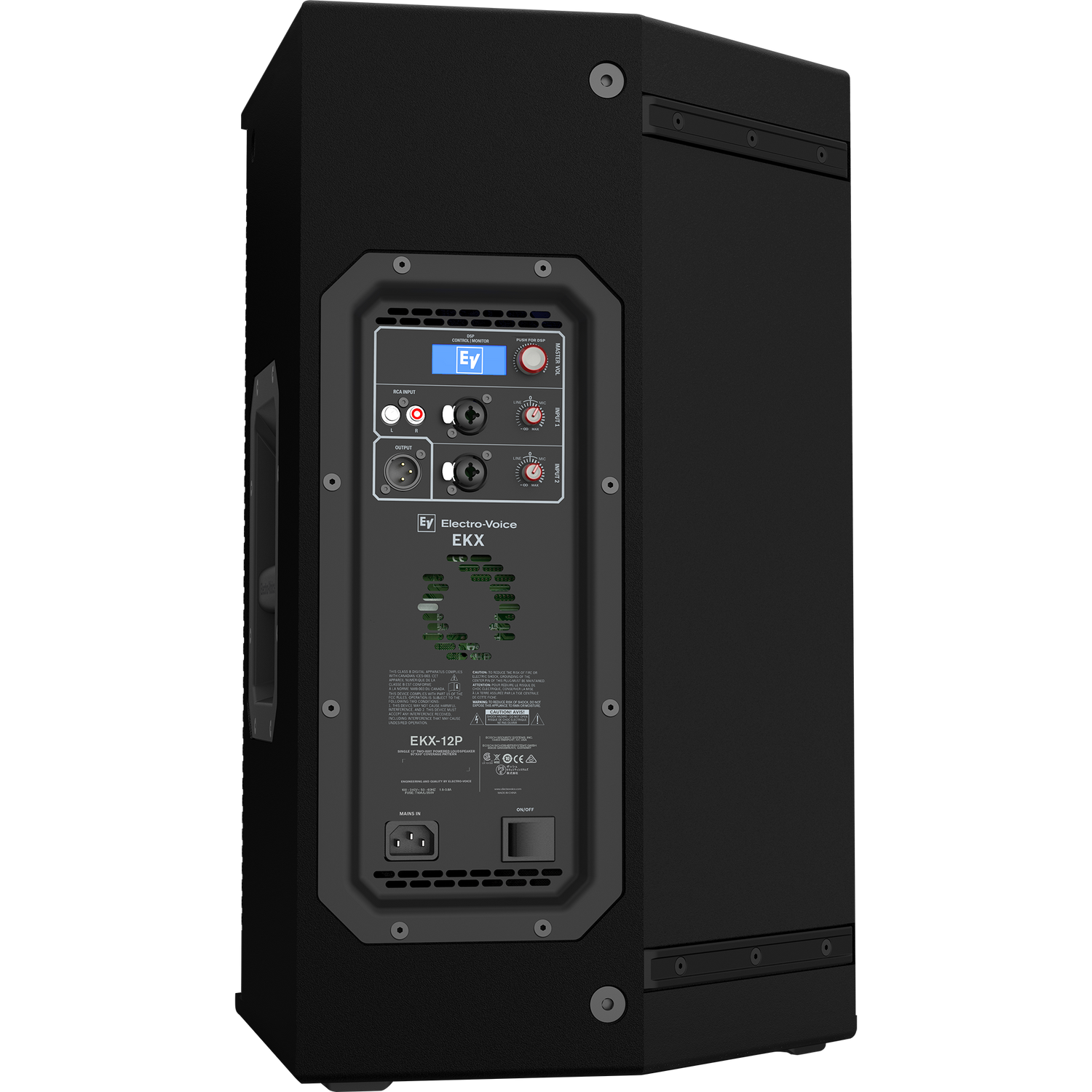

| Connector Type | (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output |
| Coverage (Nominal -6 dB) H | 90 ° |
| Coverage (Nominal -6 dB) V | 60 ° |
| Crossover Frequency | 1.7 k Hz |
| Enclosure Material | 15 mm, plywood with EVCoat |
| Frequency Response (-10 dB) | 48 Hz - 20 kHz Hz Full space measurement using the music DSP preset |
| Frequency Response (-3 dB) | 55 Hz - 18 kHz Hz Full space measurement using the music DSP preset |
| Grill | 18 AWG steel with powdercoat |
| HF Transducer | DH-1M 1-inch titanium compression driver |
| LF Transducer | EVS-15M 381 mm (15 in) |
| Maximum SPL | 134 dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output |
| Power Consumption | 1.8 A Current rating is 1/8 power |
| Power Rating | 1500 W |
| Shipping Weight | 29.5 kg (65.04 lbs) |

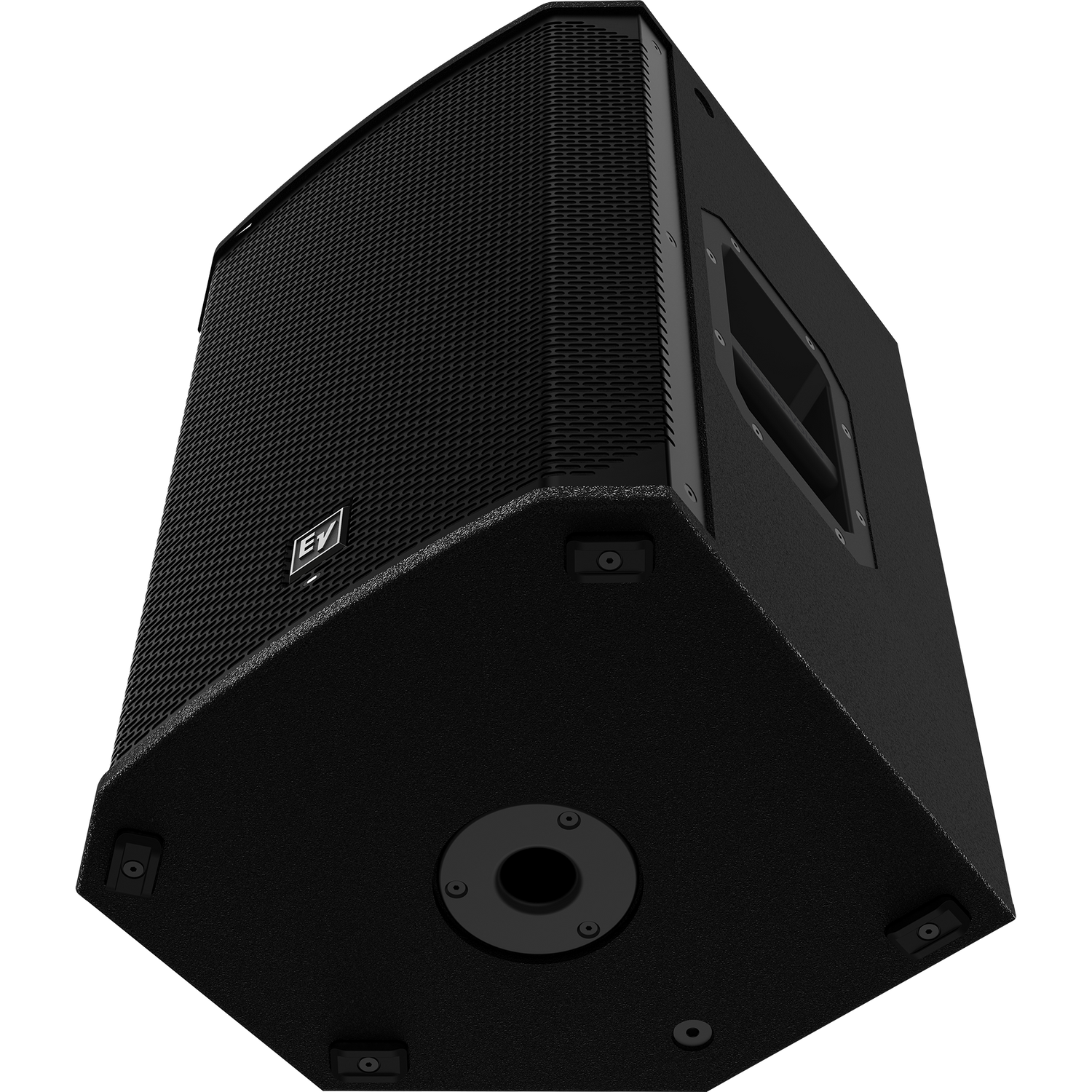

| Suspension | (8) M10 threaded mounting points |
| Height | 16RU 685 mm (26.97") |
| Width | 432 mm (17.01") |
| Depth | 429 mm (16.89") |
| Weight Net | 24.4 kg (53.79 lbs) |
