LD Systems MS 828 Line Mixer / Splitter
Inkl. moms
100% Dansk webshop
- 19" line mixer med 1 stereo indgang og 6 line signal udgange.
- Via en omskifter kan du vælger om enheden skal benyttes som signal splitter eller mixer.
- Kan benyttes som 6 kanal signal booster, 2 In 8 udgang splitter eller 8 ind 2 ud mixer.
- Elektroniske balancerede ind og udgange.
- Strømledning medfølger.
LD Systems MS 828 Line Mixer / Splitter

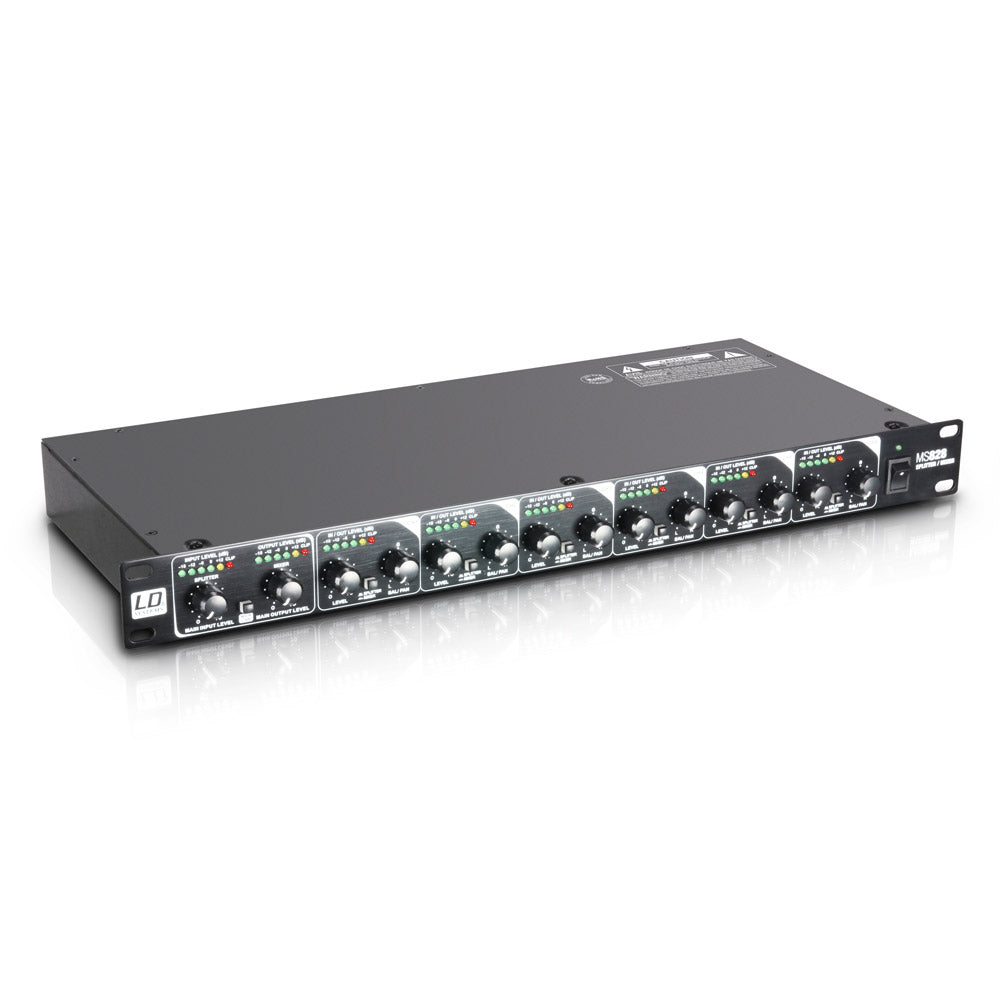

The LD Systems LDMS828 is a mixer, splitter, and booster amplifier in 19'' rack format for flexible live and studio applications.

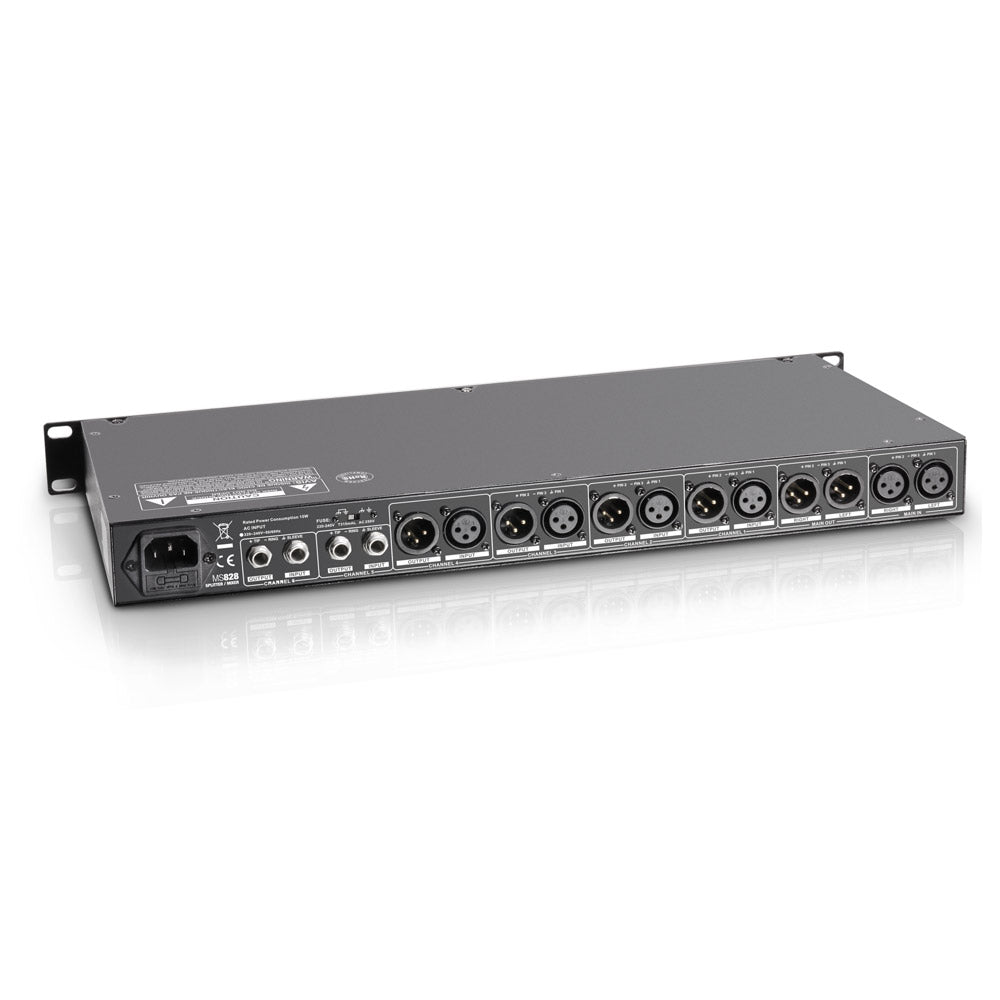

The LDMS828 has one stereo and six mono channels with individual LED level metres; all inputs and outputs are electronically balanced. Two mono channels are equipped with stereo TRS sockets, the other connectors are XLR sockets. The stereo channel has individual volume controls for input and output and a link button for looping through the signal; each mono channel has volume and panorama controls as well as a button that toggles between the splitter and mixer functions.
TheLDMS828 by LD Systems is impressive not only because of its practical features, but also because of its technical specifications. The broad frequency response of 5 - 40,000 Hz, a dynamic range of 85 dB, and the extremely low total harmonic distortion of 0.0008% guarantee maximum signal fidelity. The nominal working level of -10 dBV to +4 dBU makes the mixer/splitter suitable for connection to both professional and consumer equipment.
Also known as: MS828, MS-828
| Product number: | LDMS828 |
|---|---|
| Product type: | Splitter/Mixer |
| Type: | Live, Installation |
| Channels: | 8 |
| Mono input channels, line: | 6 |
| Mono line input connectors: | 2 x 6.3 mm TS |
| Mono line input type: | electronically balanced |
| Stereo Line Input Channels: | 1 |
| Stereo Line Input Connectors: | 2 x XLR |
| Stereo Line Input Type: | electronically balanced |
| Input impedance: | (unbalanced) 25000Ohm(s), (balanced) 50000Ohm(s) |
| Max. input level: | + 21 |
| Nominal working level: | -10 dBV - +4 dBu |
| Mono output channels: | 6 |
| Mono output connectors: | 2 x 6.3 mm TS |
| Mono output type: | electronically balanced |
| Stereo output channels: | 1 |
| Stereo output connectors: | 1 x XLR |
| Stereo output type: | electronically balanced |
| Output impedance: | (unbalanced) 30Ohm(s), (balanced) 60Ohm(s) |
| Max. output level: | +22 |
| Frequency response: | 5 - 40000Hz |
| THD: | 0,0008 % |
| S/N Ratio: | 85dB |
| Controls: | Main Input Level, Level Channel 1-6, Main Link, Main Output Level, Power, Splitter/Mixer Channel 1-6 |
| Display: | Output Level Indicator (6-segment), In/Out Level Channel 1-6 (6 -segment), Power, Input Level LED Indicator (6-segment) |
| Operating voltage: | 220 V AC - 240 V AC, 50-60 Hz |
| Mains connector: | IEC power connector |
| Power consumption: | 15W |
| Fuse: | T 315 mAL, AC 250V |
| Width: | 483mm |
| Height: | 44,5mm |
| Depth: | 216mm |
| Weight: | 3kg |
| Accessories (included): | Power cord |
