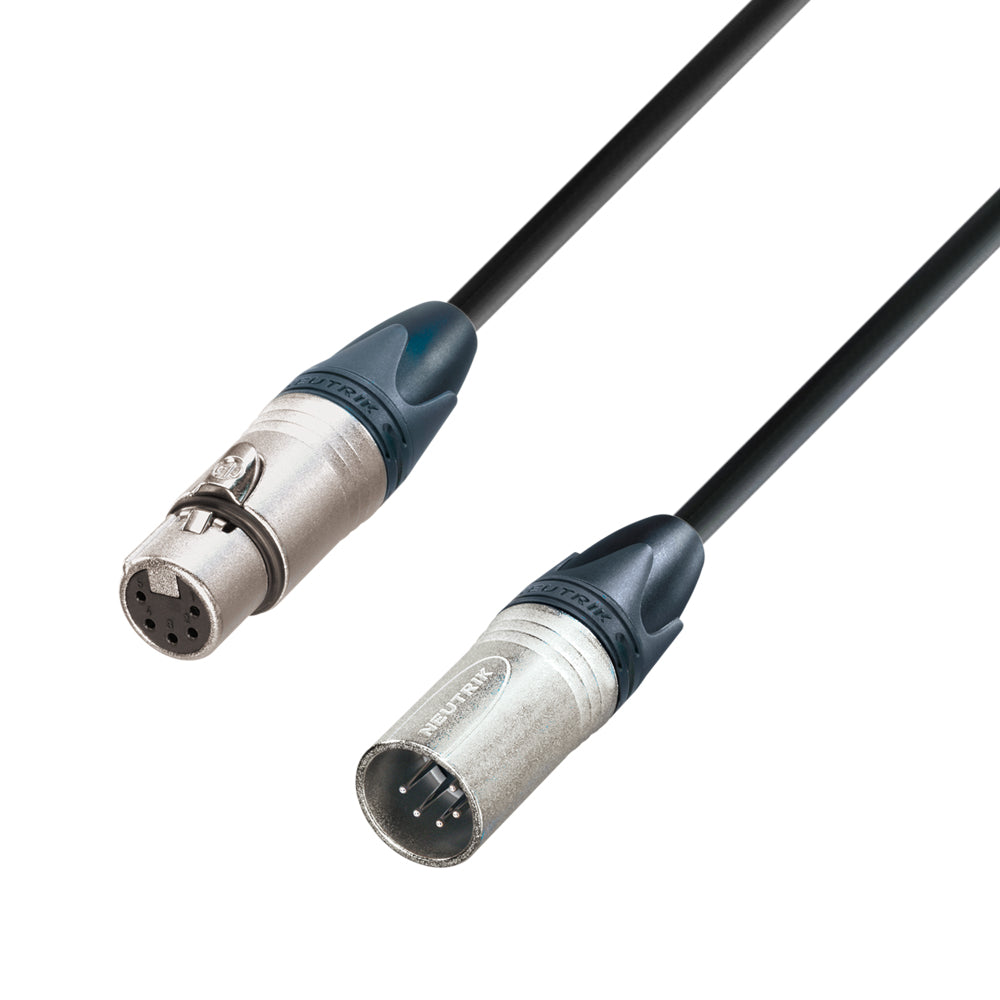

Neutrik DMX Kabel 5 Polet

Professionelt 110Ω DMX kabel med 5 polet XLR han/hun NC5FXX /NC5MXX kvalitets stik fra Neutrik.

Analogously to the three-pin variant, this data cable is equipped with five-pin plugs by Neutrik © and is thus perfect for transmission of DMX signals for lighting control.

Specifications:

• Type: DMX AES/EBU Cable
• Color: black
• Overall diameter: 6.4 mm +/- 0.1 mm
• Conductor area: 2 x 0.34 mm²
• AWG (American Wire Gauge): 22
• Conductor material: copper wire screen
• Composition of conductor: 19 x 0.15 mm
• Screen material: bare copper, OFC
• Screen: spiral wound
• Conductor resistance: 53 Ohm / km
• Capacity: < 63 pF/m
• Overall jacket material: PVC

Plugs:

• Model name NC5FXX
• Manufacturer: Neutrik
• Product type: XLR Plug
• Type: straight
• Number of poles: 5
• Gender: female
• Cable diameter: 3.5 - 8 mm
• Colour marking: -
• Contact surface: Silver
• Connection type: Solder contact
• Colour: Silver
• Housing: Cast zinc
• Clamping sleeve: POM
• Dimensions (L x Ø ): 71.5 x 19.2 mm

• Model name NC5MXX
• Manufacturer: Neutrik
• Product type: XLR Plug
• Type: straight
• Number of poles: 5
• Gender: male
• Cable diameter: 3.5 - 8 mm
• Colour marking: -
• Contact surface: Silver
• Connection type: Solder contact
• Colour: Silver
• Housing: Cast zinc
• Clamping sleeve: POM
• Dimensions (L x Ø ): 68,1 x 20,4 mm
